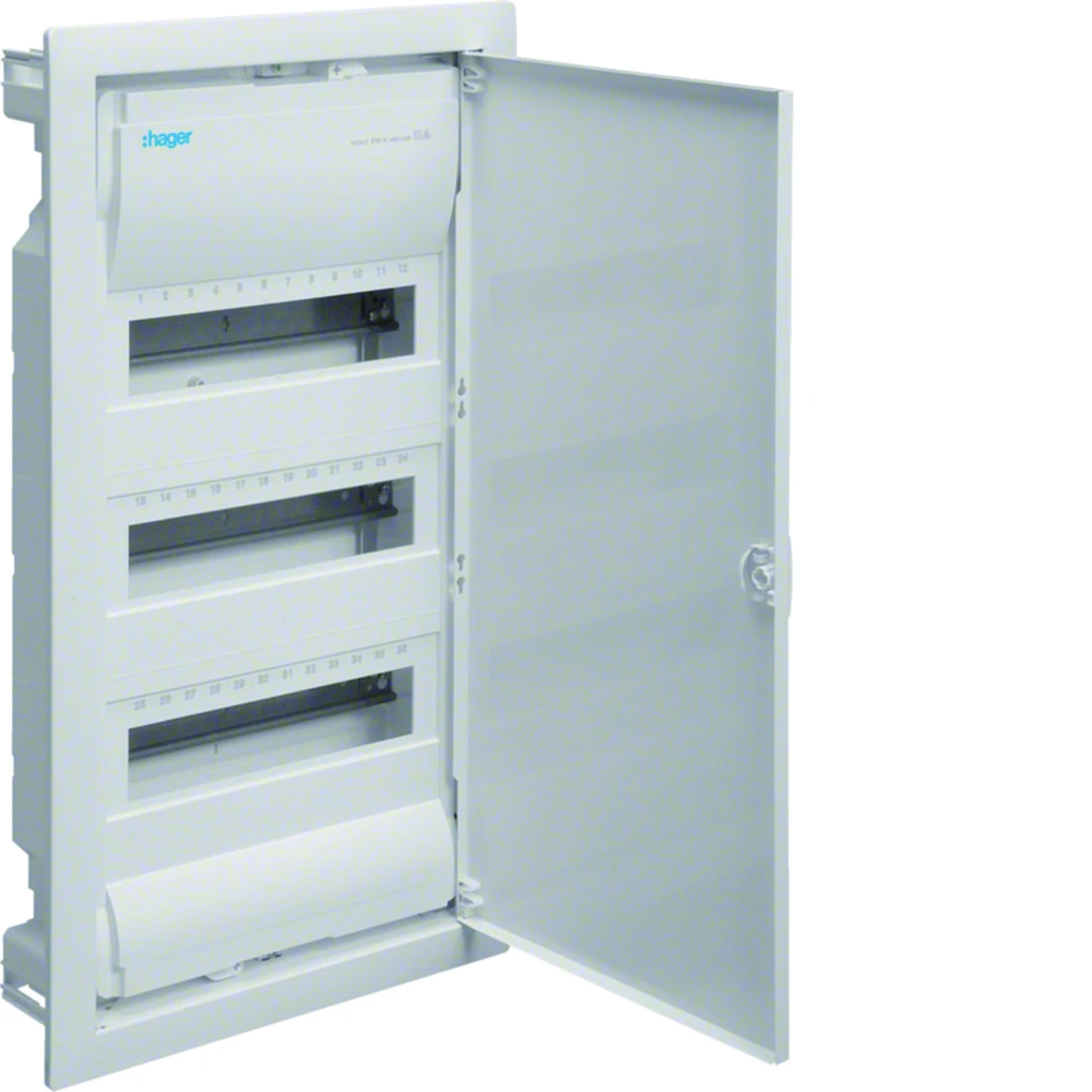

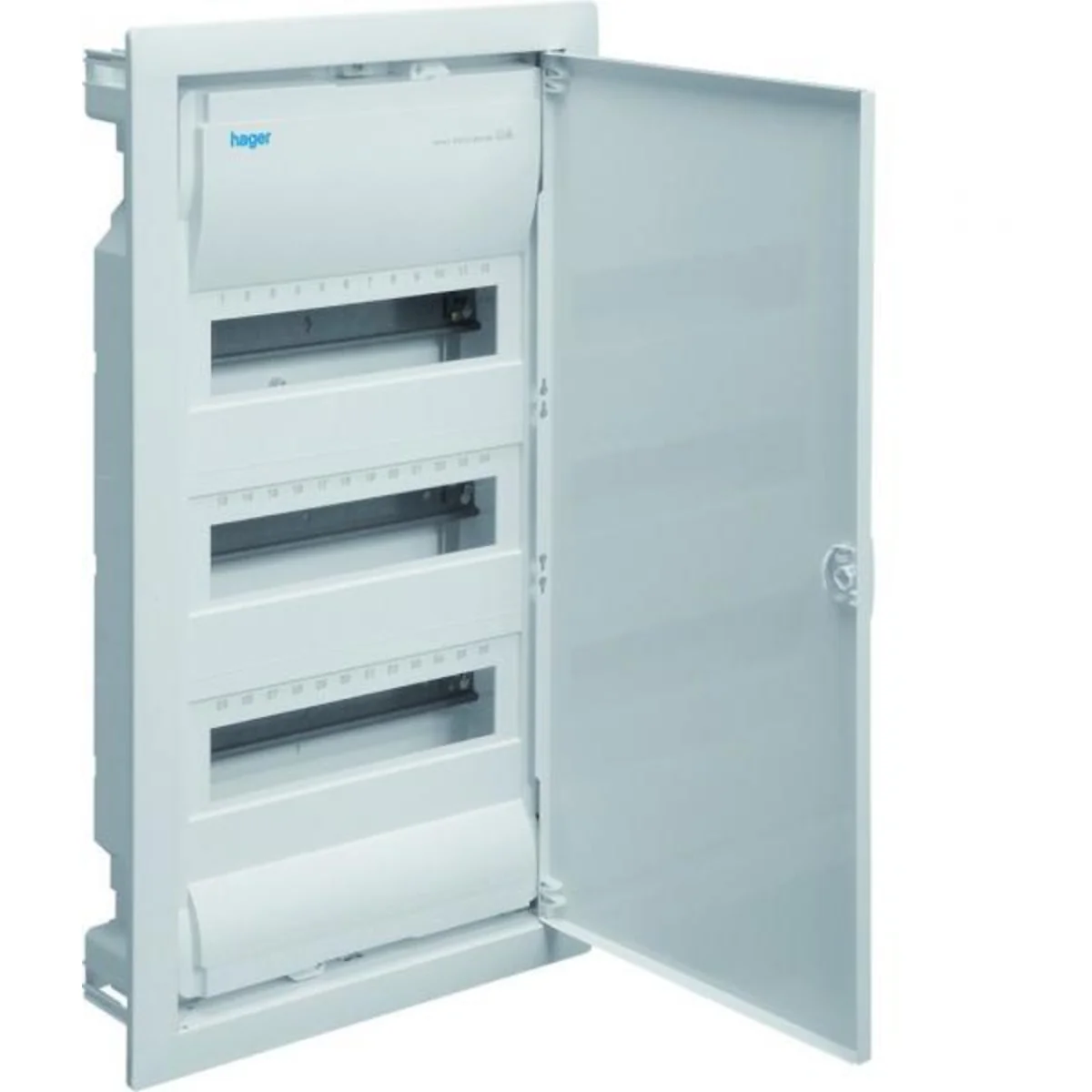

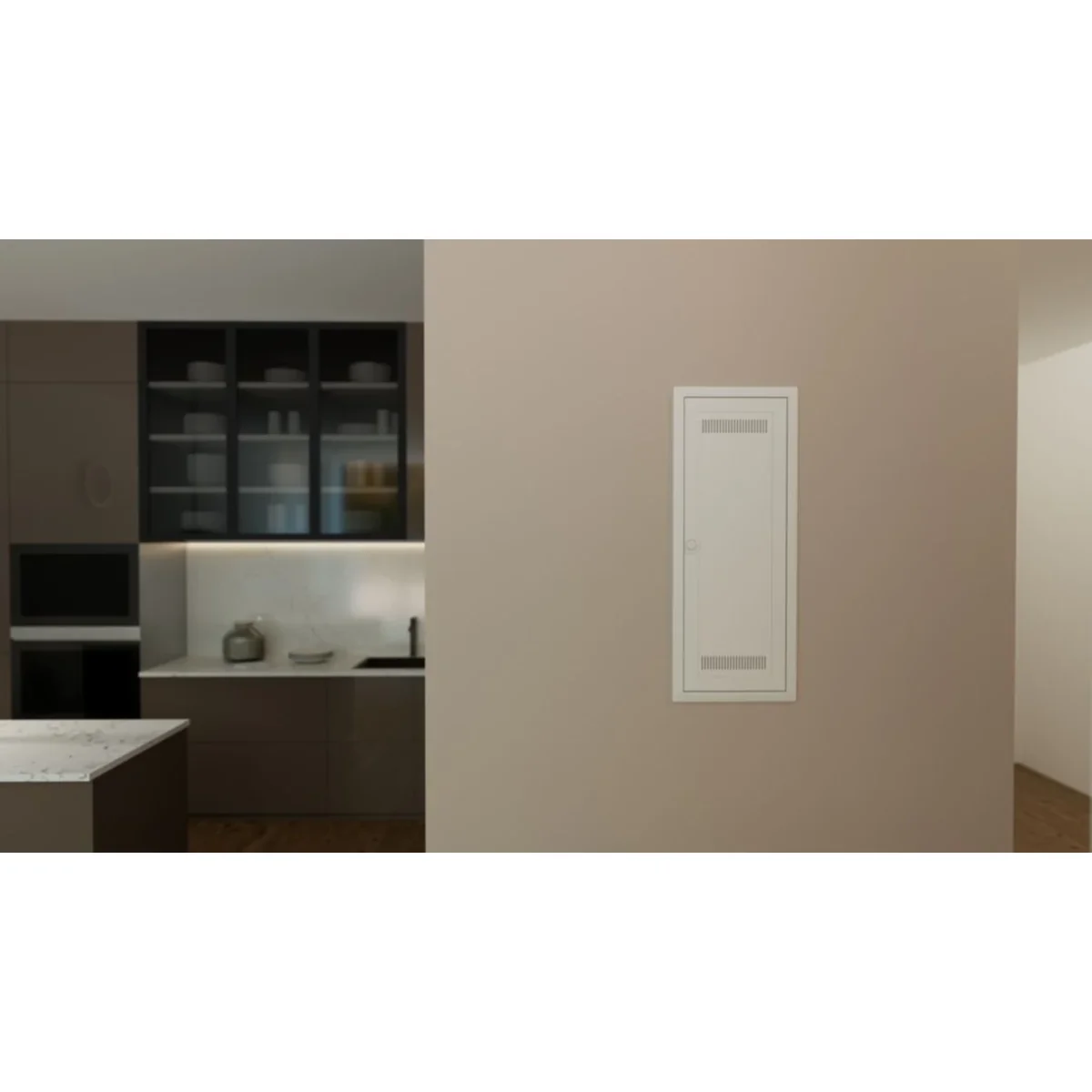

IP30 3x12 flush-mounted Volta switchgear with PE/N terminals VU36NE

local index:
RIP337HAGE
Catalog No:
VU36NE
EAN code:
3250616614529
Manufacturer: HAGER
Depth [mm]: 94
Number of doors: 1
Number of modules: 36
Price:
69,22 €
gross / pcs.
(including VAT 23%)
Last lowest price: 69,22 € gross
Base price: 150,48 € gross -54%
Delivery in 3h
Accessible 70 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

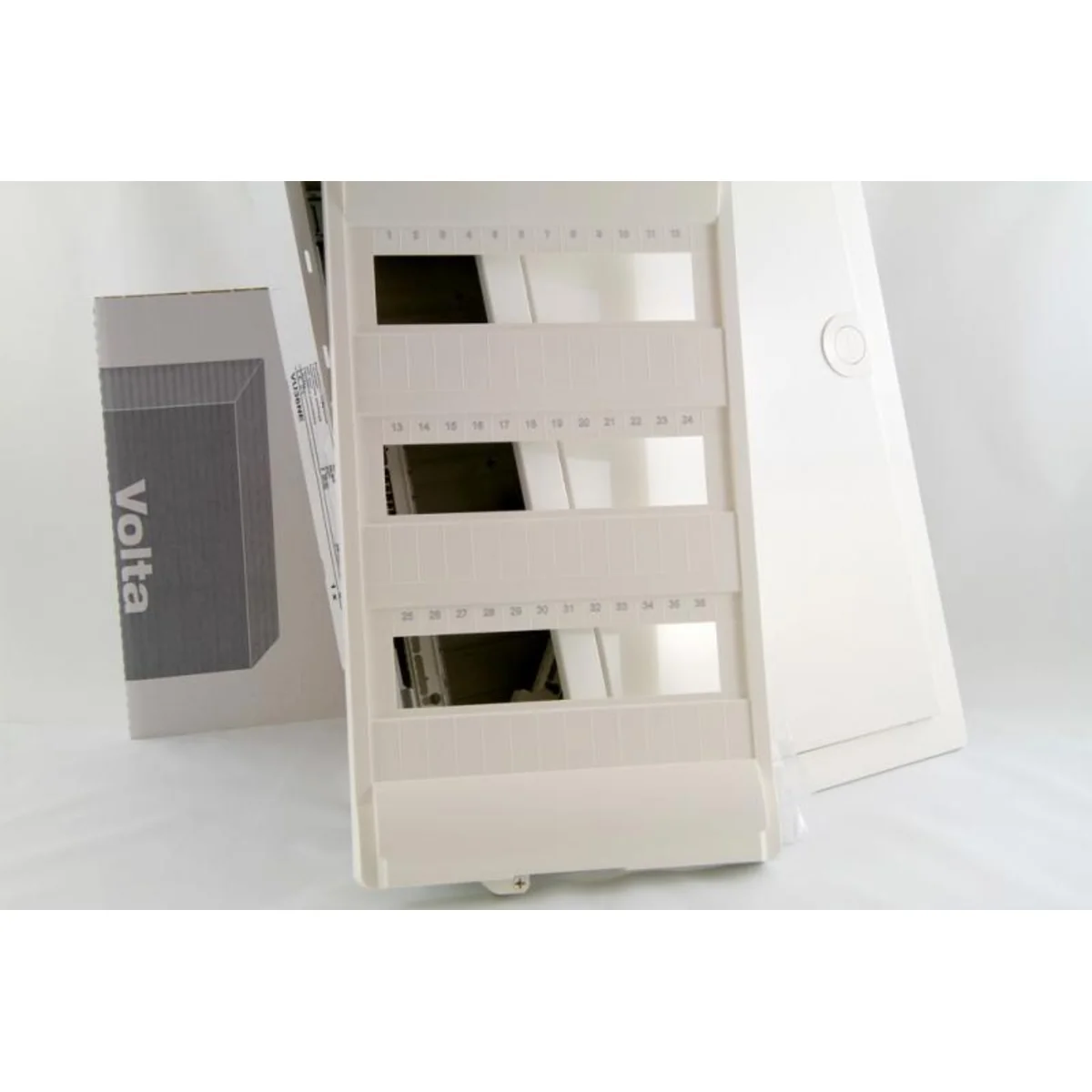

Equipment masking panels mounted with screws with the quick-assembly technique, standardly adapted for sealing

• adjustable frame masks up to 15 mm unevenness of the plaster

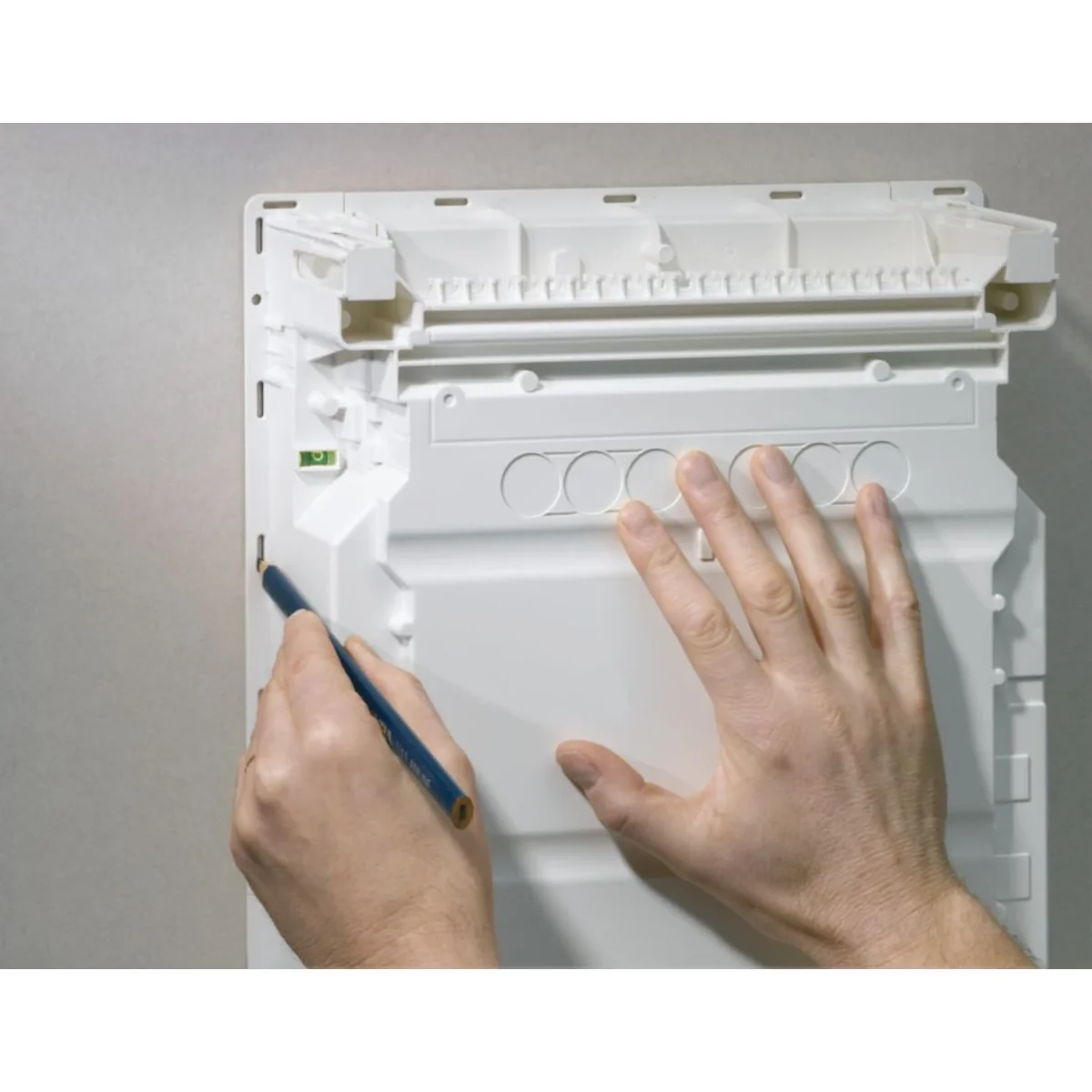

• built-in spirit level

• for devices up to 63 A

• maximum installation depth of devices 70 mm

• steel door with flush handle

• impact resistance IK07

• door hinges operated without tools; right or left door, mounted without the need to dismantle the frame

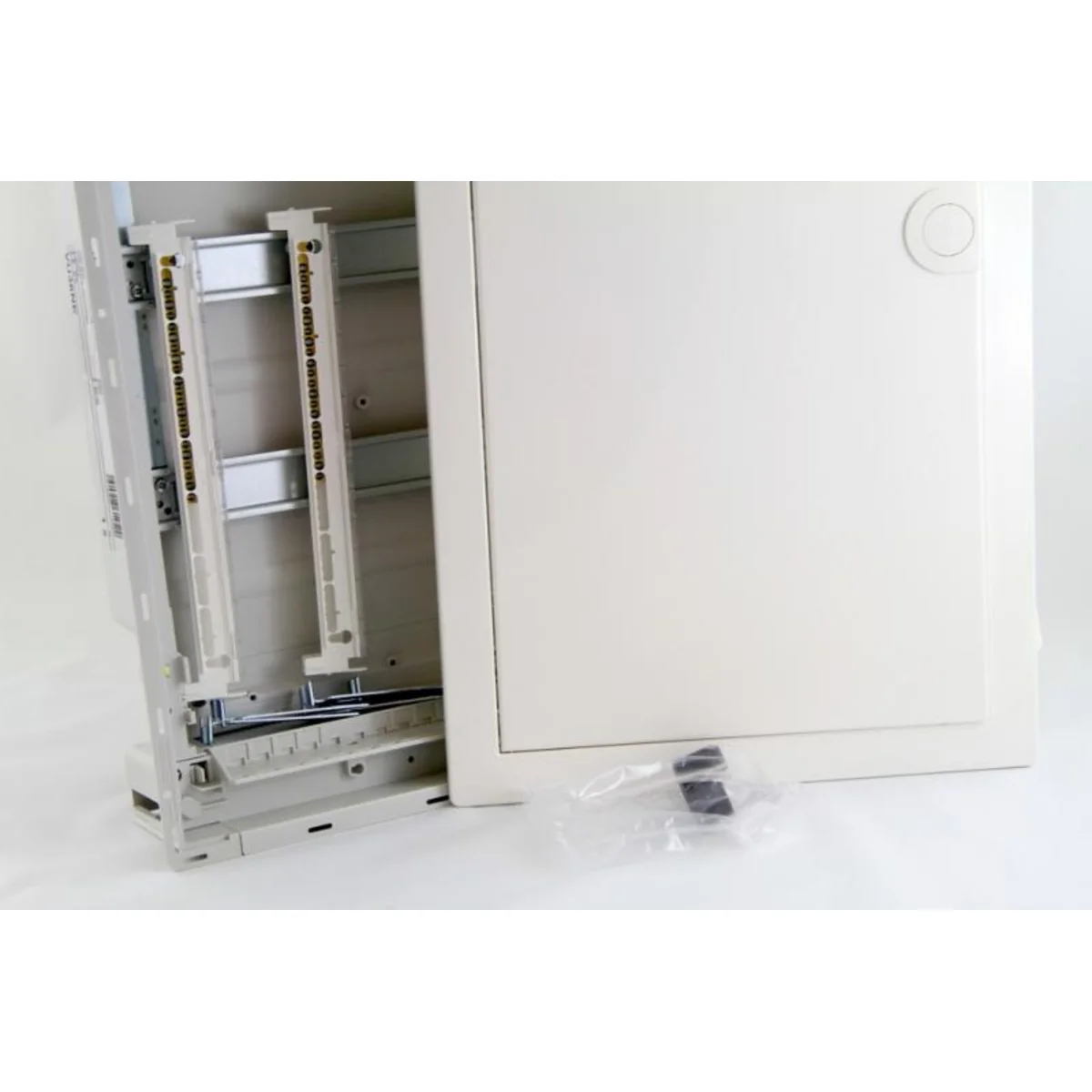

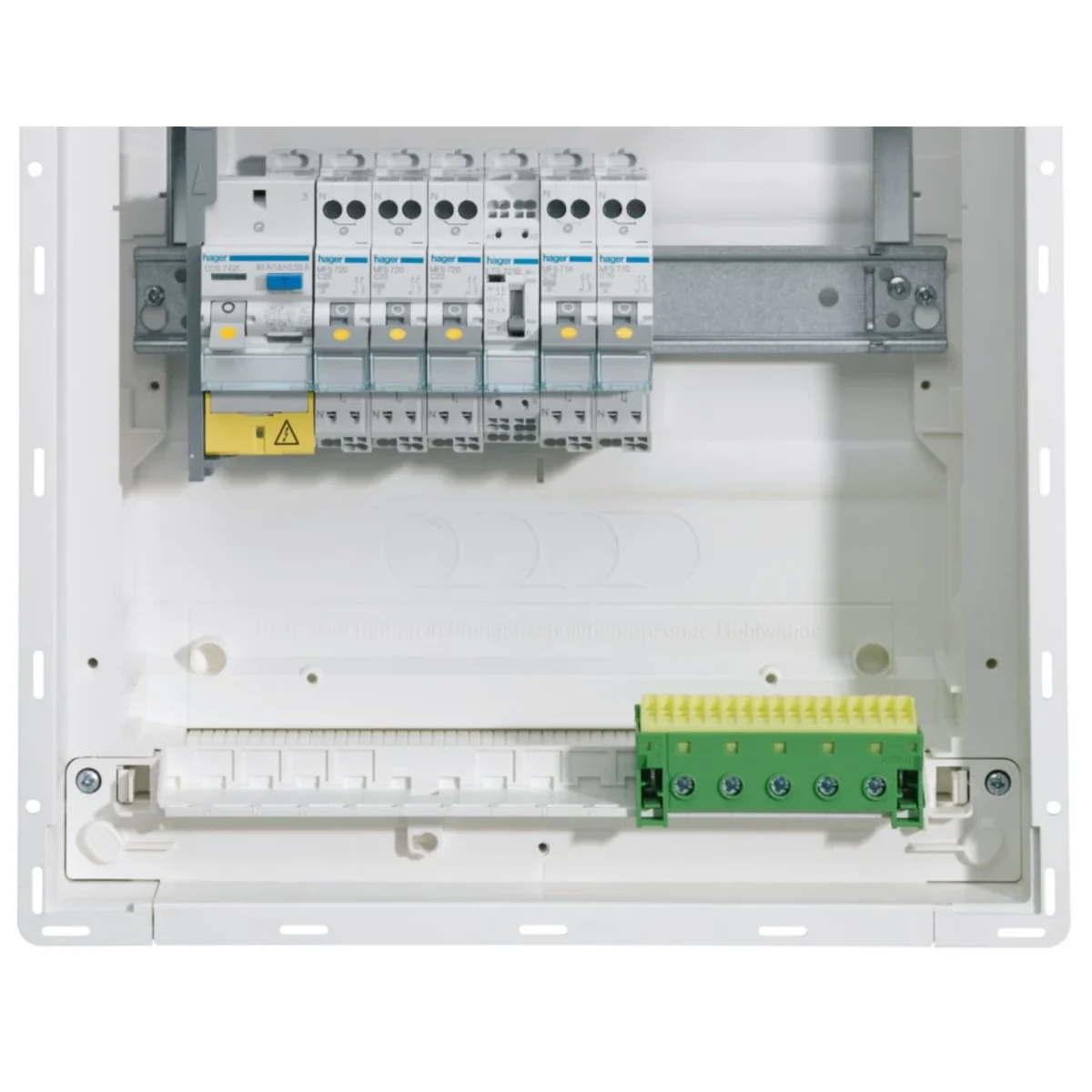

• PE/N screw terminals in the touch-proof cassette, mounted by snapping on top or bottom of the cabinet

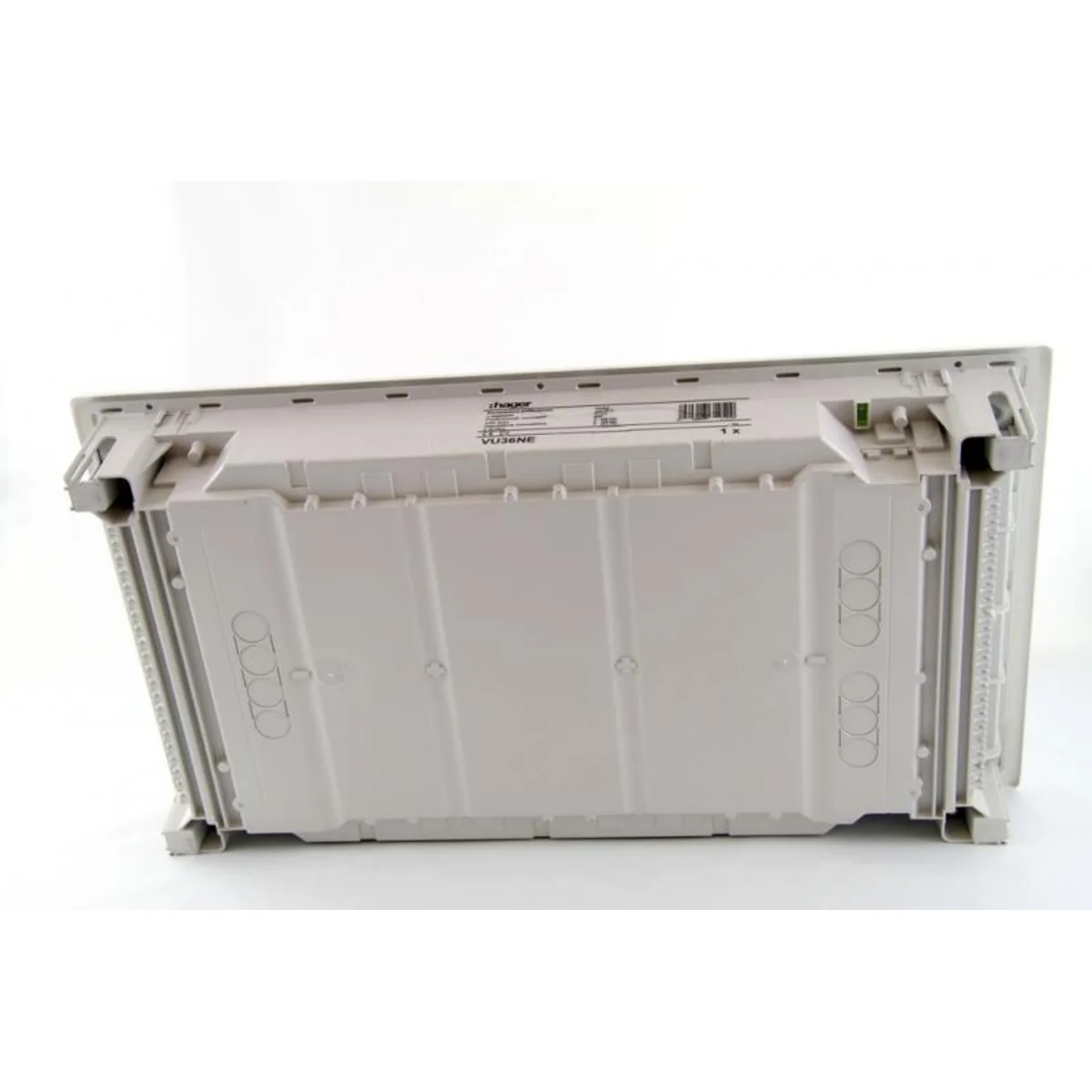

• side ribs for cable entries

• color: white, RAL 9010

• standards: DIN 43871, PN-EN 60439-3

• cover plates adapted for sealing

• suitable for use in residential buildings according to DIN 18015

• side spaces for cable routing

• as an assortment terminals for wiring residual current devices for 1, 2, 3, and 4-row switchboards

• possibility of installing a standard switchgear up to a depth of 72 mm with the use of a raised masking frame

• flammability test 650°C with the glowing method wire according to EN 60 695-2-1

• installation depth in the wall 90 mm

• II insulation class, IP30

• 4 fixing elements complete

Technical data

  • Depth [mm]
    94
  • Number of modules
    36
  • Protection class
    II
  • Material
    Plastic
  • Width [mm]
    348
  • Accurate color
    White
  • Number of doors
    1
  • Number of rows
    3
  • Color
    White
  • Level of security
    IP30
  • Height [mm]
    630
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    12
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    348 mm
  • Built-in depth
    90 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No
  • Number of rows
    3
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    630.5 mm
  • Depth
    94.5 mm
  • Inner depth
    91.5 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP30
  • Type of closure
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 39 pcs.
Weight (kg) 4,196 4,282 189,998
Width (m) 0,348 0,355 0,800
Length (m) 0,630 0,100 1,170
Depth (m) 0,094 0,640 1,200
