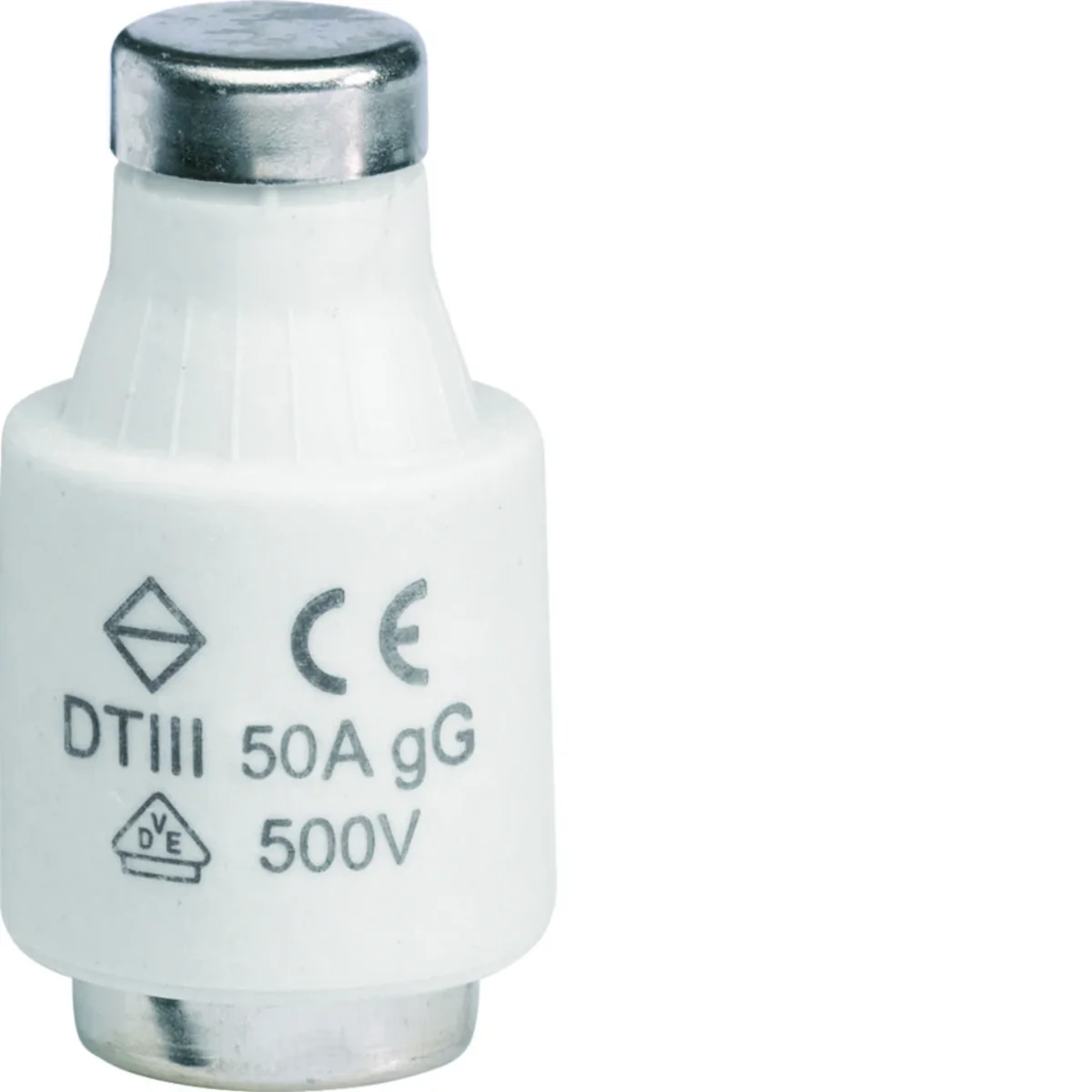

Slow-blow fuse DTIII/E33 Bi-Wtz 50A LE3350

local index:
ABI207HAGE
Catalog No:
LE3350
EAN code:
3250614124433
Manufacturer: HAGER
Length [mm]: 49
DC operating voltage [V]: 0/500/550
Rated current [A]: 50
Price:
1,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse link:

  • slow acting
  • E33
  • Bi-Wtz
  • characteristics trigger: träge (T)

Technical data

  • Length [mm]
    49
  • Rated current [A]
    50
  • Width [mm]
    28
  • Height [mm]
    28
  • Rated short-circuit breaking capacity Icn [kA]
    50
  • DC operating voltage [V]
    0/500/550
  • power loss [W]
    5.8
  • Fuse link size
    DIII
  • Rated switching voltage [V]
    0/500/550
  • PKWIU
    27.12.21.0

Other technical data

  • Construction size
    DIII
  • Rated voltage
    500 V
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Rated current
    50 A
  • Colour code
    White
  • Release characteristic
    Time-lag (T)

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 5 pcs. 250 pcs. 10000 pcs.
Weight (kg) 0,048 0,250 13,000 543,000
Width (m) 0,028 0,050 0,280 0,800
Length (m) 0,028 0,030 0,160 1,050
Depth (m) 0,050 0,135 0,290 1,200
