Modular switchgear KLV-24UPS-SF p/t IP30 2x12M super flat 178817

local index:
RIP016MOEL
Catalog No:
178817
EAN code:
4015081741465
Manufacturer: EATON
Protection class: II
Color: White
Material: Metal
Price:
46,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 27 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

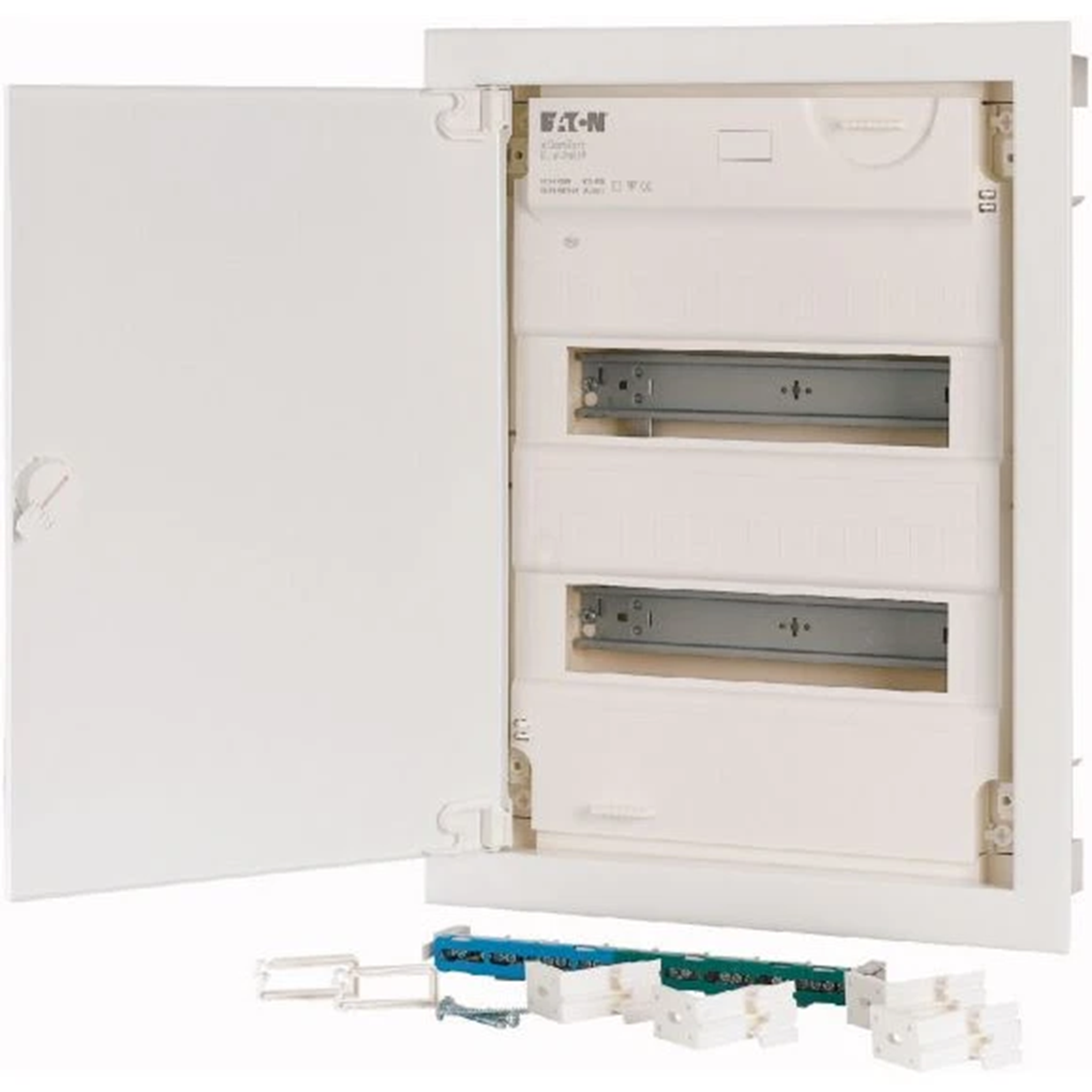

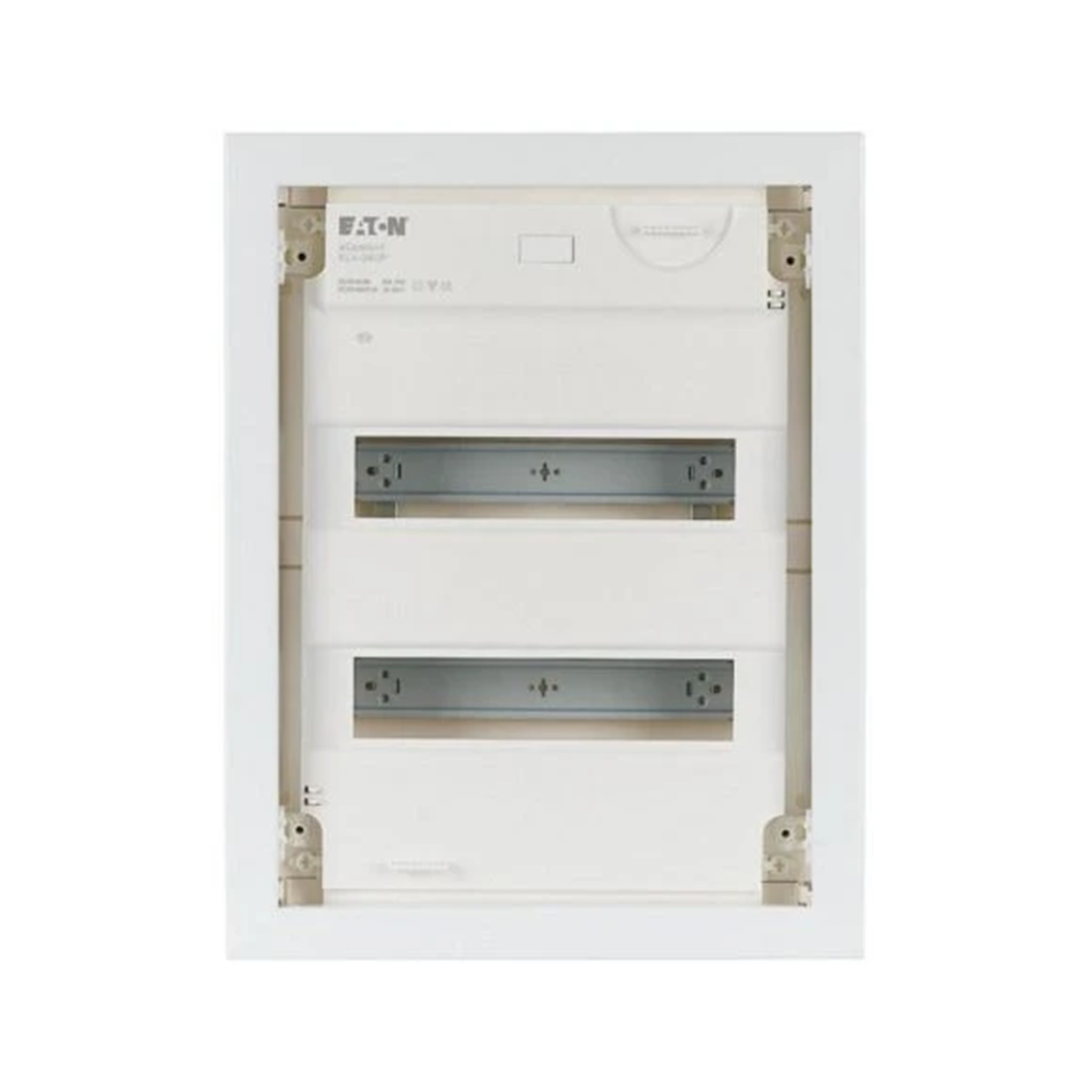

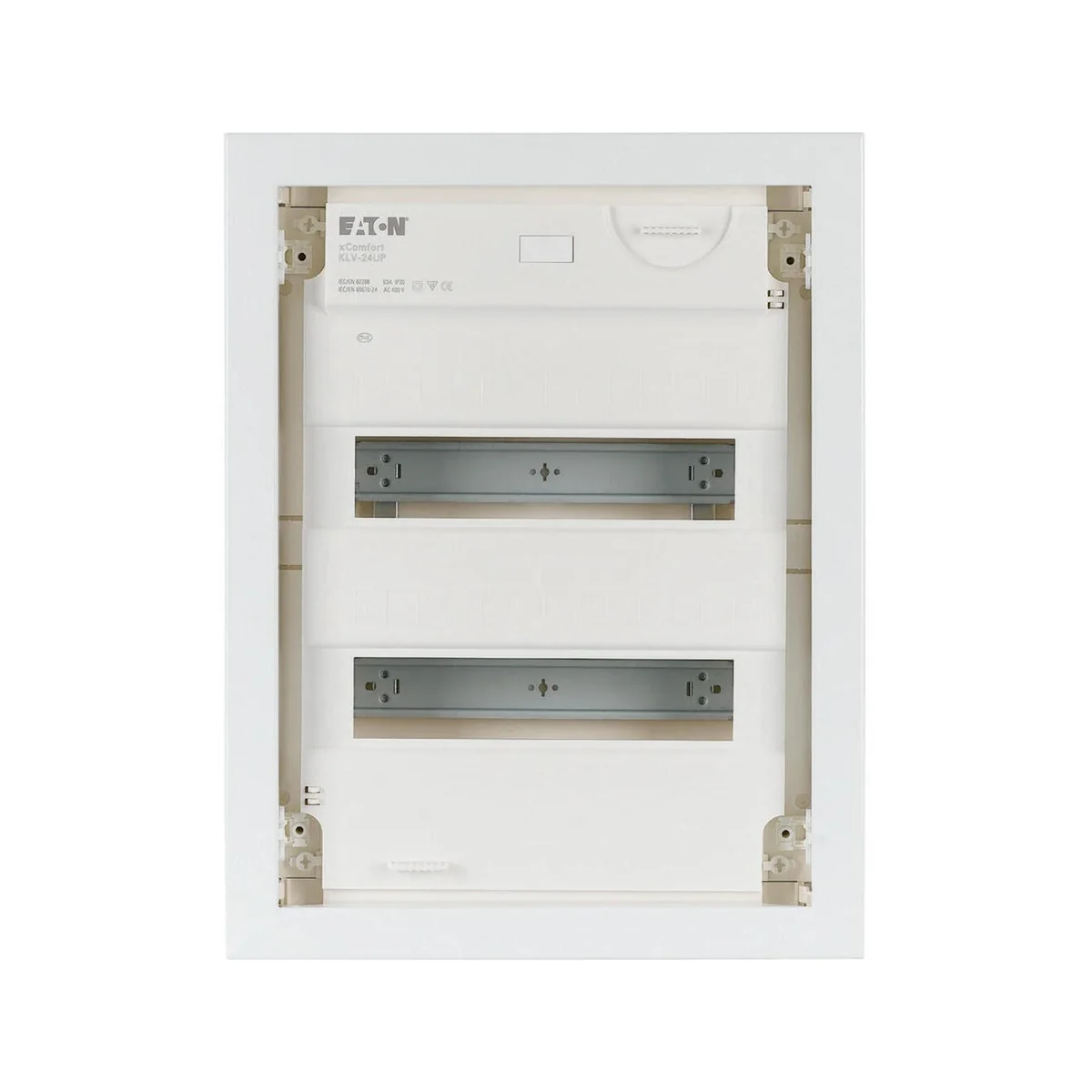

Electrical switchgear KLV-24UPS-SF flush-mounted metal with solid door is an element of the electrical network, it contains devices and components for: connecting, interrupting, controlling, protecting, measuring and regulating electric circuits, motors and mechanisms. Switchgears of the KLV series have a stable construction of a flush-mounted cassette with an integrated spirit level and can be installed in masonry as well as plaster walls. The set with the switchgear includes N/PE terminal strips. The entire KLV series complies with the IEC/EN 60670-24 and IEC/EN 62208 and IEC/EN 61439-3 standards.

Parameters:

  • number of rows: 2< /li>
  • Glow wire test (GWT): 650 ºC
  • Installation depth: 88 mm
  • Protrusion depth: 75 mm

Features:

  • N/PE terminal strips
  • self-extinguishing plastic resistant to excessive overheating even up to 650°C, hot wire test acc. IEC/EN 62208
  • super flat

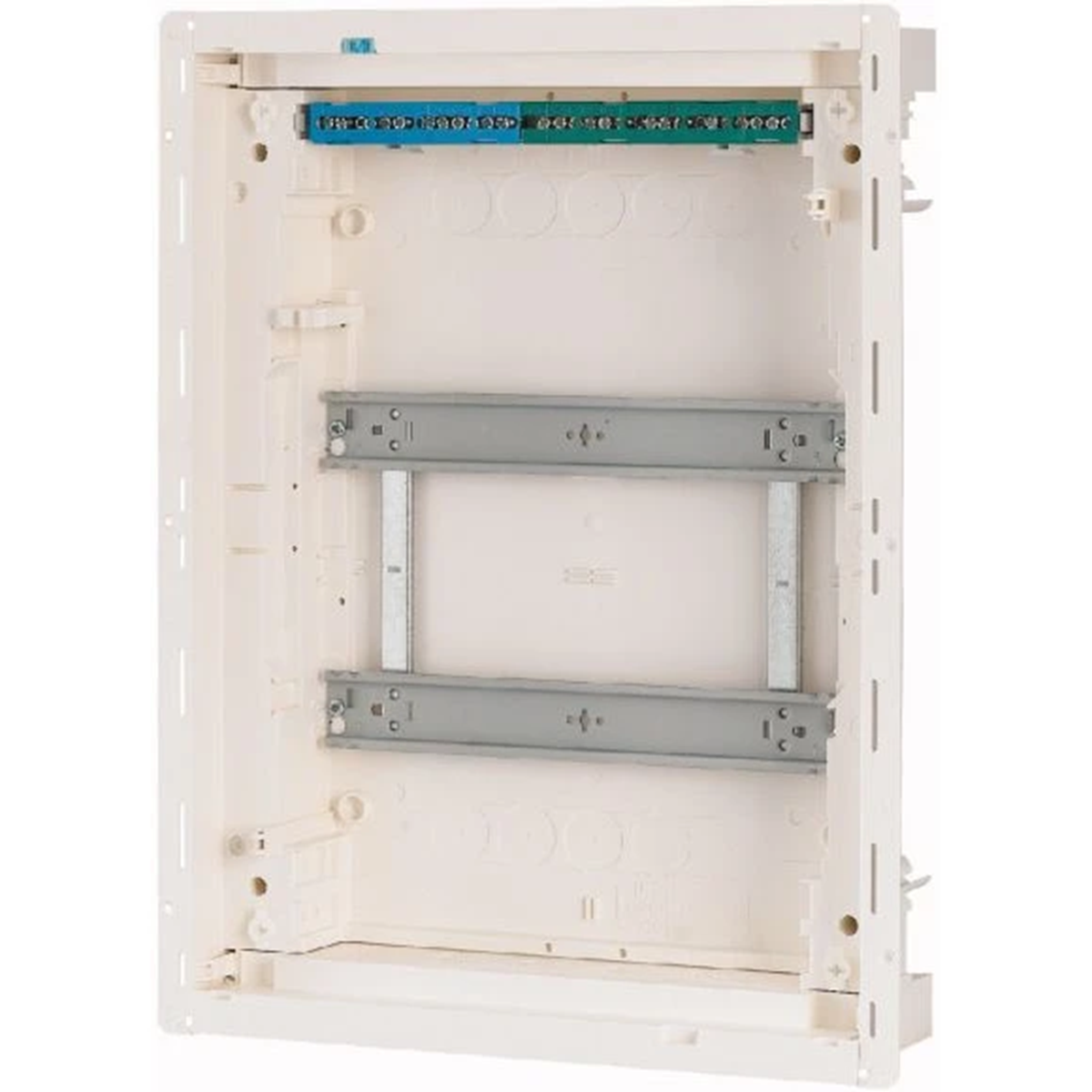

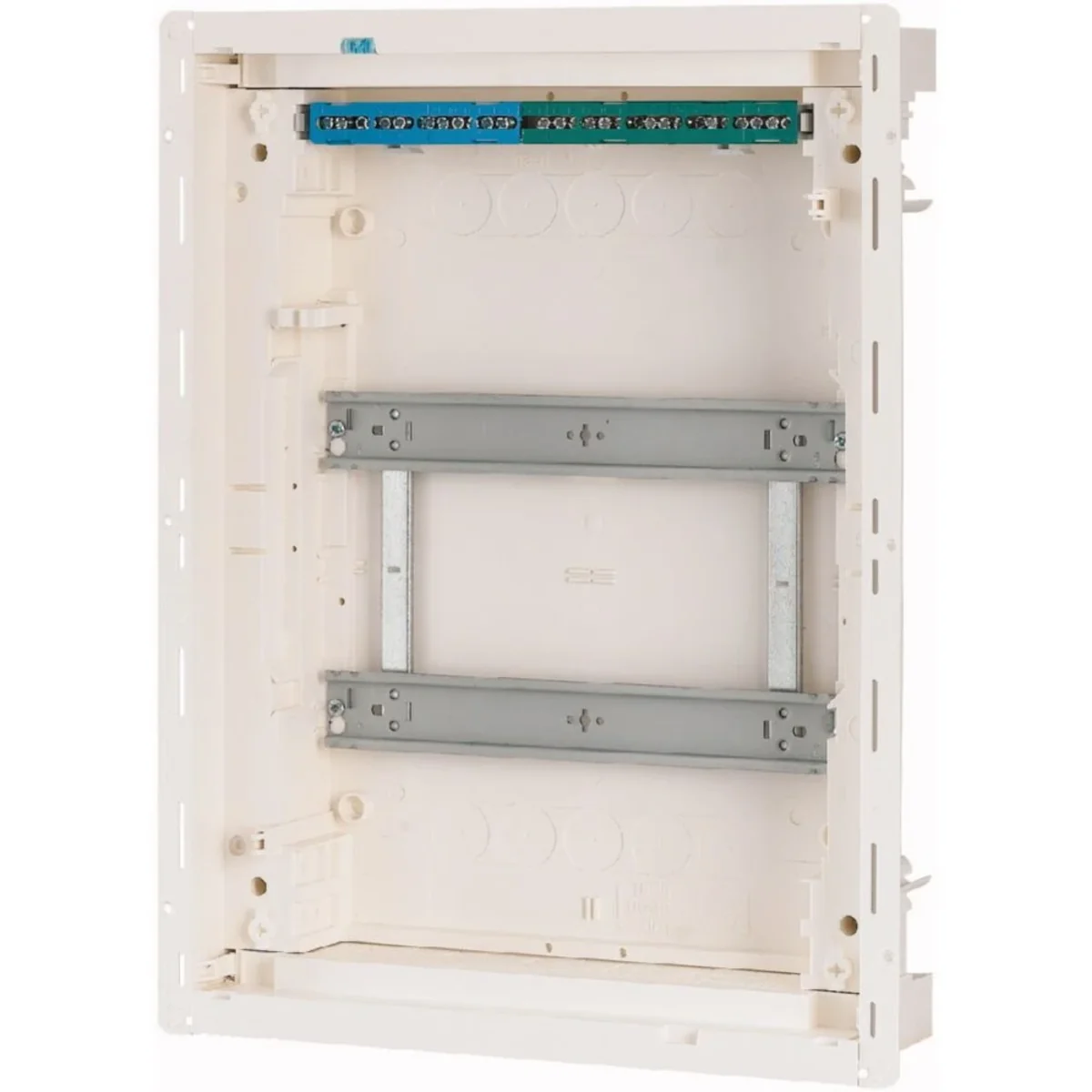

  • stable construction of flush-mounted cassette with integrated spirit level
  • galvanized DIN rail, stable construction with crossbars 125 mm row spacing
  • easy to change the position of the door
  • holes for quick mounting on the wall
  • compensation of plaster unevenness
  • weaknesses for cable entry from each side
  • < li>low halogen

Technical data

  • Protection class
    II
  • Material
    Metal
  • Level of security
    IP30
  • Degree of mechanical protection
    IK05
  • Color
    White
  • Installation
    Flush-mounted
  • Dimensions (length x width x height) [mm]
    465x360x100
  • Number of modules
    24

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    12
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    360 mm
  • Built-in depth
    88 mm
  • Built-in width
    0 mm
  • Earthing terminal block
    No
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • Colour
    White
  • Degree of protection (IP)
    IP30
  • Type of closure
    Other
  • Number of rows
    2
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    465 mm
  • Depth
    100 mm
  • Built-in height
    0 mm
  • Inner depth
    75 mm
  • Neutral terminal block
    No
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9016
  • With lock
    No
  • Signal passing door
    No

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 60 pcs.
Weight (kg) 3,680 -
Volume (m3) 0,017 -
Width (m) 0,360 -
Length (m) 0,100 -
Depth (m) 0,465 -
