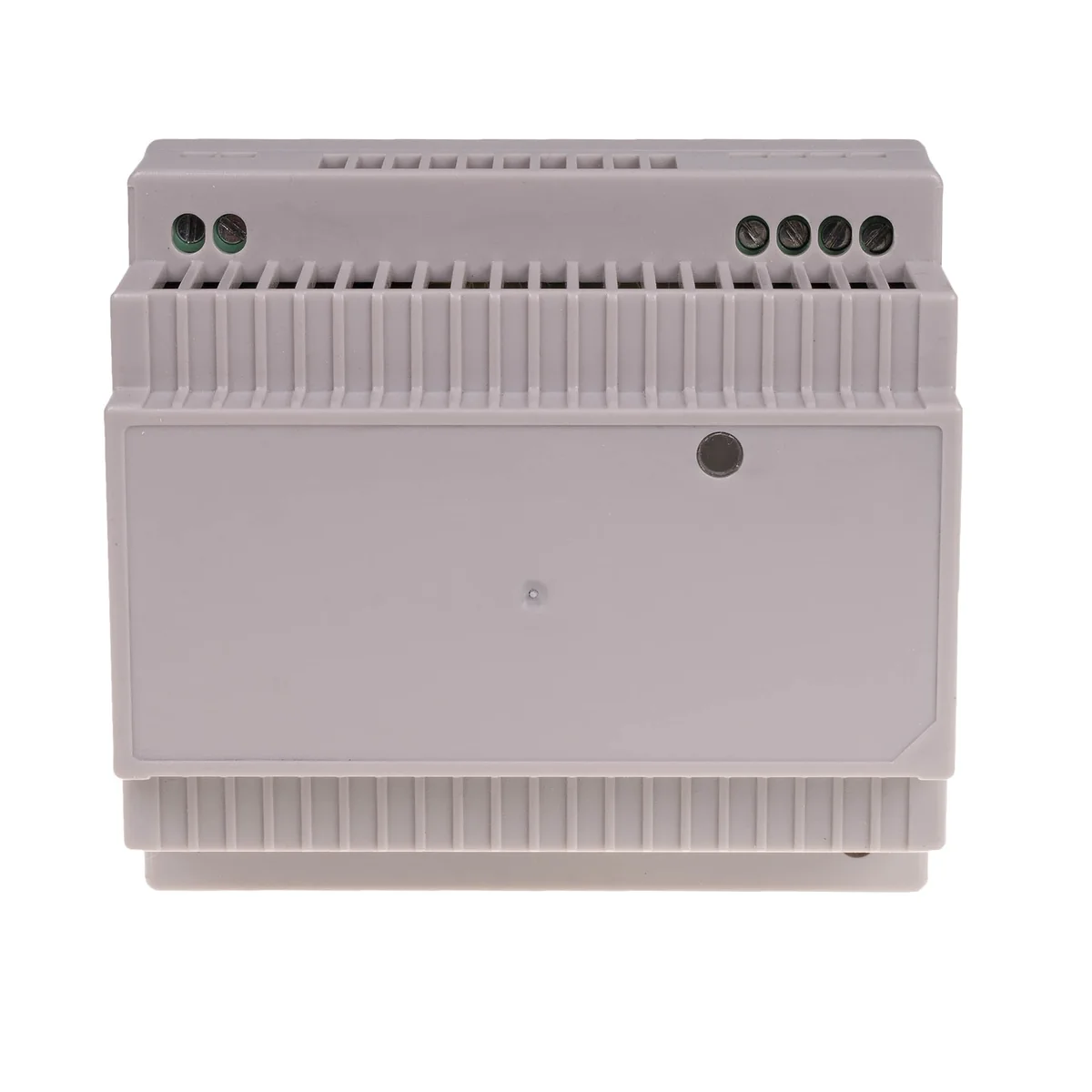

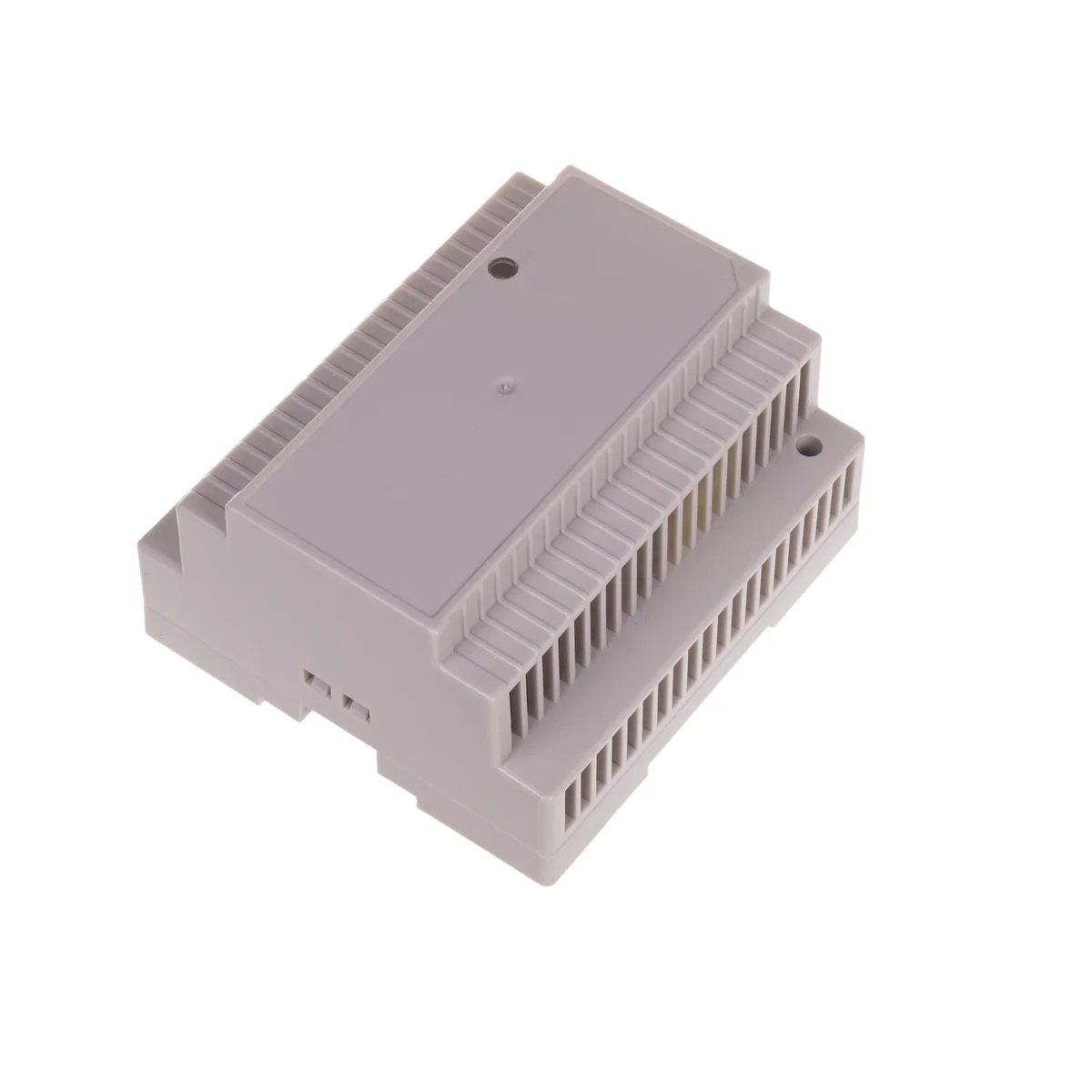

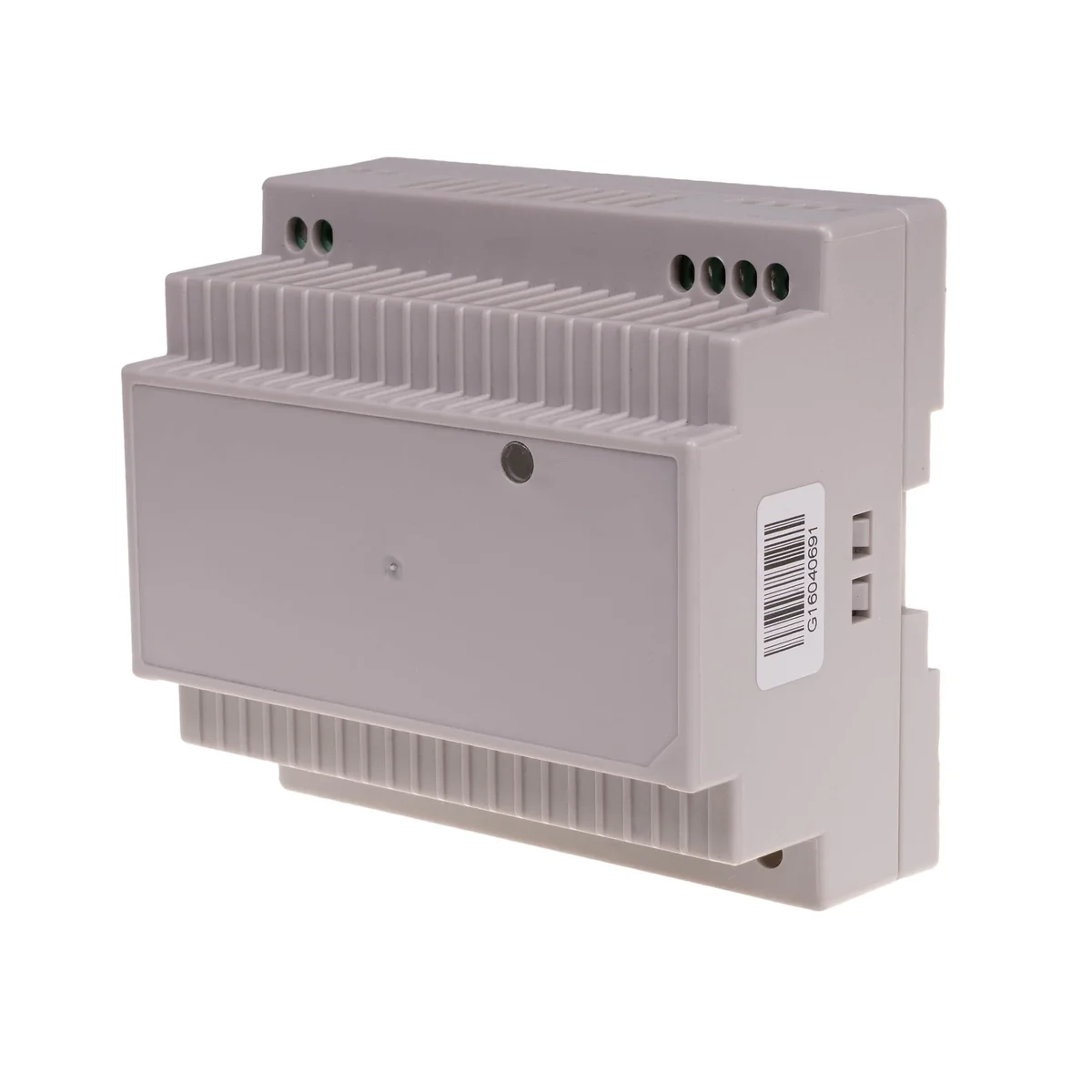

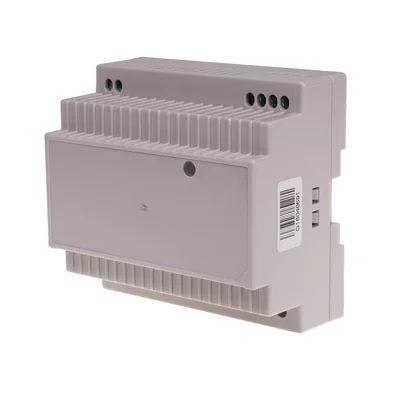

Switching power supply 12V DC 8.3A 100W ZI-100-12V

Switching power supply from the F&F manufacturer. The product catalog number is ZI-100-12V. It is intended for powering electrical and electronic devices that require a stable, filtered supply voltage independent of mains voltage changes.

Securities:

• short-circuit - in case of overload or short-circuit , the output voltage is automatically disconnected. The PSU cyclically tries to switch on the power supply and when the cause of the protection actuation disappears, the rated supply voltage will be restored.
• overvoltage - cutting off the output voltage. The return to normal operation is possible only after turning the power off and on again.
• thermal - cutting off the output voltage. The voltage will be restored when the temperature reaches a safe value again.

Features:

• Output voltage stabilization - when changing the output voltage: ±1%.
• Stabilization of the output voltage - when changing the output current: ±1%.
• Ripple and noise: 240 mVp- p.
• Overload: 110÷160% Iout
• Overvoltage protection threshold: 18÷23 V.
• Thermal protection threshold: 135÷165°C.
• Dimensions: 6 modules (100 mm).
• Mounting: on 35 mm rail.
