AC/DC power supply KSE 12024 230/ 24VDC 5A 18924-9989

Внутрішній артикул:
AUU004BREV
№ каталоговий:
18924-9989
Код EAN:
5907812716295
Виробник: BREVE
number of phases: 1
Power [W]: 120
Installation: On the TH-35 rail
Бестселери
Ціна:
108,94 zł
gross / шт.
(з ПДВ 23%)
Найнижча ціна від 30 днів до знижки: 99,04 zł gross
Ціна виробника: 143,53 zł gross
Доставка за 3 години
Доступний 25 шт.
Самовивіз через 1 год
Кількість шт.
(багаторазовий:
1
)
Додати до запиту на пропозицію
Додати в буфер обміну
Роздрукувати

Опис товару

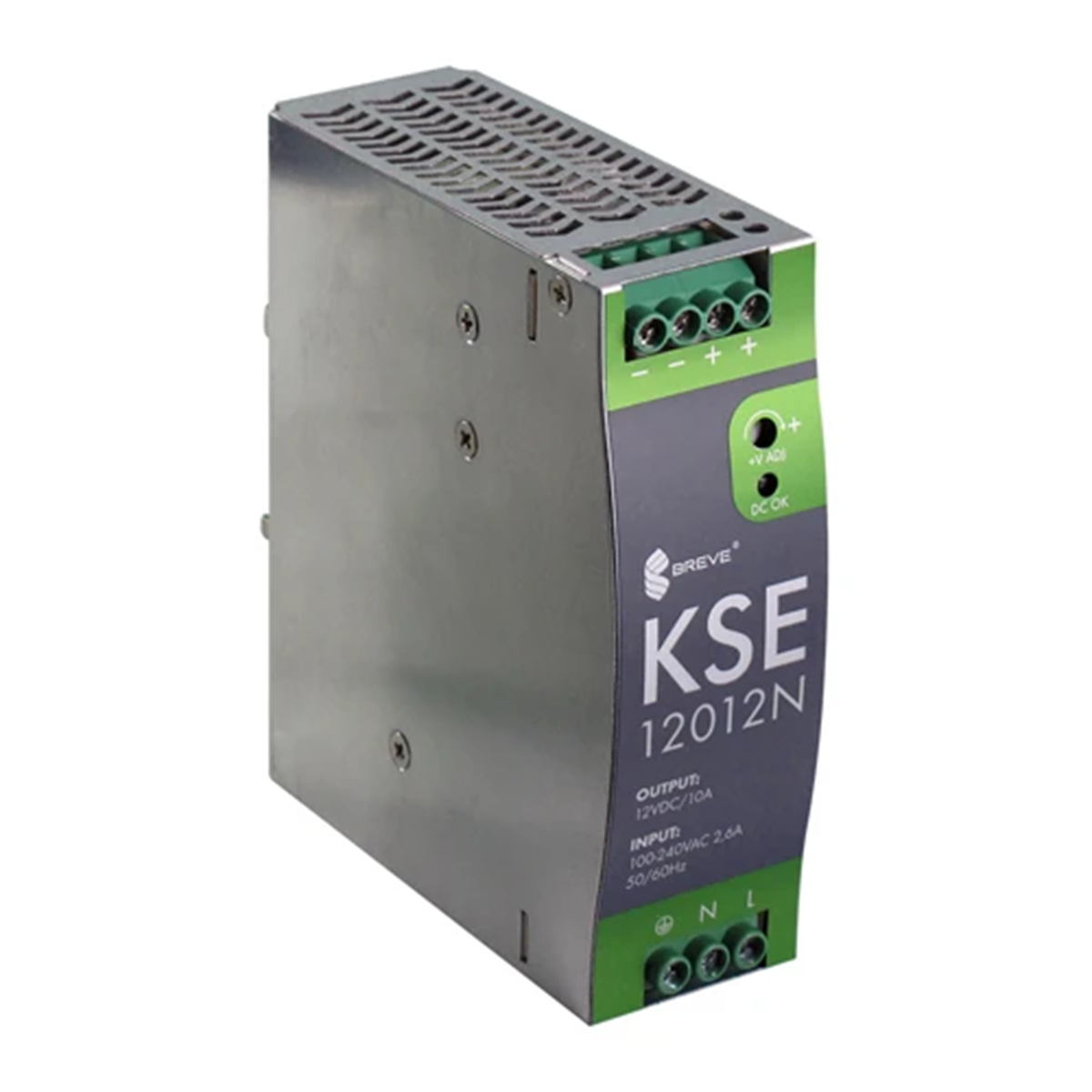

Stabilized, industrial switched-mode power supplies for mains voltage in a solid metal housing for use in industrial automation systems for mounting on a DIN T-35 rail. Equipped with a PFC power factor improvement system, LED signaling of switching on and overload, cooled by natural air flow. Protections: short-circuit, overload, overvoltage, thermal. Made in the degree of protection IP20. Maximum ambient temperature 50°C. Complies with EN55024&EN61000-6-2 safety standards and EN55011&EN55022 EMC directive.

Технічні дані

  • number of phases
    1
  • Installation
    On the TH-35 rail
  • Rated current [A]
    5
  • Level of security
    IP20
  • Efficiency [%]
    87
  • Short circuit resistance
    Yes
  • Power [W]
    120
  • DC output voltage [V]
    24
  • Family
    KSE
  • Dimensions [mm]
    113x40x125.2
  • AC input voltage [V]
    96-264

Інші технічні дані

  • Voltage type (supply voltage)
    AC
  • Max. output current 1
    5 A
  • Short-circuit-proof
    Yes
  • Output voltage stabilized
    Yes
  • Stabilized
    Yes
  • Rail mounting possible
    Yes
  • Width
    90 mm
  • Depth
    130 mm
  • 1st secondary output voltage DC
    24 ... - V
  • Secondary voltage adjustable
    Yes
  • Rated supply voltage AC 50 Hz
    230 ... - V
  • Power output
    120 W
  • Type of electric connection
    Screw connection
  • Modular version
    Yes
  • Height
    75 mm
  • Degree of protection (IP)
    IP20

Інформація про виробника

  • Виробник
    BREVE-TUFVASSONS Sp. z o.o.
  • Адреса
    93-347 Łódź Postępowa 25/27 Polska
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Paczka Karton
Кількість 1 шт. 1 шт. 20 шт.
Вага (кг) 0,650 - 13,400
Ширина (м) 0,113 0,145 -
Довжина (м) 0,125 0,140 -
Глибина (м) 0,040 0,058 -
