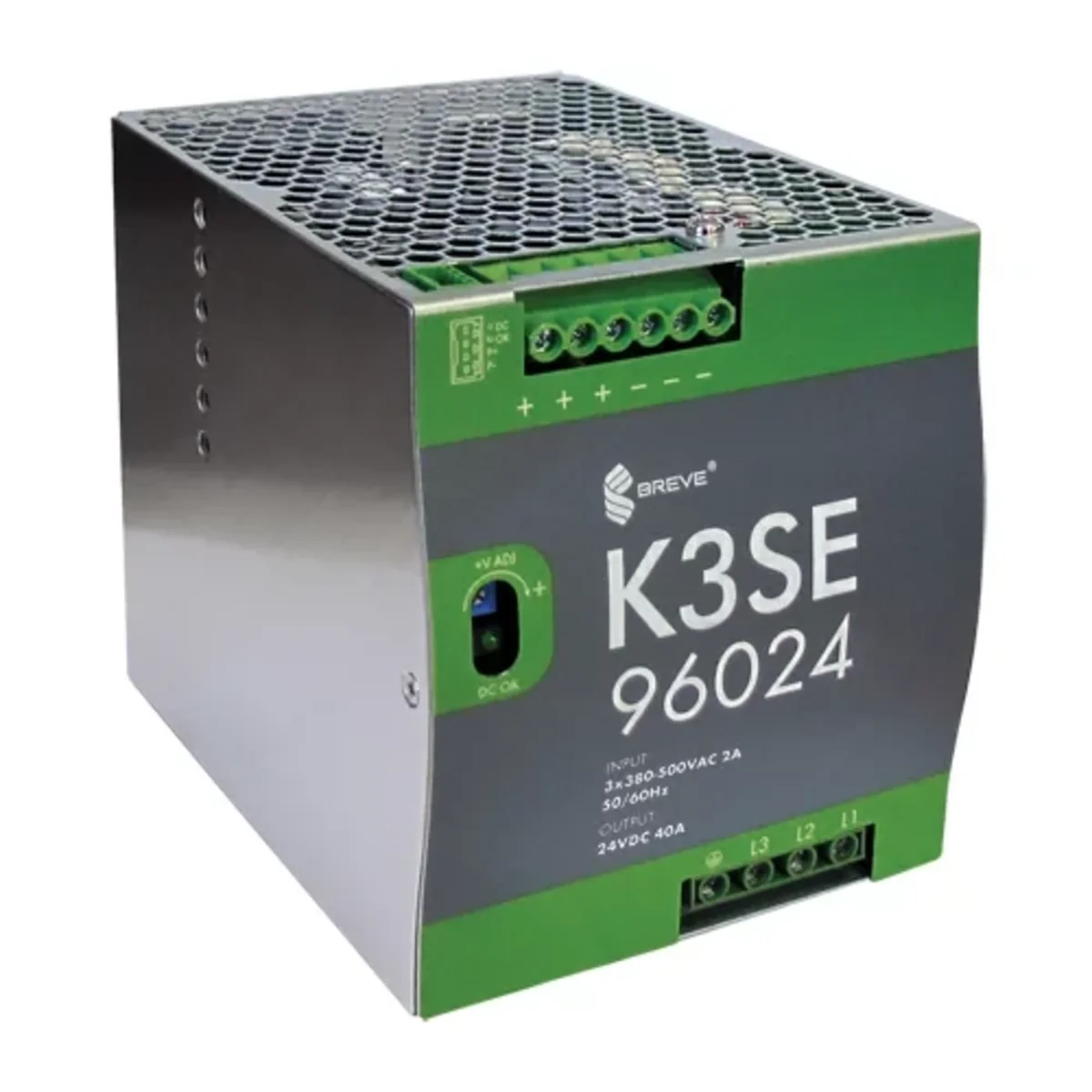

Switching power supply stabilized K3SE 96024 3x400/24VDC 40A with protection and voltage regulation IP20 TH-35 17000-1015

Name: Switching power supply stabilized K3SE 96024 3x400/24VDC 40A with protection and voltage regulation IP20 TH-35
Brand: BREVE
SKU: AUU030BREV
Price: 190.49 PLN
Availability: InStock

local index:

AUU030BREV

Catalog No:

17000-1015

EAN code:

5907812753191

Switching power supply stabilized K3SE 96024 3x400/24VDC 40A with protection and voltage regulation IP20 TH-35

Click on the photo to enlarge

Manufacturer: BREVE

number of phases: 3

Power [W]: 960

Installation: On the TH-35 rail

See full description

Price:

190,49 €

gross / pcs.

(including VAT 23%)

Accessible 2 pcs.

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Stabilized, industrial switching power supplies for mains voltage intended for use in industrial automation systems. Equipped with LED switch-on and overload indication, cooled by natural air flow. Mounted on DIN T-35 rail. Protection: thermal, short circuit, overload and overvoltage. Made to IP20 protection class.

Technical data

number of phases

3
Installation

On the TH-35 rail
Rated current [A]

40
Level of security

IP20
Efficiency [%]

94
Short circuit resistance

Yes

Power [W]

960
DC output voltage [V]

24
Family

K3SE
Dimensions [mm]

150x110x125.2
AC input voltage [V]

3X380-500

Other technical data

Voltage type (supply voltage)

AC
Secondary voltage adjustable

Yes
Output voltage stabilized

Yes
Type of electric connection

Screw connection
Modular version

Yes
Height

110 mm
Degree of protection (IP)

IP20

Max. output current 1

40 A
Short-circuit-proof

Yes
Stabilized

Yes
Rail mounting possible

Yes
Width

150 mm
Depth

125.2 mm

Manufacturer details

Manufacturer

BREVE-TUFVASSONS Sp. z o.o.
Address

93-347 Łódź Postępowa 25/27 Polska
E-mail

handel@breve.pl

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	6 pcs.
Weight (kg)	2,550	-	15,800
Width (m)	0,150	0,195	-
Length (m)	0,125	0,175	-
Depth (m)	0,110	0,155	-
