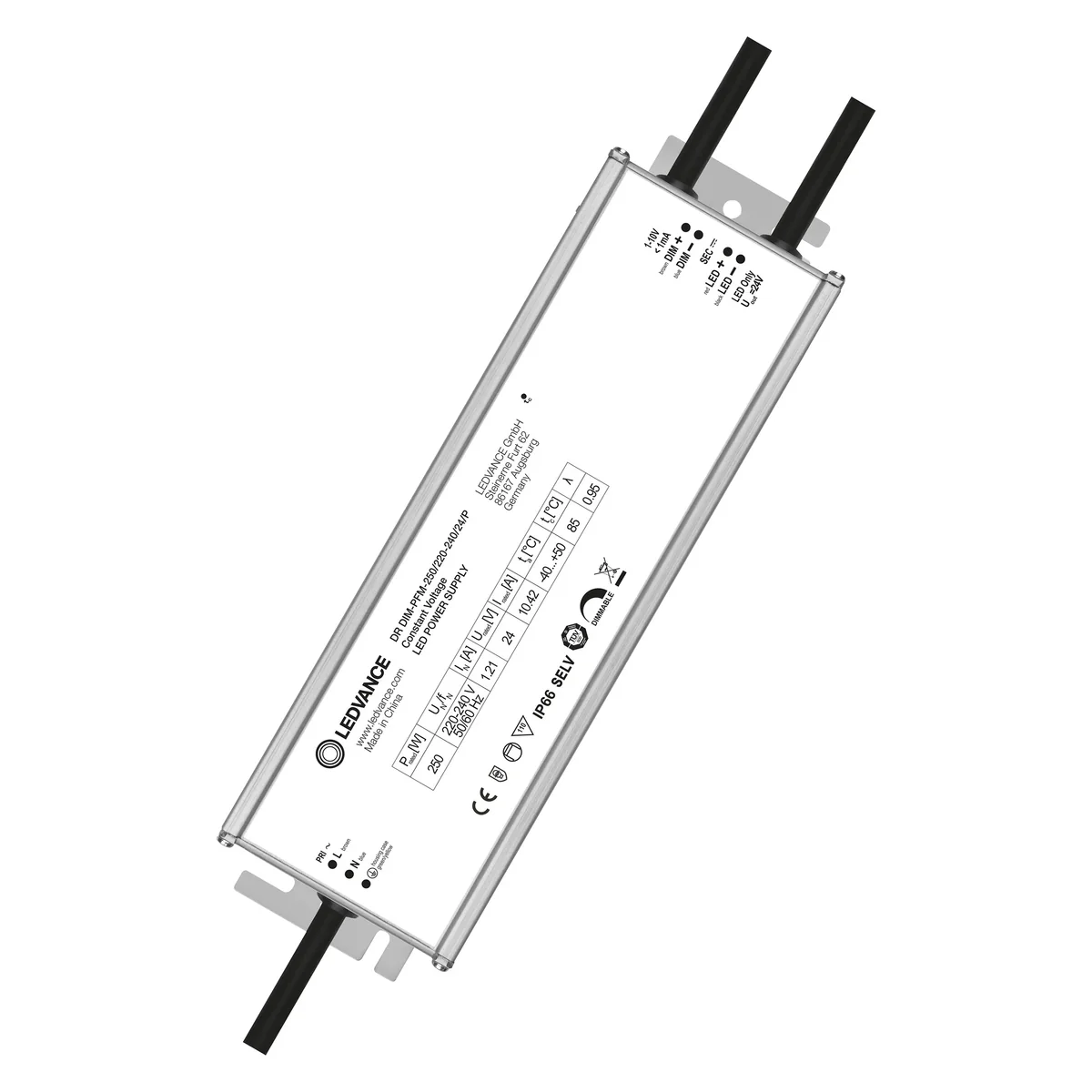

Name: LED DRIVER 1-10 V DIM OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use with 1-10V 250W 230/24V IP66 interface
Brand: LEDVANCE
SKU: AUD119LEDV
Price: 212.38 PLN

Product benefits

Perfect match for universal 24V LED strips
Very stable output power
Quick and easy installation thanks to internal wiring
High efficiency and reliability
Can be installed in very cold or hot environments

Application area< /strong>

Suitable for indoor and outdoor installations
Lighting for facades and buildings
Perfect solution for lighting public spaces
Bathrooms, kitchens and outdoor spaces
Offices, shopping malls, hospitals, restaurants and hotels

Product features

Adjustable with 1...10V analog regulator
10...100% adjustable
Electrical short circuit and overload protection

Length [mm]

253
Initial starting current [A]

67
Level of security

IP66
Width [mm]

74
Durability [h]

50000
Rated impulse voltage [kV]

6
Rated output voltage [V]

24
Rated output current [mA]

830
Dimmable interface [V]

1-10

Power [W]

250
Family

LED DRIVER 1-10V DIM OUTDOOR PERFORMANCE
power loss [W]

23
Darkening

Yes
Height [mm]

42
Rated input voltage [V]

230
Power factor [λ]

0.95
Efficiency [%]

91
PKWIU

27.11.50

Other technical data

Model

Dynamic
Dimming 0-10 V

No
Dimming DALI

No
Dimming DMX

No
Ściemniacz GPRS

No
Dimming manufacturer's proprietary system

No
Dimming phase cut-off

No
Dimming programmable

No
Dimming Sine Wave Reduction

No
Dimming Zigbee

No
No dim function

No
Suitable for constant current

No
Output voltage

24 ... 24 V
Suitable for DC-voltage (primary side)

No
Degree of protection (IP)

IP66
Length

253.0 mm

Suitable for outdoor use

Yes
Dimming 1-10 V

Yes
Dimming DSI

No
Dimming potentiometer (integrated)

No
Dimming LineSwitch

No
Dimming mains voltage modulation

Yes
Dimming phase cut-on

No
Dimming RF

No
Dimming Touch and Dim

No
Dimming with push-button

No
Housing

Metal housing
Suitable for constant voltage

Yes
Output current

10420 ... 10420 mA
Output power

250 ... 250 W
Protection class

I
Height

42.0 mm

A kind of package		Skrzynia	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	1,250	1,318	13,652
Volume (m3)	-	0,001	0,018
Width (m)	-	0,100	0,210
Length (m)	-	0,300	0,310
Depth (m)	-	0,050	0,270
