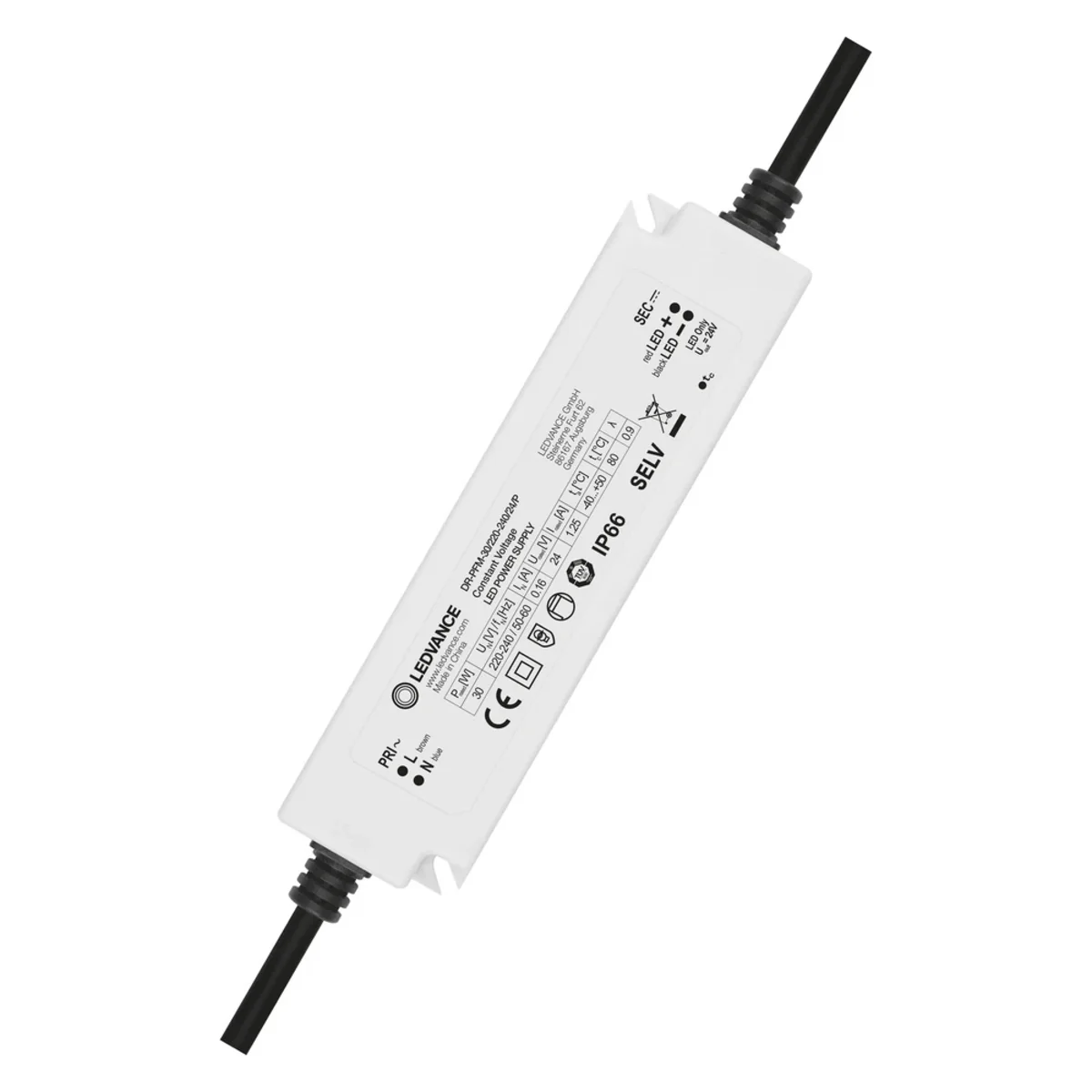

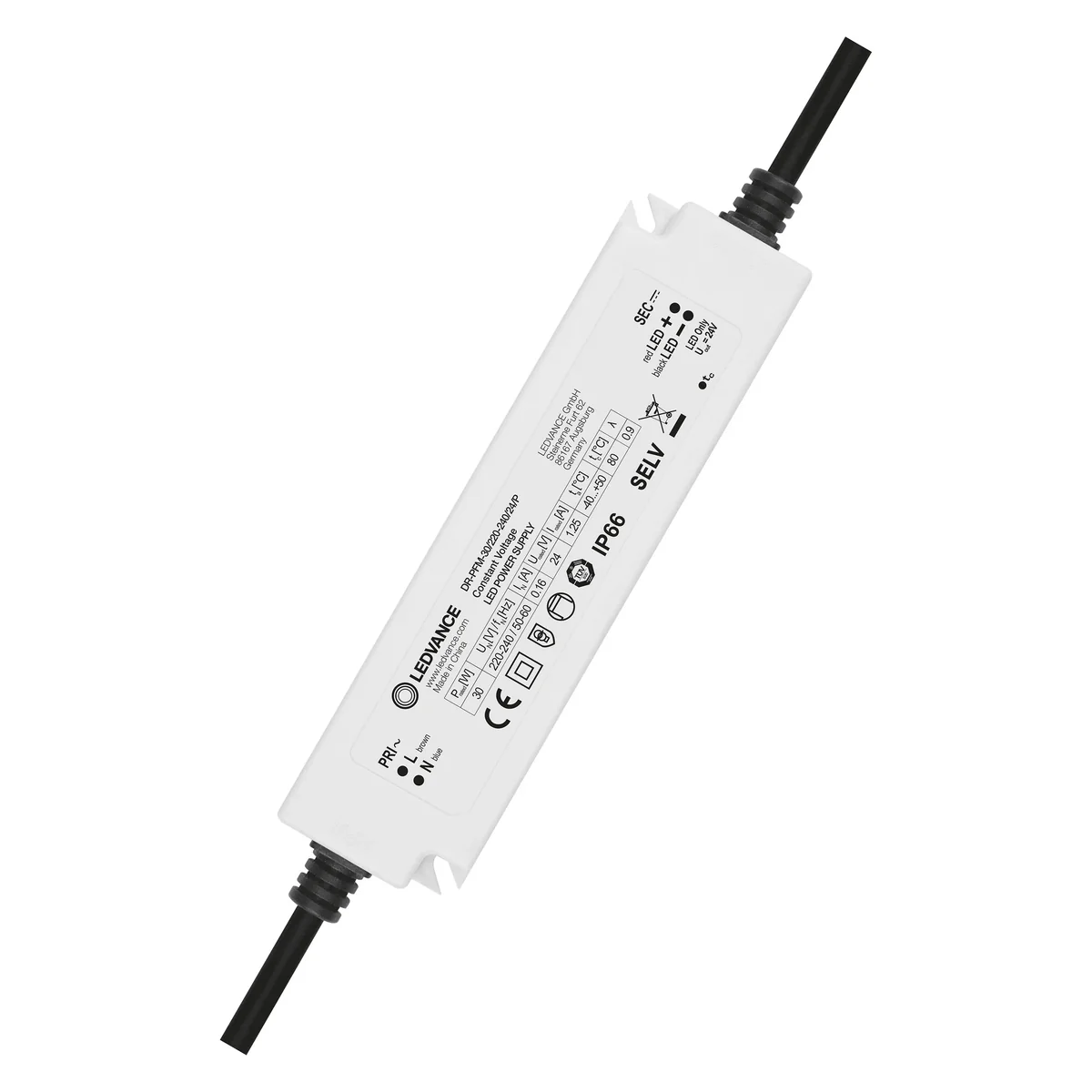

LED DRIVER OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use 30W 230/24V IP66 4058075239890

local index:
AUD125LEDV
Catalog No:
4058075239890
EAN code:
4058075239890
Manufacturer: LEDVANCE
Length [mm]: 148
Power [W]: thirty
Initial starting current [A]: 37
Price:
60,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Product benefits

  • Perfect match for universal 24V LED strips
  • Very stable output power
  • Quick and easy installation thanks to internal wiring
  • High efficiency and reliability
  • Can be installed in very cold or hot environments

Application area< /strong>

  • Suitable for indoor and outdoor installations
  • Façade and building lighting
  • Perfect solution for lighting public spaces
  • < li>Bathrooms, Kitchens and Outdoors
  • Offices, Shopping Malls, Hospitals, Restaurants and Hotels

Product Features

< ul>
  • Electrical short circuit and overload protection
  • Technical data

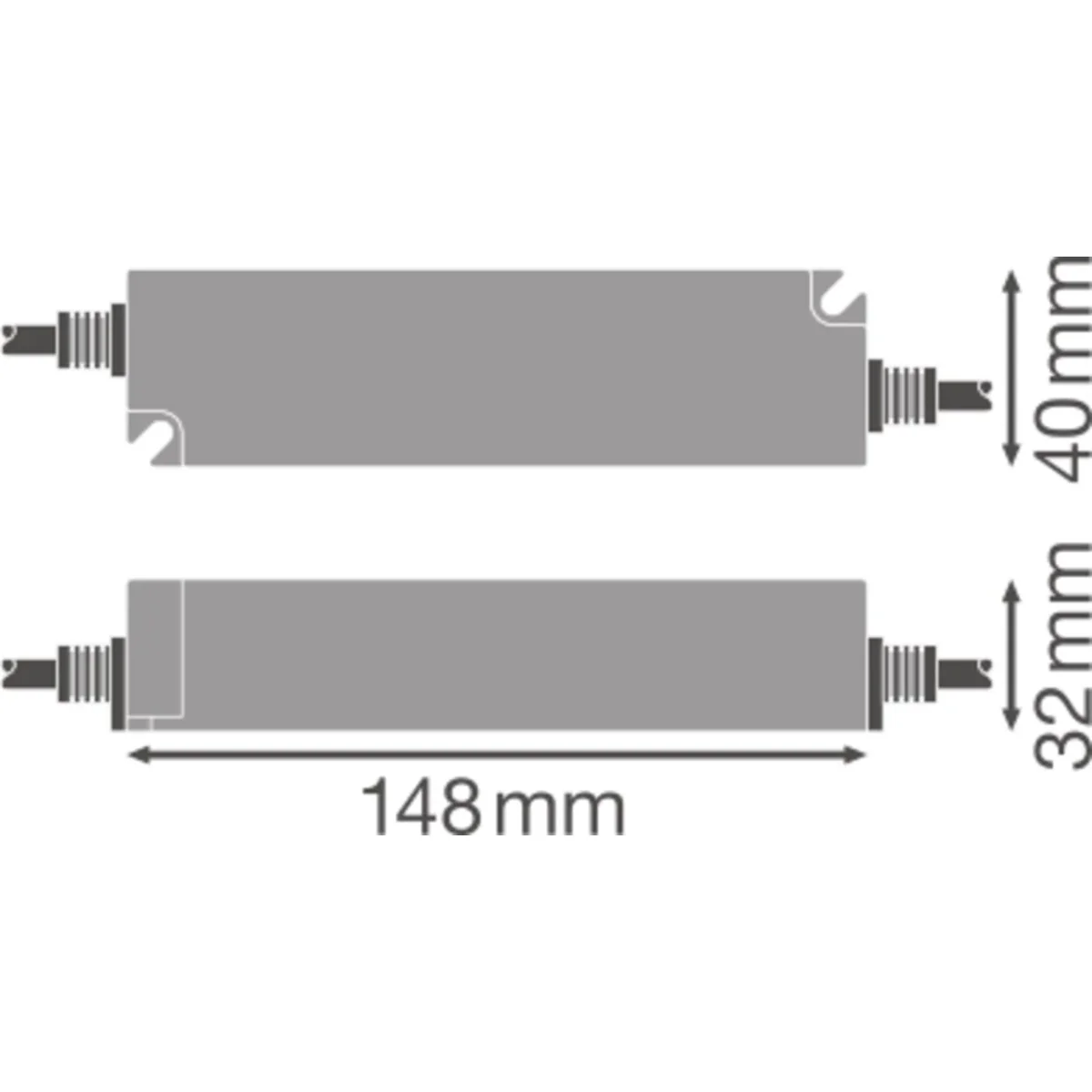

    • Length [mm]
      148
    • Initial starting current [A]
      37
    • Level of security
      IP66
    • Width [mm]
      40
    • Height [mm]
      32
    • Rated input voltage [V]
      230
    • Power factor [λ]
      0.9
    • Efficiency [%]
      87
    • Power [W]
      thirty
    • Family
      LED DRIVER OUTDOOR PERFORMANCE
    • power loss [W]
      4.5
    • Durability [h]
      50000
    • Rated impulse voltage [kV]
      4
    • Rated output voltage [V]
      24
    • Rated output current [mA]
      1250
    • PKWIU
      27.11.50

    Other technical data

    • Model
      Static
    • Dimming 0-10 V
      No
    • Dimming DALI
      No
    • Dimming DMX
      No
    • Ściemniacz GPRS
      No
    • Dimming manufacturer's proprietary system
      No
    • Dimming phase cut-off
      No
    • Dimming programmable
      No
    • Dimming Sine Wave Reduction
      No
    • Dimming Zigbee
      No
    • No dim function
      Yes
    • Suitable for constant current
      No
    • Output voltage
      24 ... 24 V
    • Suitable for DC-voltage (primary side)
      No
    • Degree of protection (IP)
      IP66
    • Length
      148.0 mm
    • Suitable for outdoor use
      Yes
    • Dimming 1-10 V
      No
    • Dimming DSI
      No
    • Dimming potentiometer (integrated)
      No
    • Dimming LineSwitch
      No
    • Dimming mains voltage modulation
      No
    • Dimming phase cut-on
      No
    • Dimming RF
      No
    • Dimming Touch and Dim
      No
    • Dimming with push-button
      No
    • Housing
      Plastic housing
    • Suitable for constant voltage
      Yes
    • Output current
      1250 ... 1250 mA
    • Output power
      30 ... 30 W
    • Protection class
      II
    • Height
      32.0 mm

    Bulk packaging

    A kind of package Skrzynia Karton
    Quantity 1 pcs. 1 pcs. 10 pcs.
    Weight (kg) 0,330 0,361 3,857
    Volume (m3) - 0,001 0,007
    Width (m) - 0,060 0,140
    Length (m) - 0,210 0,230
    Depth (m) - 0,040 0,230
