KNX power supply 1 x 30 V DC, 320 mA + 1 x 24 V DC, 640 mA TXA114
local index:
AUU007HAGE
Catalog No:
TXA114
EAN code:
3250616048997
Manufacturer:
HAGER
Level of security: IP20
power loss [W]: 4.4
Operating temperature range [°C]: from -5 to 45
Price:
490,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

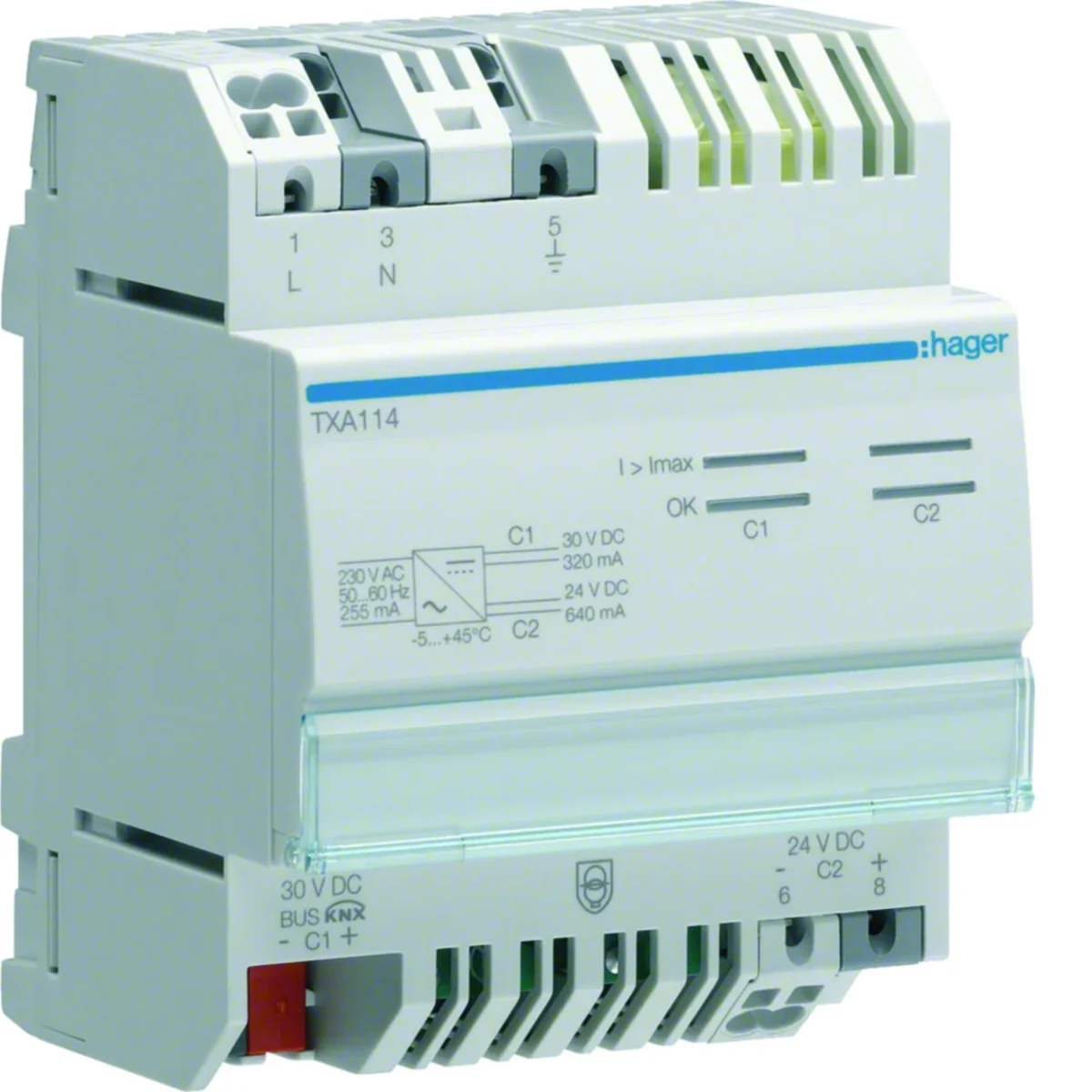

KNX power supply 1 x 30 V DC, 320 mA + 1 x 24 V DC, 640 mA
Technical data
-
Level of securityIP20
-
Operating temperature range [°C]from -5 to 45
-
Number of modules4
-
Conductor cross-section (wire) [mm²]0.75 - 2.5
-
power loss [W]4.4
-
Rated output voltage [V]24; thirty
-
Wire cross-section (cord) [mm²]0.75 - 2.5
-
PKWIU27.11.62.0
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Mounting methodDRA (DIN-rail adapter)
-
With LED indicationYes
-
Number of integrated choke coils1
-
Max. output current320 mA
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Width in number of modular spacings4
-
Bus voltage stockableNo
-
Number of lines to feed1
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 864 pcs. |
| Weight (kg) | 0,248 | 0,265 | 10,020 | 263,480 |
| Width (m) | 0,066 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,071 | 0,075 | 0,235 | 1,090 |
| Depth (m) | 0,090 | 0,095 | 0,360 | 1,200 |
