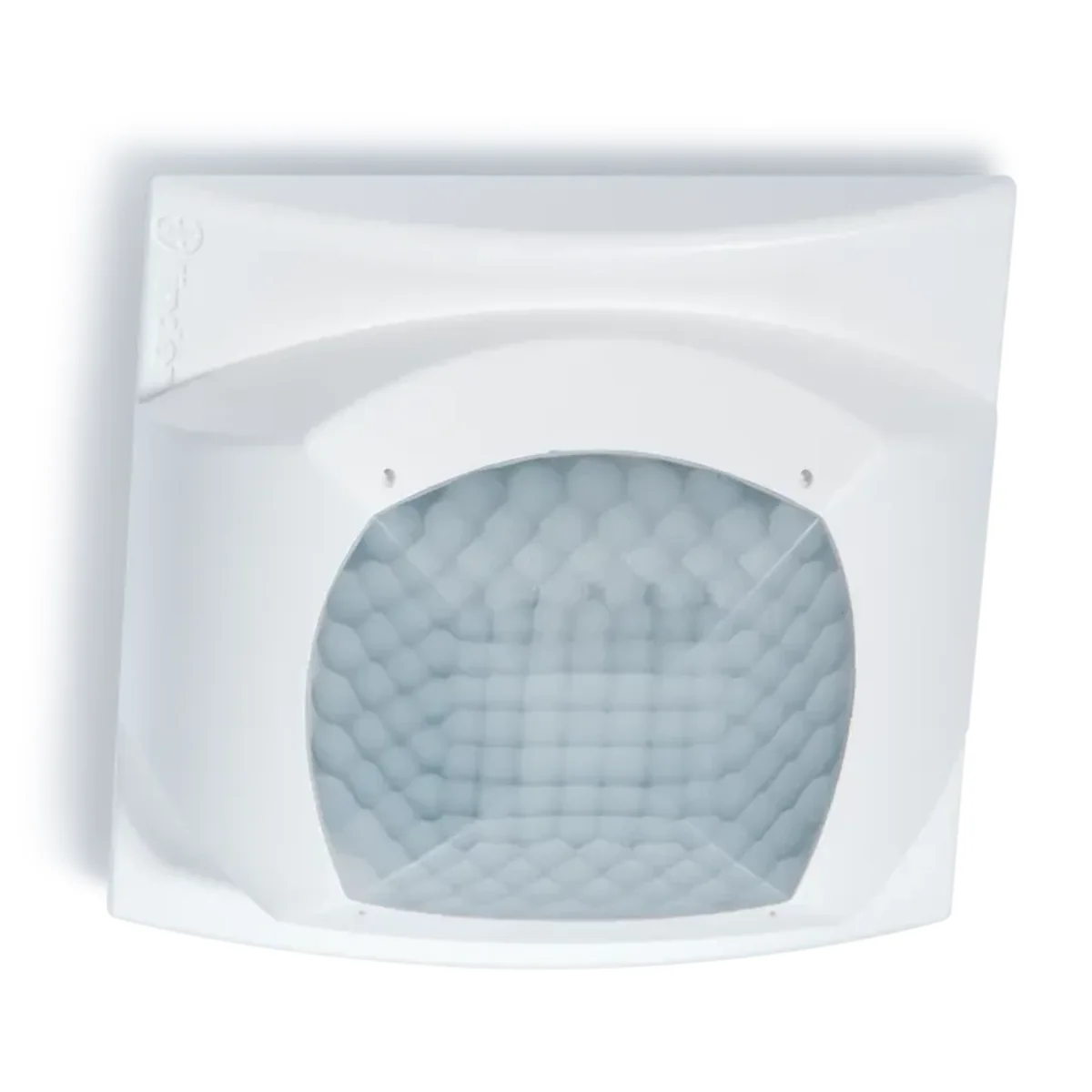

KNX motion and presence sensor IP40 1-1500lx 360° 8x8m 185K90300000

local index:
APK019FIND
Catalog No:
185K90300000
EAN code:
8012823412795
Manufacturer: FINDER
Depth [mm]: 80.1
Detection angle [°]: 360
Installation: Flush-mounted
Price:
198,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Motion and presence detectors with self-locking connections for installation inside buildings

Properties:

  • 2 outputs (data telegrams) for load control (lighting, HVAC, etc.)
  • 1 output (data telegram) - motion / presence detection
  • Adjustment of ambient light threshold and PIR sensitivity
  • Master/Slave mode for increased sensing area
  • Selectable function to disable ambient light threshold control
  • Reporting light level and movement status (for security purposes etc.)< /li>
  • Large detection range up to 64 m2
  • Two detection areas: “presence” suitable for low activity and “movement” suitable for transit areas or high activity areas

Applications:

  • offices
  • schools< /li>
  • low activity zones

Technical data

  • Depth [mm]
    80.1
  • Installation
    Flush-mounted
  • Overvoltage resistance [kV]
    1
  • Contact type
    powered
  • Level of security
    IP40
  • Height [mm]
    84
  • Type of coil voltage
    DC
  • Switching time range [s-min]
    0.1-18
  • Detection angle [°]
    360
  • Rated voltage [V]
    29
  • Current consumption[mA]
    10
  • Family
    18
  • Width [mm]
    84
  • Maximum detection distance [m]
    8x8
  • Sensitivity setting range [lx]
    1-1500
  • Bus type
    KNX

Bulk packaging

A kind of package Sztuka Sztuka
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,252 1,556
Width (m) 0,093 0,480
Length (m) 0,180 0,185
Depth (m) 0,185 0,190
