HF motion sensor 360 degrees IP54, white EE883

local index:
APK001BERK
Catalog No:
EE883
EAN code:
3250617579469
Manufacturer: BERKER
Rated frequency [Hz]: 50
Protection class: II
Color: White
Price:
139,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

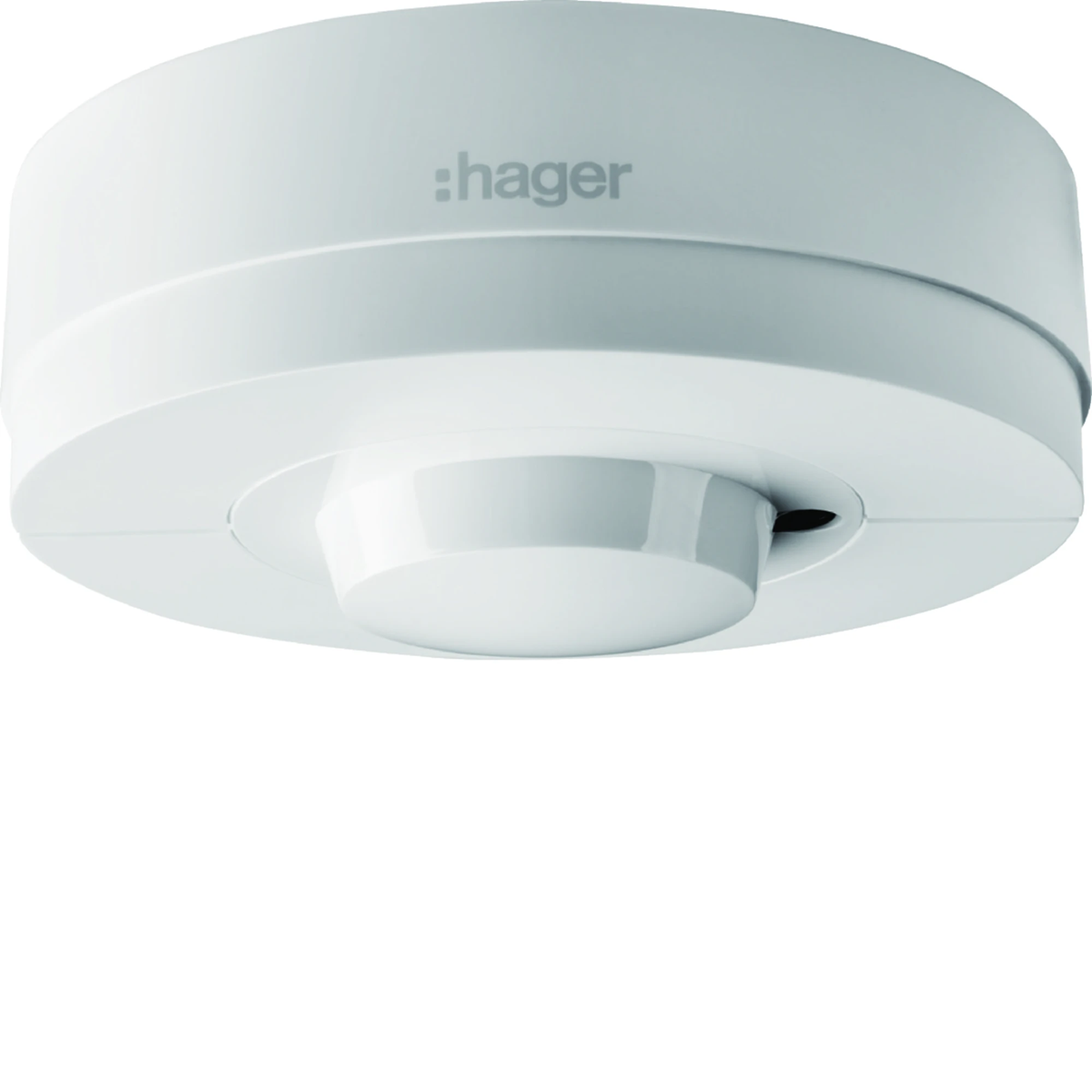

HF motion sensor 360 degrees IP54, white

Technical data

  • Rated frequency [Hz]
    50
  • Color
    White
  • Supply voltage [V]
    230
  • Level of security
    IP54
  • Operating temperature range [°C]
    from -20 to 50
  • Receiver category
    2
  • storage temperature [°C]
    from -35 to 70
  • PKWIU
    27.40.30.0
  • Protection class
    II
  • Installation
    Surface-mounted
  • Rated current [A]
    10
  • Height [mm]
    2500
  • Maximum bulb power [W]
    0/2000
  • AC operating voltage [V]
    230
  • Delay time, adjustable
    5 sec - 15 min

Other technical data

  • Model
    Movement sensor
  • Constant light control
    No
  • Forced switch off
    No
  • Networkable
    Yes
  • Max. reach sideways
    4 m
  • Suitable for wireless transmission
    No
  • With remote control
    No
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    Yes
  • Mounting method
    Surface mounted
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Frequency
    50 ... 50 Hz
  • Substation input
    Yes
  • Built-in width
    0 mm
  • With DALI interface
    No
  • HVAC-control
    No
  • Animal zone
    No
  • Optimum mounting height
    4 m
  • Max. reach frontally
    4 m
  • Remote operation
    Yes
  • Response value sensitivity adjustable
    Yes
  • With signal unit
    No
  • Suitable for wall mounting
    Yes
  • Halogen free
    Yes
  • Anti-bacterial treatment
    No
  • Degree of protection (IP)
    IP54
  • Detection angle horizontal
    360 ... 360 °
  • Diameter
    123 mm
  • Built-in length
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 14 pcs. 336 pcs.
Weight (kg) 0,000 0,325 4,960 142,040
Width (m) 0,123 0,145 0,315 0,800
Length (m) 0,055 0,080 0,240 1,050
Depth (m) 0,123 0,135 0,360 1,200
