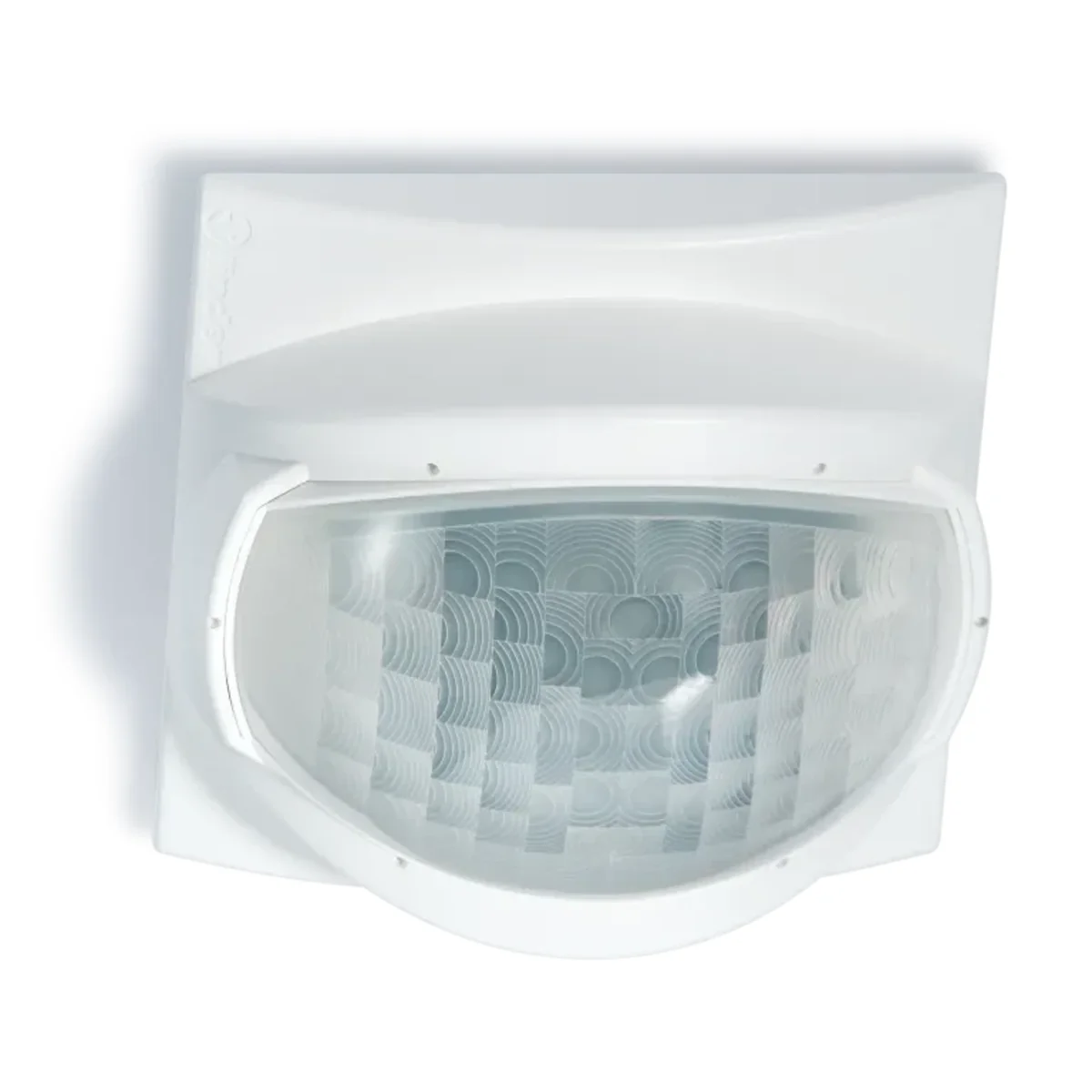

PIR motion sensor IP40 1Z 10A 230V AC 1-500lx 360° 4x30m 184182300300

local index:
APK027FIND
Catalog No:
184182300300
EAN code:
8012823376721
PIR motion sensor IP40 1Z 10A 230V AC 1-500lx 360° 4x30m
Manufacturer: FINDER
Depth [mm]: 80.1
Detection angle [°]: 360
Contact material: AgSnO2
Price:
111,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Motion sensor with push-in terminals for mounting inside objects, with contact separated from the power circuit

Features:

  • Long detection range up to 120 m2
  • Modern design
  • Fast installation thanks to push-in terminals
  • 1 NO contact 10 A with switch-on front
  • Mounting to a 60 mm box or 502 box
  • Mounting in corridors (ceiling)
  • Double clamps for easier connection of sensors

Application:

  • corridors in hotels and offices
  • passageways

Technical data

  • Depth [mm]
    80.1
  • Contact material
    AgSnO2
  • Installation
    Flush-mounted
  • Rated voltage [V]
    230
  • Power consumption [VA]
    1.5
  • Rated current [A]
    10
  • Family
    18
  • Width [mm]
    84
  • Rated inrush current [A]
    20
  • Maximum detection distance [m]
    4x30
  • Rated AC switching voltage [V]
    400
  • Rated switching power for AC15 (230V AC) [VA]
    450
  • Sensitivity setting range [lx]
    1-500
  • Detection angle [°]
    360
  • Fixing
    Push-in terminals
  • AC coil voltage [V]
    110-230
  • Overvoltage resistance [kV]
    1
  • Power consumption [W]
    1
  • Contact type
    Potential-free
  • Level of security
    IP40
  • Height [mm]
    84
  • Number of contacts
    1Z
  • Type of coil voltage
    AC
  • Rated switching power for AC1 [VA]
    2500
  • Electrical durability AC1 [number of cycles]
    100000
  • Switching time range [s-min]
    12-35

Other technical data

  • Model
    Movement sensor
  • HVAC-control
    Yes
  • Animal zone
    Yes
  • Networkable
    Yes
  • Staircase light controller
    Yes
  • Max. reach sideways
    15 m
  • Diameter reach on floor
    30 m
  • Remote operation
    Yes
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    Yes
  • Mounting method
    Other
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Nominal voltage
    230 V
  • Max. duty cycle
    35 min
  • Max. switching power
    1000 W
  • Max. starting current
    100 A
  • Control current
    7 mA
  • With alarm function
    Yes
  • Constant light control
    Yes
  • Forced switch off
    Yes
  • Creep-under protection
    Yes
  • Optimum mounting height
    3 m
  • Bridging switch
    Yes
  • Max. reach frontally
    4 m
  • Suitable for wireless transmission
    Yes
  • Response value sensitivity adjustable
    Yes
  • With signal unit
    Yes
  • Dim function with dimmer basic element
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Transparent
    Yes
  • Voltage type
    AC
  • Min. switch-on time
    12 s
  • Response value luminosity
    1 ... 500 lx
  • Temperature
    -10 ... 50 °C
  • Substation input
    Yes
  • Frequency
    50 ... 60 Hz

Bulk packaging

A kind of package Sztuka Sztuka
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,273 1,662
Width (m) 0,093 0,480
Length (m) 0,180 0,185
Depth (m) 0,185 0,190
