KNX e/s B.x Motion sensor module 1.1 m with bus port 80262180
local index:
APK044HAGE
Catalog No:
80262180
EAN code:
3250617154116
Price:
205,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

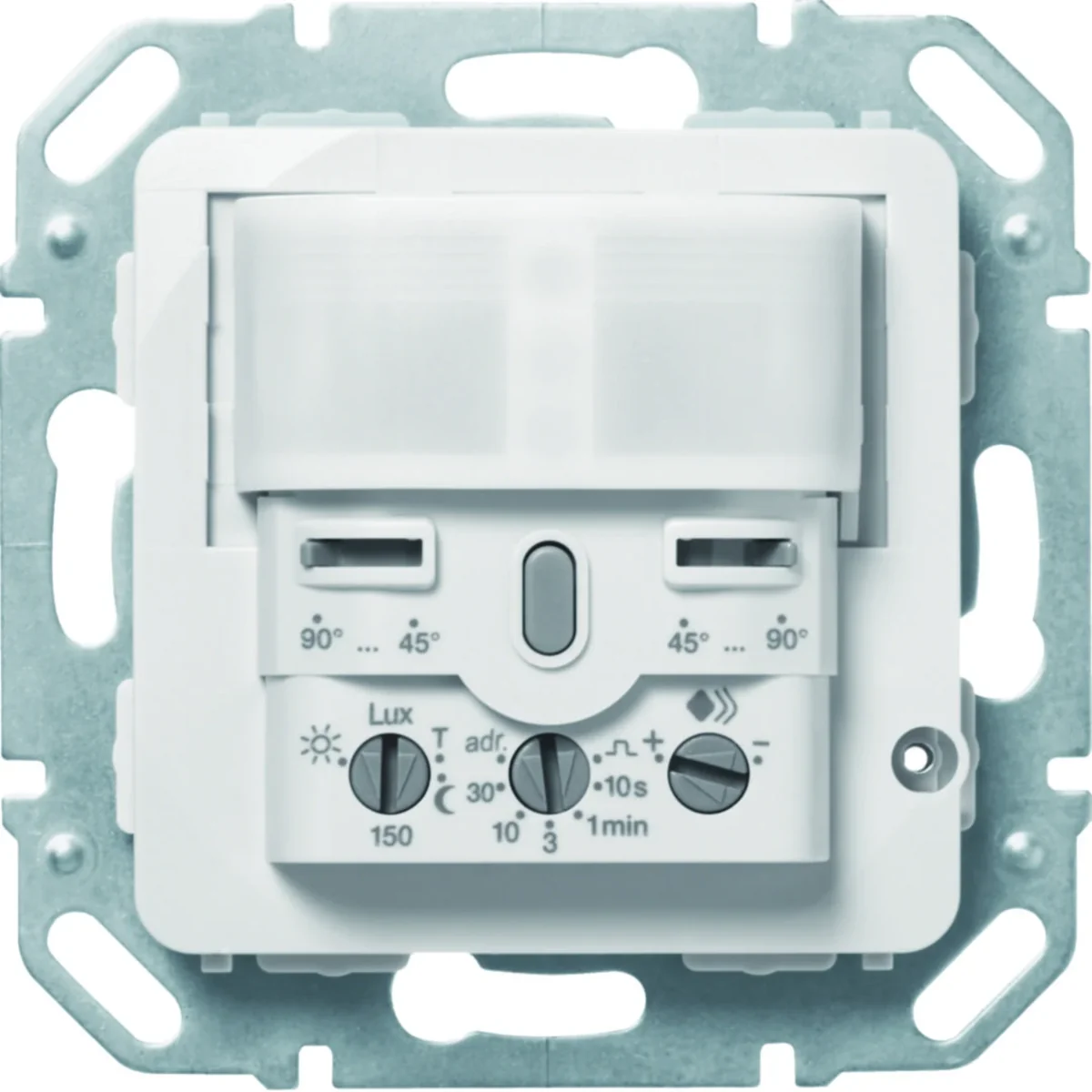

KNX e/s B.x Motion sensor module 1.1 m with bus port
Technical data
-
Halogen freeNO
-
MaterialPlastic Metal
-
Detection field12x16
-
Operating temperature range [°C]from -5 to 45
-
Bus current consumption (data transmission) [mA]10
-
Delay time, adjustable10 sec - 30 min
-
Detection angle [°]45-90
-
InstallationFlush-mounted
-
Level of securityIP20
-
Operating voltage via DC bus [V]21 - 32
-
storage temperature [°C]from -20 to 70
-
PKWIU27.33.11.0
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
Mounting methodFlush-mounted
-
Material qualityOther
-
TransparentNo
-
Substation inputYes
-
Operation mode switchYes
-
Staircase light controllerYes
-
Teach-function for response value luminosityNo
-
Optimum mounting height1.1 m
-
Max. reach frontally12 m
-
Detection angle vertical0 ... 7 °
-
Number of channels3
-
Min. switch-on time10 s
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
ModelMovement sensor
-
MaterialOther
-
Surface protectionUntreated
-
With bus connectionYes
-
Creep-under protectionNo
-
Animal zoneNo
-
Response value luminosity adjustableYes
-
Switch-off delay self-learningNo
-
Max. reach sideways8 m
-
Diameter reach on floor0 m
-
Detection angle horizontal90 ... 180 °
-
Switching power0 W
-
Max. duty cycle30 min
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 30 pcs. | 960 pcs. |
| Weight (kg) | 0,068 | 0,155 | 4,900 | 181,800 |
| Width (m) | 0,071 | 0,080 | 0,300 | 0,800 |
| Length (m) | 0,056 | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,130 | 0,400 | 1,200 |
