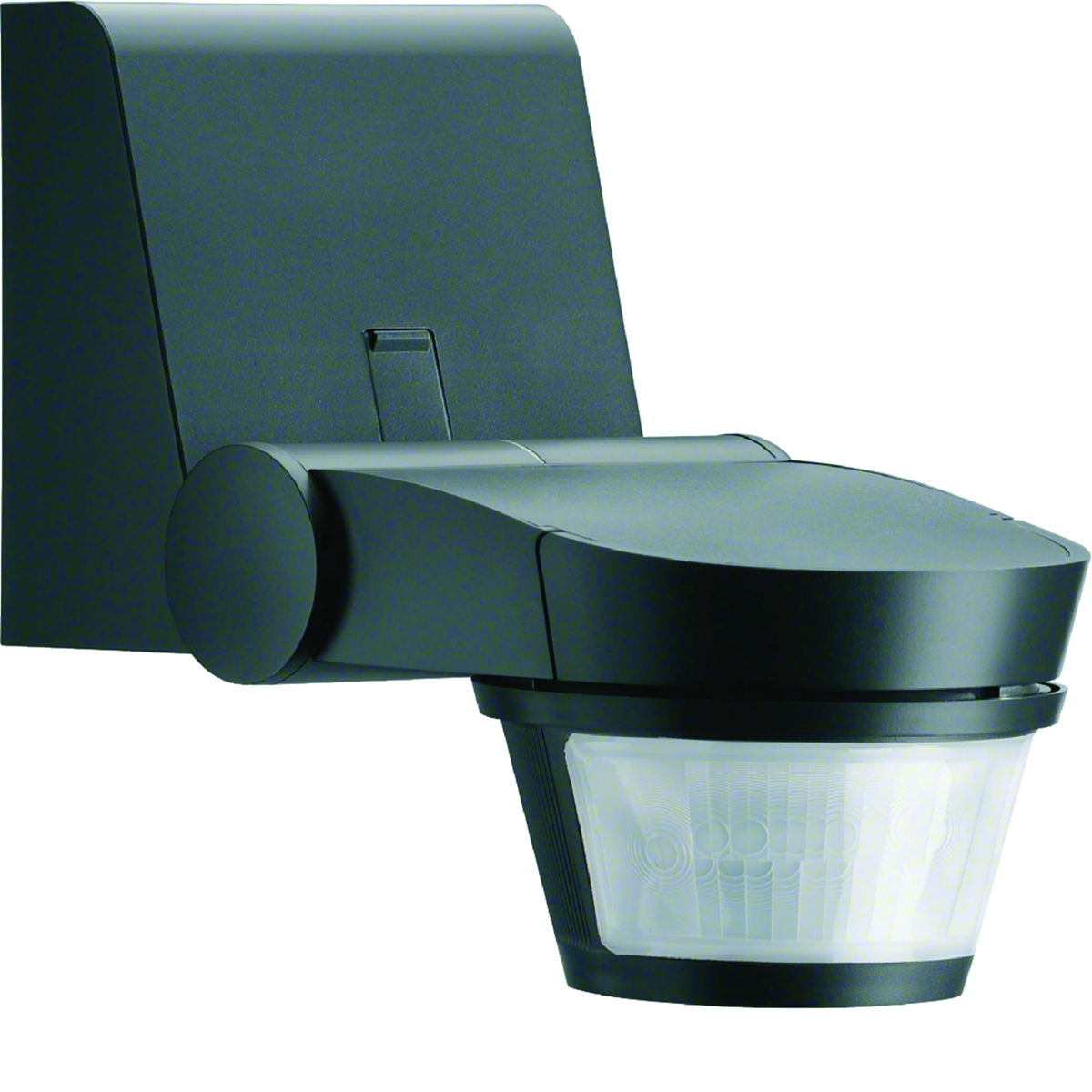

COMFORT Motion sensor, 220 degrees, anthracite EE861

Motion sensors 140°/220°/360°
extended version
power supply: 230 V~ 50 Hz
relay output: 16A AC1
installation height 2.5 m
detection field:
140° front: 16 m / side: 6 m
220° front: 16 m / side: 10 m
220/360°: front: 16 m / side: 10 m + diameter 6 m
delay time 5 sec to 15 min (30 min. with IR remote control)
illuminance 5 to 1000 Lux
sensitivity min. 20% max. 100%
iP55
for automatic control of lighting circuits depending on motion detection and light intensity
delay time and lighting intensity set using potentiometers
additional parameters set using the EE806
remote control sensors equipped with a Fresnel lens guaranteeing high quality of detection
140° sensor for motion and level detection
illuminance
200° sensor adapted for mounting on the facade of the building
360° sensor adapted to protect corner areas
possible ceiling and wall mounting without additional elements
mounting accessories enable corner mounting
