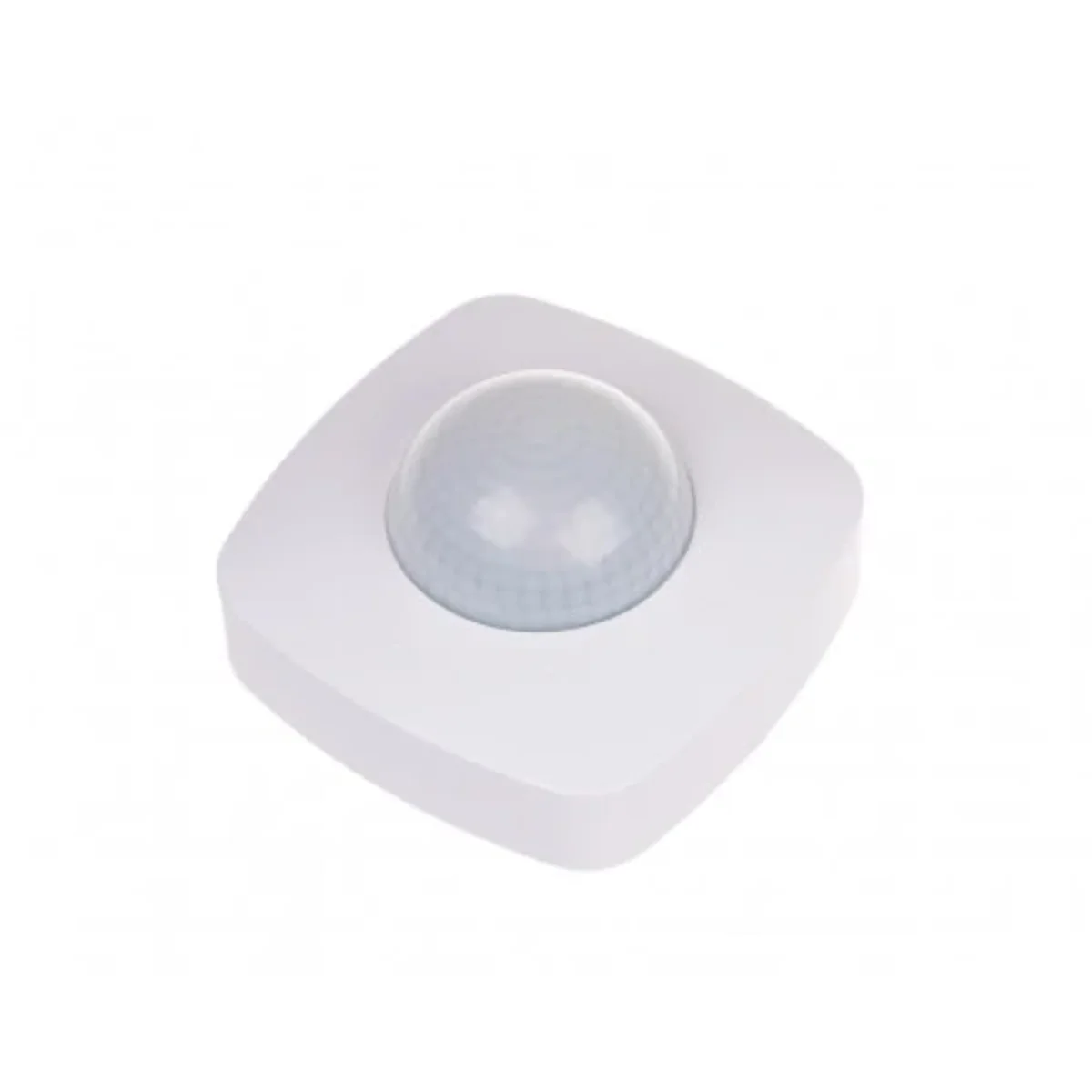

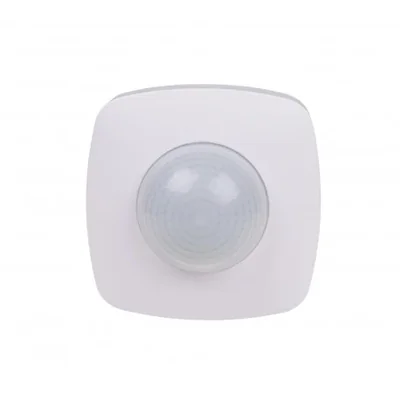

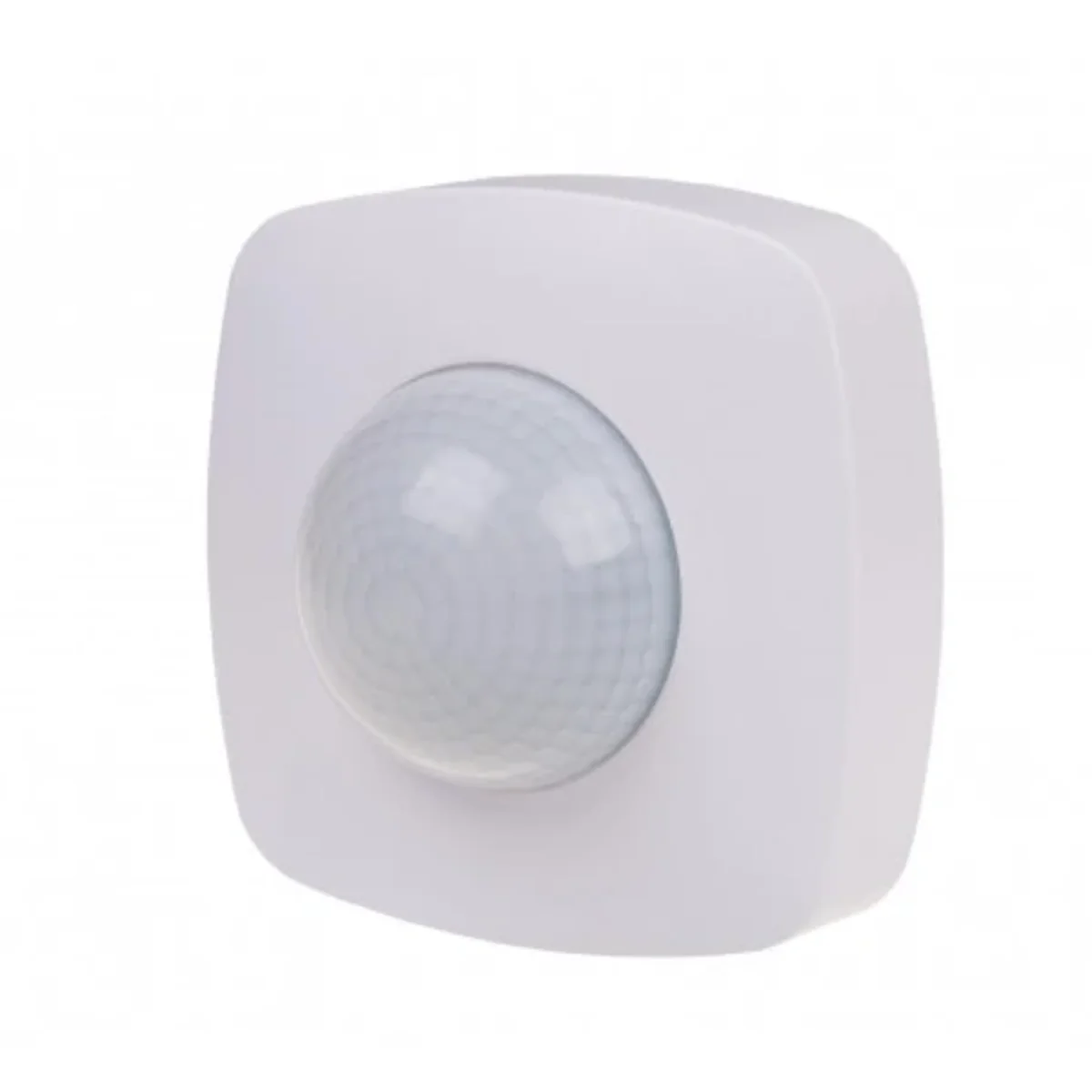

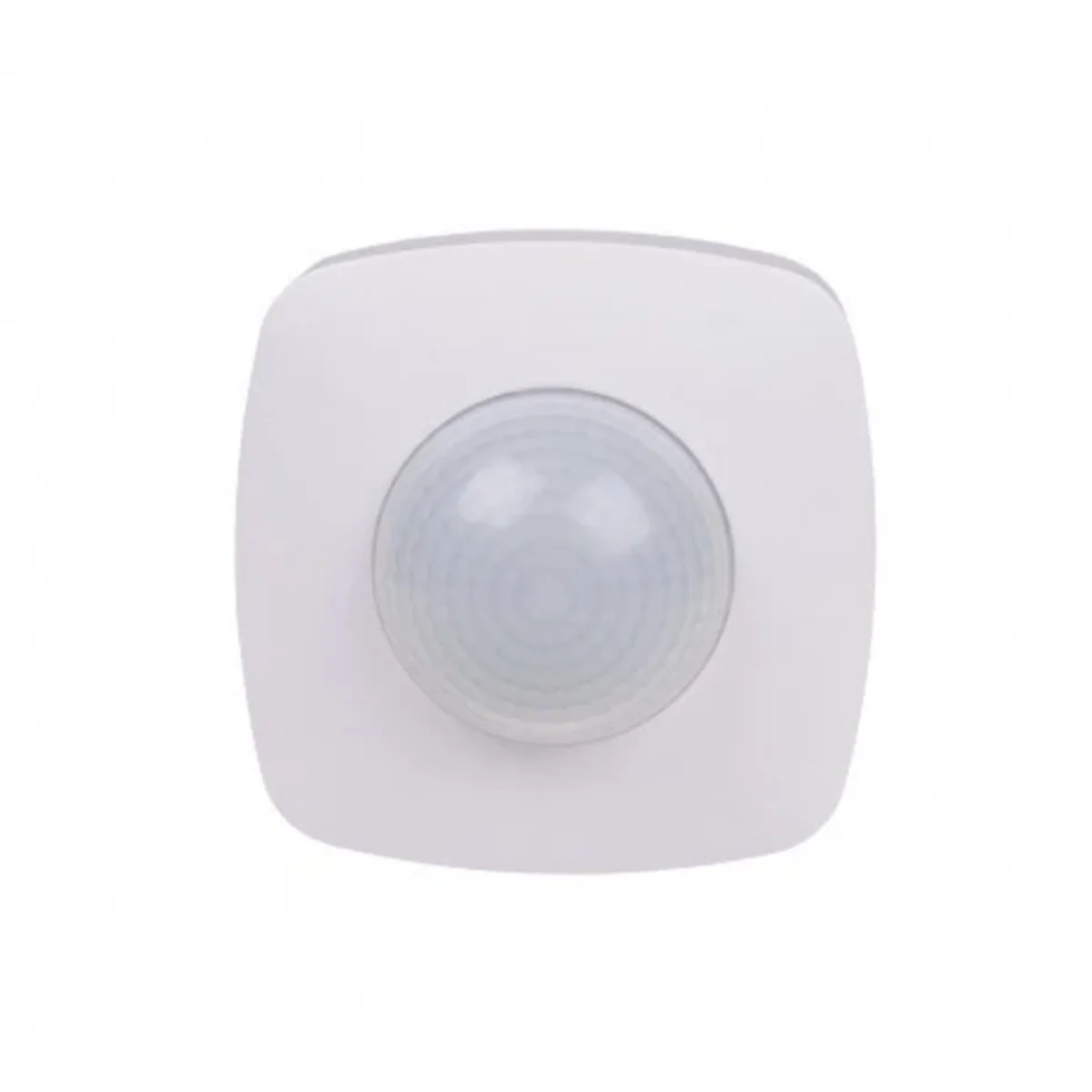

Hermetic IP65 motion sensor, white DR-09-IP65

local index:
APK021FIFQ
Catalog No:
DR-09-IP65
EAN code:
5902431674889
Manufacturer: F&F
Length [mm]: 102
Detection angle [°]: 360
Color: White
Price:
24,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 34 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic infrared motion sensor with presence sensor function

Motion sensor strong> allows forautomatic, temporary switching on of the lightin the event of a person or other object appearing in places such as: corridors, doors, approaches and driveways, garages, etc.
Motion sensorcan work indoors and outdoors because it has an IP65 protection level.

The sensor detects sources of infrared radiation. It analyzes parameters such as the size of the object, the amount of heat emitted and the speed of movement between individual detection sectors. The sensor detects movement along the axis and its own radius. Movement in the detection field automatically turns on the lighting. From the moment of switching on, continuous movement causes the lighting to be permanently switched on. Only the lack of movement in the detection field triggers the lighting maintenance time. Another movement in the detection field and its disappearance during time measurement will trigger the holding time from the beginning.
The nature of operation allows the DR-09-IP65 to be used as a presence sensor. The area of the detection field is: for presence up to 6 m in diameter, and for movement up to 20 m in diameter. The motion sensor is equipped with a twilight switch, which prevents the controlled lighting from being turned on during the day. The detection state and readiness to switch on the lighting are activated only after dusk. The moment of sensor activation can be corrected by the user using a potentiometer. Additionally, it is possible to adjust the receiver's activation time in the range of 10 s and 30 min.

Technical data

  • Length [mm]
    102
  • Color
    White
  • Rated voltage [V]
    230
  • Rated current [A]
    10
  • Level of security
    IP65
  • Working temperature [°C]
    from -20 to +40
  • Power consumption in operating mode [W]
    0.45
  • PKWIU
    27.12.24.0
  • Detection angle [°]
    360
  • Installation
    Surface-mounted
  • Power consumption in standby mode [W]
    0.1
  • Twilight sensitivity threshold [lx]
    3-2000
  • Width [mm]
    102
  • Height [mm]
    55
  • Maximum detection distance [m]
    10

Other technical data

  • Model
    Movement sensor
  • Constant light control
    No
  • Forced switch off
    Yes
  • Creep-under protection
    No
  • Scan angle
    360 °
  • Staircase light controller
    Yes
  • Max. reach sideways
    8 m
  • Diameter reach on floor
    16 m
  • Remote operation
    No
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    No
  • Suitable for wall mounting
    No
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Transparent
    No
  • Voltage type
    AC
  • Nominal voltage
    230 V
  • Max. duty cycle
    13 min
  • Detection angle horizontal
    360 ... 360 °
  • Max. switching power
    800 W
  • Max. starting current
    10 A
  • With alarm function
    No
  • Height
    102 mm
  • Diameter
    115 mm
  • Sensor type
    Passive infrared
  • HVAC-control
    No
  • Animal zone
    No
  • Networkable
    No
  • Optimum mounting height
    2.8 m
  • Bridging switch
    No
  • Max. reach frontally
    8 m
  • Suitable for wireless transmission
    No
  • Response value sensitivity adjustable
    Yes
  • With signal unit
    No
  • Suitable for ceiling mounting
    Yes
  • Dim function with dimmer basic element
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    White
  • Degree of protection (IP)
    IP65
  • Frequency
    50 ... 50 Hz
  • Min. switch-on time
    10 s
  • Switching-on delay
    1 s
  • Response value luminosity
    3 ... 2000 lx
  • Temperature
    -25 ... 50 °C
  • Substation input
    No
  • Width
    102 mm
  • Depth
    55 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,110
Length (m) 0,110
Depth (m) 0,065
