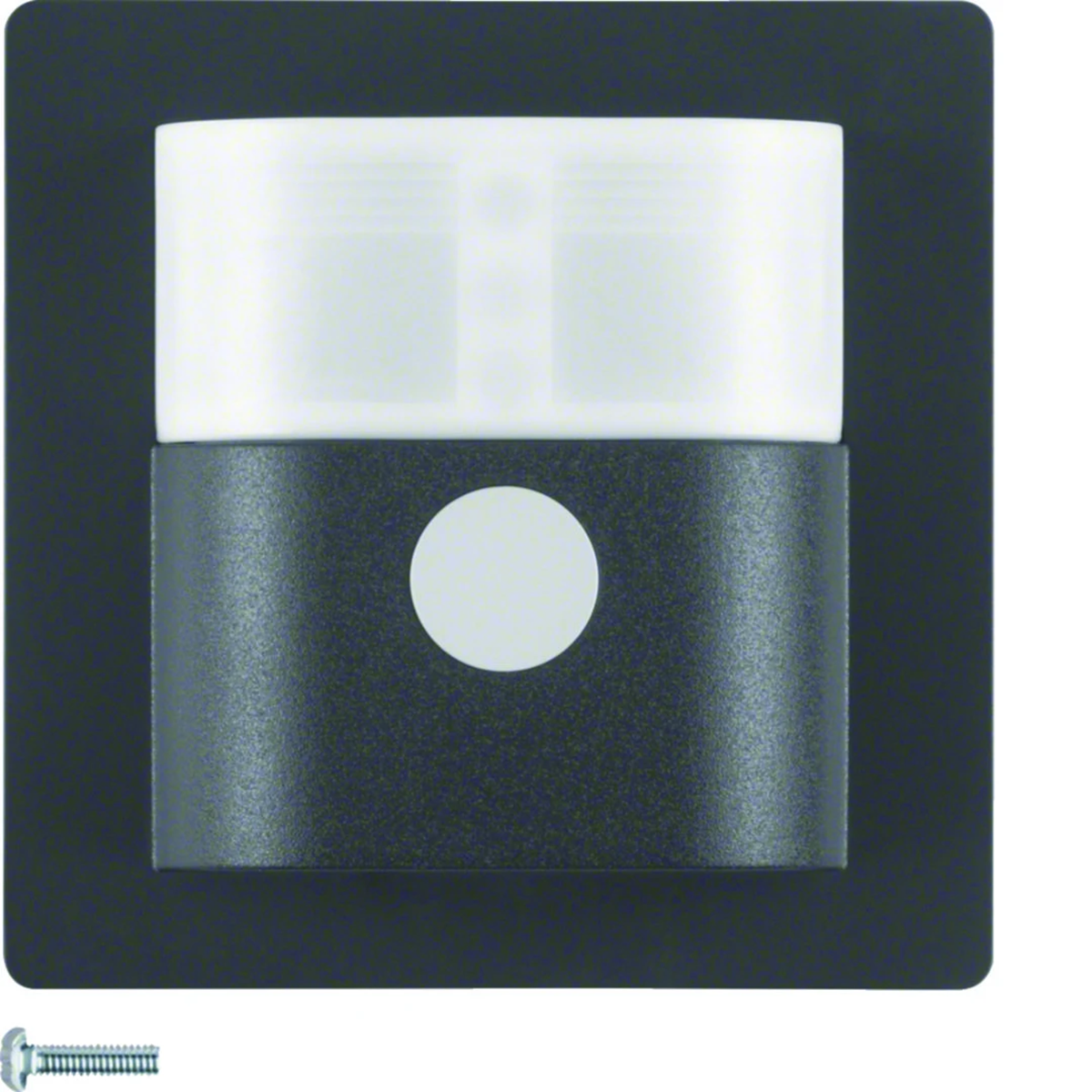

KNX RF QUICKLINK Q.1/Q.3 Comfort motion sensor attachment 2.2m anthracite 85346126

local index:
APK022BERK
Catalog No:
85346126
EAN code:
4011334383109
Manufacturer: BERKER
Halogen free: NO
Detection angle [°]: 45-90
Material: Thermoplastic
Price:
236,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Motion sensor capcomfort from the KNX RF quicklink series. Nominal installation height: 2.2m. Main design line: Q.1/Q.3.

Features:

  • microprocessor control operation
  • additional ETS functions: +6 scenes, operating mode on/off, push-button switch, status indicator, dimming value, light intensity indicator, recalling scenes - movement, recalling scenes - no movement
  • reset function (factory settings)
  • party function activated for 2 hours
  • with presence simulation memory function
  • with key lock
  • the function of warning against switching off by dimming mechanisms
  • the function of programming the activation level of lighting intensity activated by means of a button
  • triggering scenes by means of KNX radio devices
  • the possibility of blocking the memory of scenes
  • quicklink functions: switching, dimming, 2 scenes, time control, pushbutton switch (make contact), memory, forced control, Master-Slave mode
< p> Controls and indicators:

  • remote operation possible via quicklink transmitter
  • with configuration and function button
  • with on/off button/automatic mode/memory/party function

LED control:

  • LED indicator cap and mechanism compatibility
  • with configuration and function LED
  • with red/green/orange operation and status LEDs

Connection :

  • integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Series characteristics:

KNX quicklink is the wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

  • installation in places where cable installation is not possible (e.g. glass walls),
  • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
  • the ability to control electrical receivers using remote controls,
  • the ability to create light scenes and group and central control functions.

Technical data

  • Halogen free
    NO
  • Material
    Thermoplastic
  • Surface
    Velvet
  • Operating temperature range [°C]
    from -5 to 45
  • Receiver category
    2
  • Number of detection planes
    2
  • Radio transmitter power [mA]
    <10
  • Radio protocol
    KNX
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Straight range [m]
    ≈ 8
  • Radio transmitter range (in open area) [m]
    100
  • PKWIU
    26.51.20.0
  • Detection angle [°]
    45-90
  • Detection field
    8x12
  • Family
    KNX RF QUICKLINK
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of radio channels
    1
  • Number of quicklinks
    up to 20 transmitters/receivers
  • Operation brightness level [%]
    10 - 100
  • Way of work
    microprocessor operation control
  • Lateral range [m]
    ≈ 6
  • Range of the radio transmitter (in the building) [m]
    thirty
  • Delay time, adjustable
    ≈ 1 s - 3 h

Other technical data

  • Bus system KNX
    no
  • Bus system radio frequent
    no
  • Bus system Powernet
    no
  • Radio frequent bidirectional
    yes
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • With bus connection
    yes
  • Creep-under protection
    yes
  • Animal zone
    no
  • Response value luminosity adjustable
    yes
  • Switch-off delay self-learning
    no
  • Max. reach sideways
    6 m
  • Diameter reach on floor
    0 m
  • Detection angle horizontal
    90 ... 180 °
  • Switching power
    0 W
  • Max. duty cycle
    180 min
  • Bus system KNX-RF (Radio Frequent)
    yes
  • Bus system LON
    no
  • Other bus systems
    None
  • Model
    Movement sensor
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    Anthracite
  • Transparent
    no
  • Substation input
    yes
  • Operation mode switch
    yes
  • Staircase light controller
    yes
  • Teach-function for response value luminosity
    yes
  • Optimum mounting height
    2.2 m
  • Max. reach frontally
    8 m
  • Detection angle vertical
    3 ... 45 °
  • Number of channels
    1
  • Min. switch-on time
    1 s

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,092 3,577 134,454
Width (m) 0,084 0,300 0,800
Length (m) 0,070 0,225 1,050
Depth (m) 0,085 0,400 1,200
