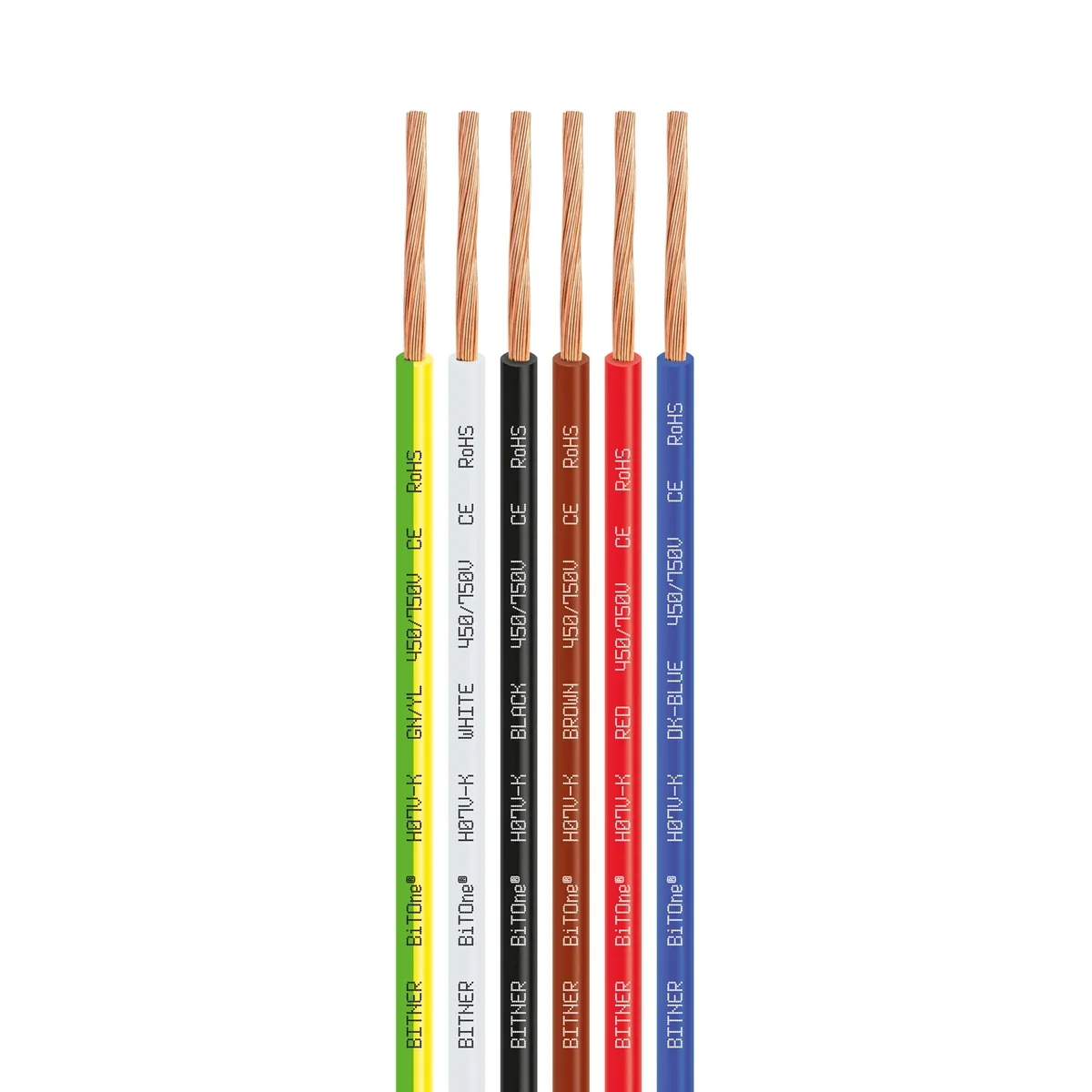

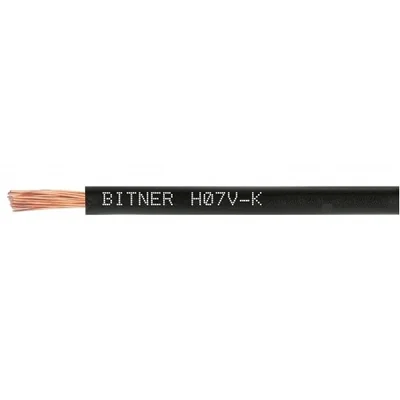

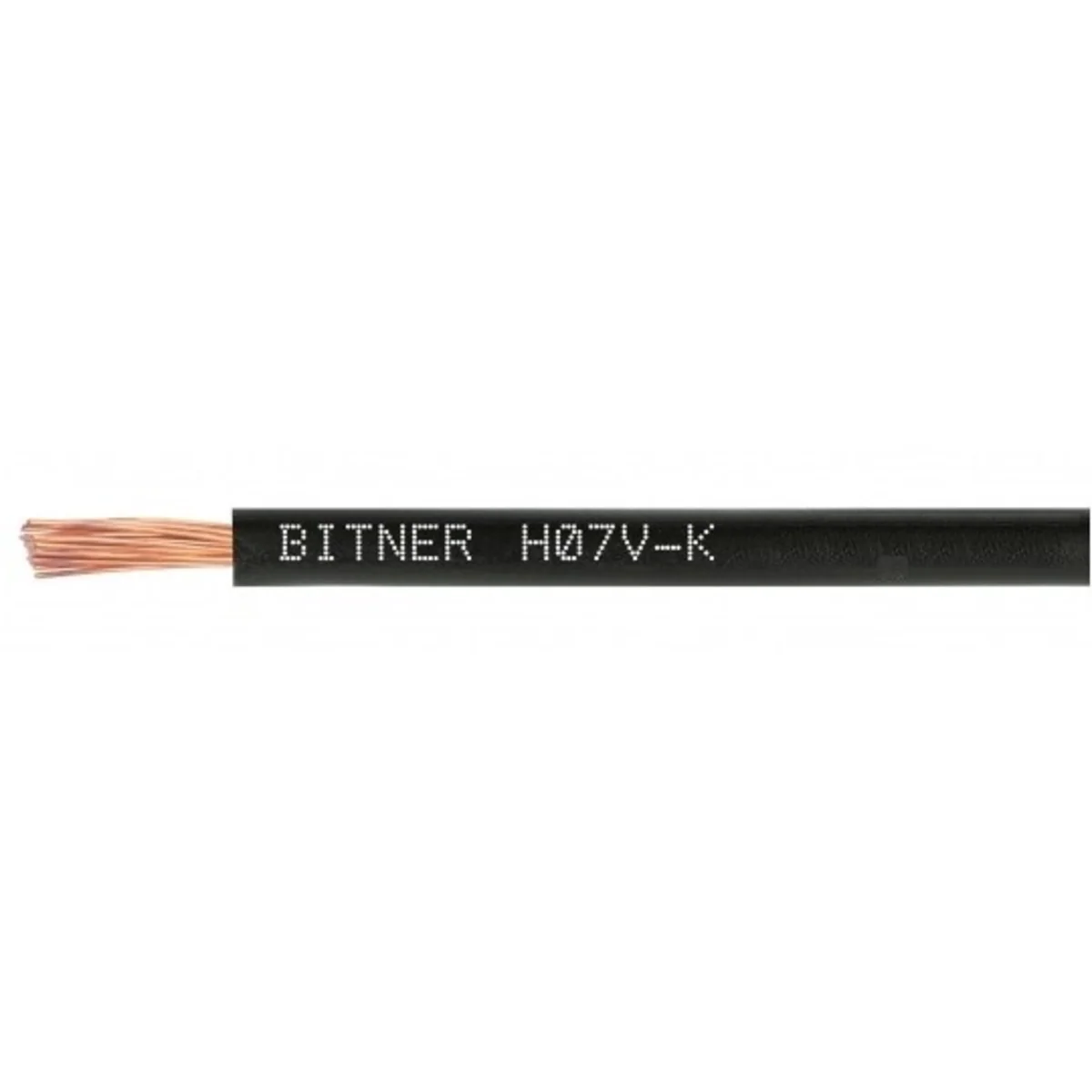

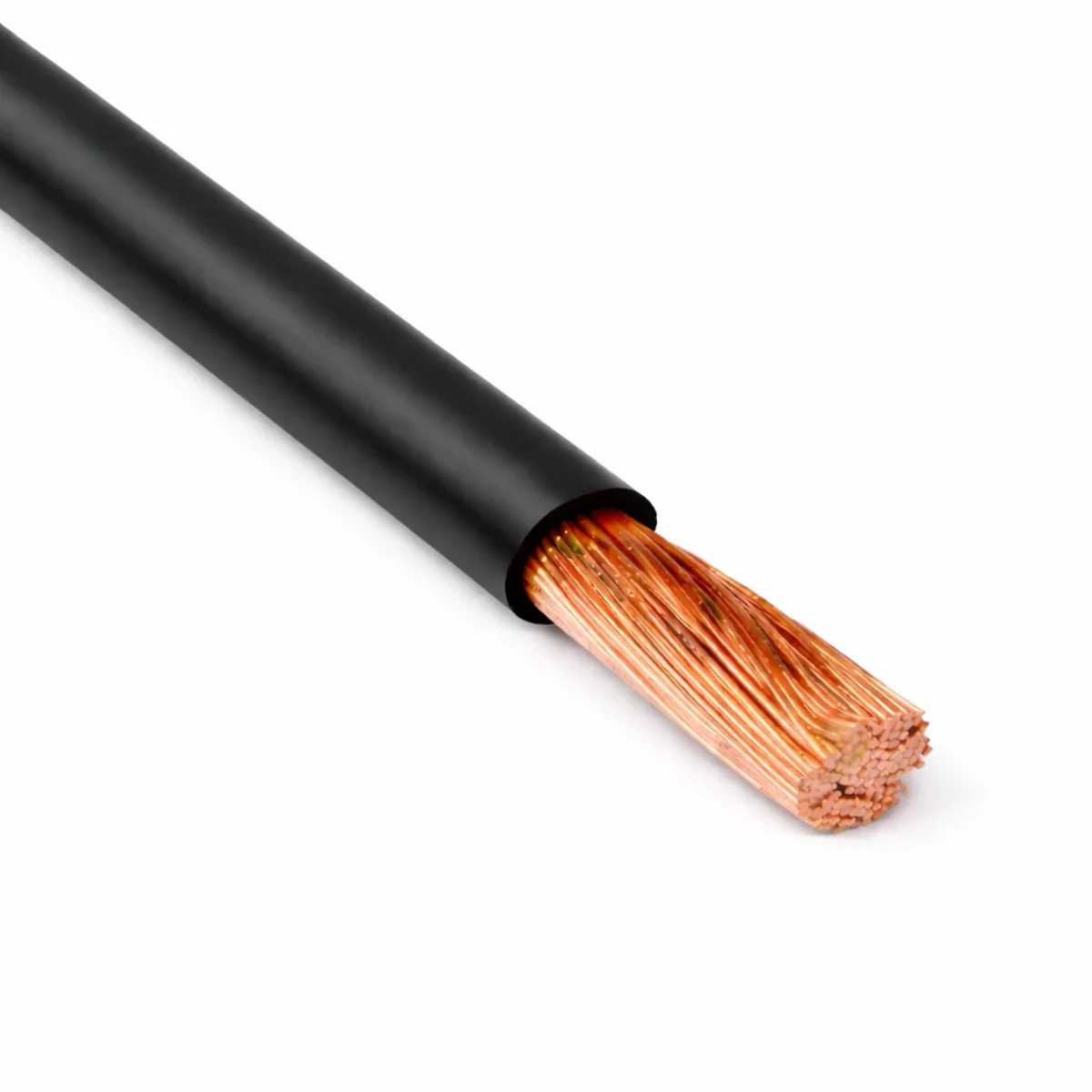

BITONE Installation cable H07V-K 1x6mm2 450/750V black IG2003.03

local index:
KLB017BITN
Catalog No:
IG2003.03
EAN code:
5902956334886
Manufacturer: BITNER
Number of veins: 1
Color: Black
Rated voltage [V]: 450/750
Price:
1,39 €
gross / m.
(including VAT 23%)
Delivery in 3h
Accessible 5302 m.
Pickup in 1h
Quantity m.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Flexible single-core cable with PVC insulation from the BiTOne series, from the BITNER manufacturer. Product part number is IG2003.03.

  • Operating temperature:
    • Permanent installation: -40°C to 80°C.
    • Minimum installation temperature: -5°C.
  • Class 5 stranded copper conductor (according to PN-EN 60228, EN 60228, IEC 60228).
  • Insulation: special PVC.
  • Single-core cables with PVC insulation for making connections in devices, switchboards, lighting, etc.
  • Cables classified in accordance with the PN-EN 50575 standard (CPR).

Technical data

  • Number of veins
    1
  • Rated voltage [V]
    450/750
  • Core cross-section [mm²]
    6
  • Family
    BITONE
  • Insulation material
    PVC
  • PKWIU
    27.32.13
  • Color
    Black
  • Voltage test [V]
    2500
  • Cable type
    H07V-K
  • Cable outer diameter [mm]
    4.5
  • Vein class
    5
