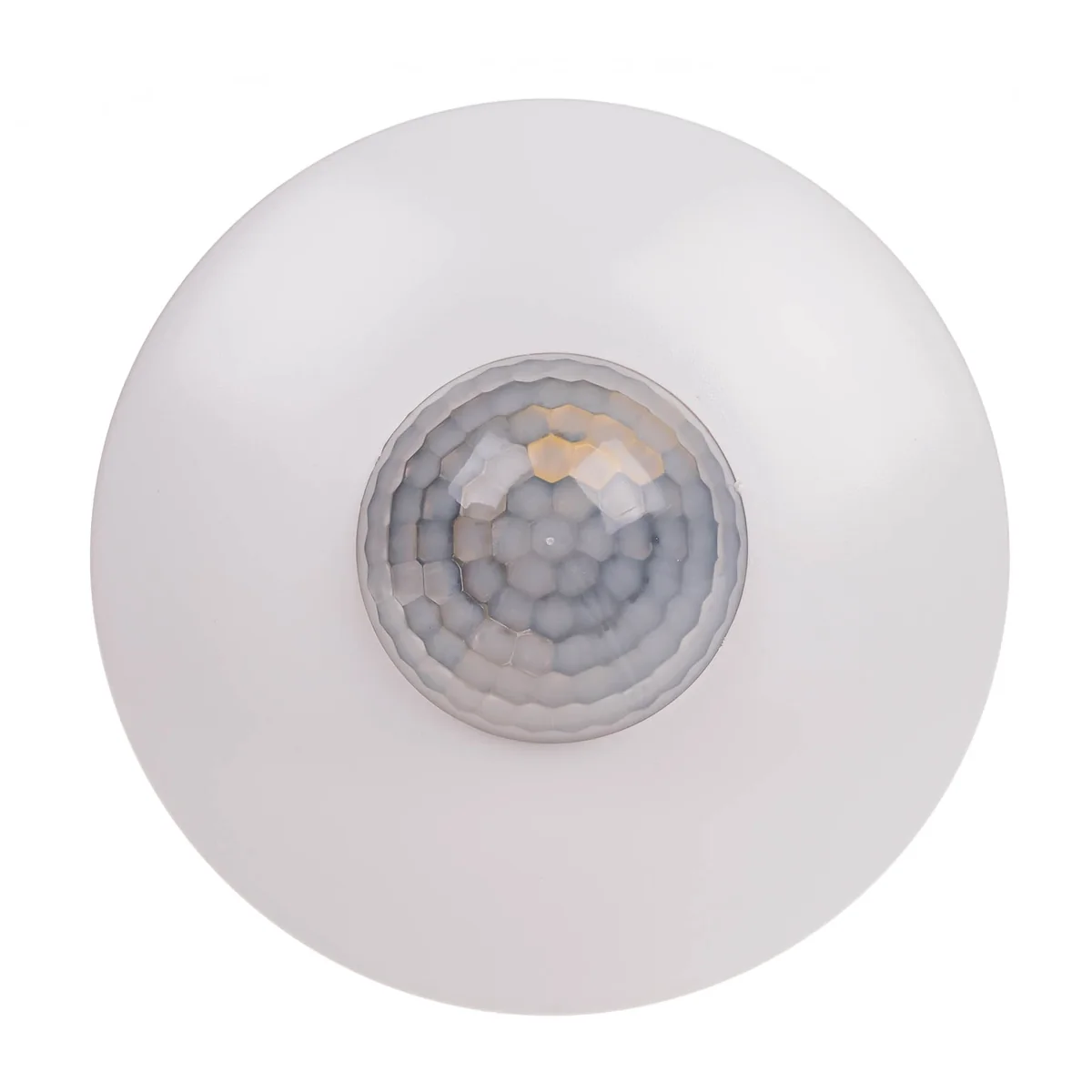

DR-06 W motion sensor DR-06W

local index:
APK005FIFQ
Catalog No:
DR-06W
EAN code:
5908312592334
Manufacturer: F&F
Shutdown time [ms]: 10sec±5sec - 4min±1min
Color: White
Maximum detection distance (for <24°C) [m]: 12
Price:
14,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 26 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The motion sensor is used to automatically, temporarily switch on the lighting in the event of the appearance of a person or other object in such places as corridors, courtyards, approaches and driveways, garages, etc. The sensor detects sources of infrared radiation. It analyzes such parameters as the size of the object, the amount of emitted heat and the speed of movement between individual detection sectors. Movement in the detection field automatically turns on the lighting for the time set by the user. After this time, the lighting will be turned off automatically. The motion sensor is equipped with a twilight switch that prevents switching on the controlled lighting during the day. The detection status and readiness to switch on the lighting are activated only after dusk. The activation time of the sensor can be corrected by the user with a potentiometer. The motion sensor can work indoors and outdoors in places where it is not exposed to direct rain or snow and the possibility of splashing water or other liquid on the sensor housing and its electrical connection points.

Technical data

  • Shutdown time [ms]
    10sec±5sec - 4min±1min
  • Maximum detection distance (for <24°C) [m]
    12
  • Rated voltage [V]
    230
  • load current [A]
    <7
  • connection
    1.5mm screw terminals
  • Level of security
    IP20
  • Working temperature [°C]
    -20-40
  • Sensor mounting height [m]
    2.5-3
  • Package height [mm]
    35
  • Packaging diameter [mm]
    110
  • PKWIU
    27.12.24.0
  • Color
    White
  • Power [W]
    0.45
  • Horizontal detection field
    360°
  • Twilight sensitivity threshold [lx]
    3-2000
  • Mounting method
    For screws
  • Diameter [mm]
    110
  • Height [mm]
    35
  • Range [m]
    5
  • Package weight [kg]
    0.3
  • Motion detection
    0.6-1.5m/sec

Other technical data

  • Model
    Movement sensor
  • Constant light control
    No
  • Forced switch off
    Yes
  • Creep-under protection
    No
  • Optimum mounting height
    2.5 m
  • Bridging switch
    No
  • Diameter reach on floor
    10 m
  • Remote operation
    No
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    No
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Transparent
    No
  • Voltage type
    AC
  • Nominal voltage
    230 V
  • Max. duty cycle
    10 min
  • Response value luminosity
    3 ... 2000 lx
  • Temperature
    -20 ... 40 °C
  • Substation input
    No
  • Sensor type
    Passive infrared
  • HVAC-control
    No
  • Animal zone
    No
  • Networkable
    No
  • Staircase light controller
    Yes
  • Max. reach frontally
    5 m
  • Suitable for wireless transmission
    No
  • Response value sensitivity adjustable
    No
  • With signal unit
    No
  • Dim function with dimmer basic element
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    White
  • Degree of protection (IP)
    IP20
  • Frequency
    50 ... 50 Hz
  • Min. switch-on time
    8 s
  • Detection angle horizontal
    360 ... 360 °
  • Max. switching power
    800 W
  • Max. starting current
    7 A
  • With alarm function
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,115
Length (m) 0,047
Depth (m) 0,115
