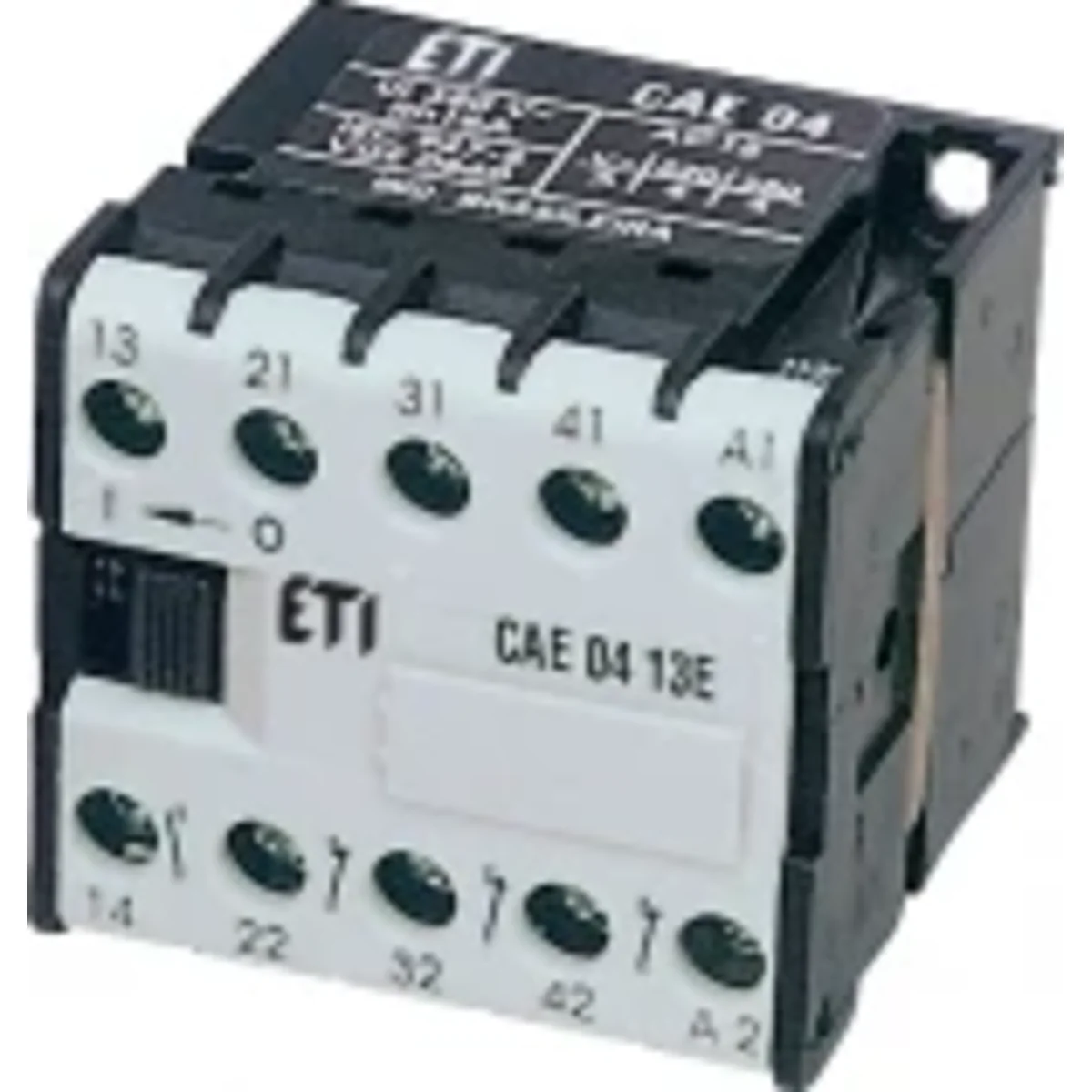

Auxiliary contactor CAE04.31-230-50/60Hz 004641363

local index:
ATA028ETIP
Catalog No:
004641363
EAN code:
7890355109281
Manufacturer: ETI POLAM
Number of poles: 3
Rated insulation voltage [V]: 1000
Working temperature [°C]: from -25 to +55
Price:
18,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Miniature auxiliary contactors are designed to create complex control, regulation and automation systems. Due to their small dimensions, they allow you to reduce the amount of space needed in the switchgear. Additional time relays (on-delay, off-delay, star/delta relay) enable simple functions. Miniature motor contactors are designed for remote control and protection (together with thermal relays) of electric motors and other receivers whose power does not exceed 7.5kW (at 400V voltage and AC3 operation).

Advantages:

  • AC-3 operating type up to 16A load.
  •  Contactors for AC and DC are made in the same size, which facilitates design and use.
  •  Rated insulation voltage - 690V.
  •  Low power consumption and low power losses (heating) allows for direct control (without a relay) by means of a PLC controller.
  •  extensive accessories, compact design and quick assembly on a TH35 rail and on a printed circuit board.
  •  Protection against accidental touch - IP20 protection level

Technical data

  • Number of poles
    3
  • Working temperature [°C]
    from -25 to +55
  • Compliance with standards
    IEC/EN 60 947, DIN VDE 0660, UL, CSA
  • Rated insulation voltage [V]
    1000
  • Type
    CEM80.11-230-50/60Hz
  • PKWIU
    27.12.23.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Voltage type for actuating
    AC
  • Connection type auxiliary circuit
    Screw connection
  • Number of auxiliary contacts as normally open contact
    3
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Rated operation current Ie, 400 V
    16 A
  • Number of auxiliary contacts as normally closed contact
    1
