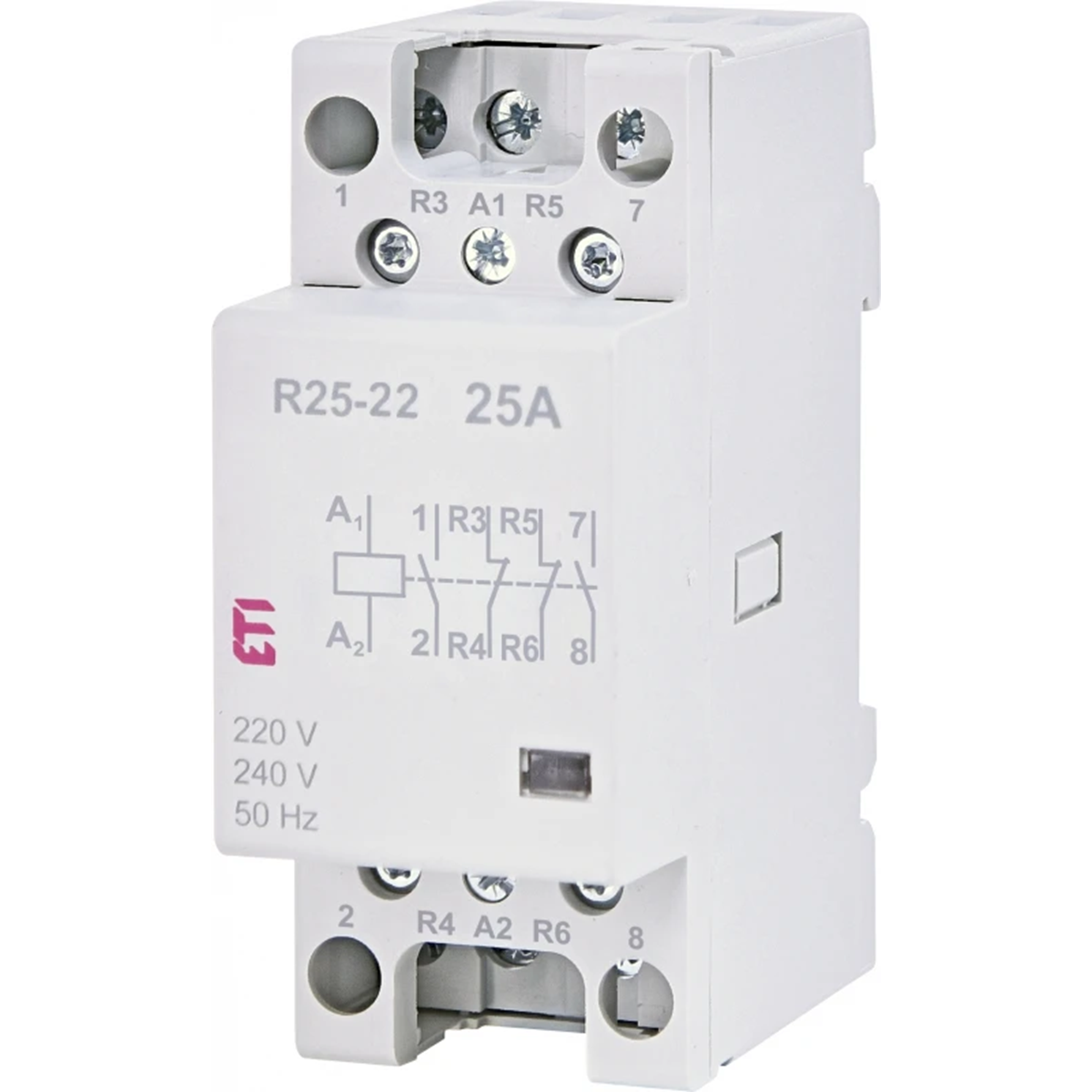

Modular contactor 25A 2 NO and 2 NC contacts (2 mod. 4 poles) R 25-22 230 002462340
local index:
ATA033ETIP
Catalog No:
002462340
EAN code:
5904722903494
Manufacturer:
ETI POLAM
Coil voltage [V]: 230
Rated voltage [V]: 230
Rated insulation voltage [V]: 400
Price:
44,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Control of lighting, heating, ventilation, etc. power supply systems.
Advantages:
- low-current coil control
- design for 24V AC and 230V AC,
- large number of variants (contacts 4-0, 1-3, 2-2, 3-1, 0-4), < li> high switching frequency (600/300 cycles/h),
- short response time to the control impulse,
- high durability < li> connection terminals can be sealed,
- quiet operation as standard for R40, R63.
Technical data
-
Coil voltage [V]230
-
Rated insulation voltage [V]400
-
Number of modules2
-
Rated voltage [V]230
-
Rated operational current [A]25
-
PKWIU27.12.23.0
Other technical data
-
Rated operating voltage230 ... 400 V
-
Rated excitation voltage230 ... 230 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact2
-
Built-in depth60 mm
-
Degree of protection (IP)IP20
-
Rated operation current25 A
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact2
-
Slider for hand switchNo
-
Additional equipment possibleYes
Manufacturer details
-
ManufacturerETI-POLAM Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18
-
E-mail
-
Tax identification number5681370113
-
GLN5909000467408
Bulk packaging
| A kind of package | Pudełko | Pudełko |
| Quantity | 6 pcs. | 60 pcs. |
| Weight (kg) | 1,260 | - |
| Volume (m3) | 0,001 | - |
| Width (m) | 0,216 | - |
| Length (m) | 0,090 | - |
| Depth (m) | 0,073 | - |
