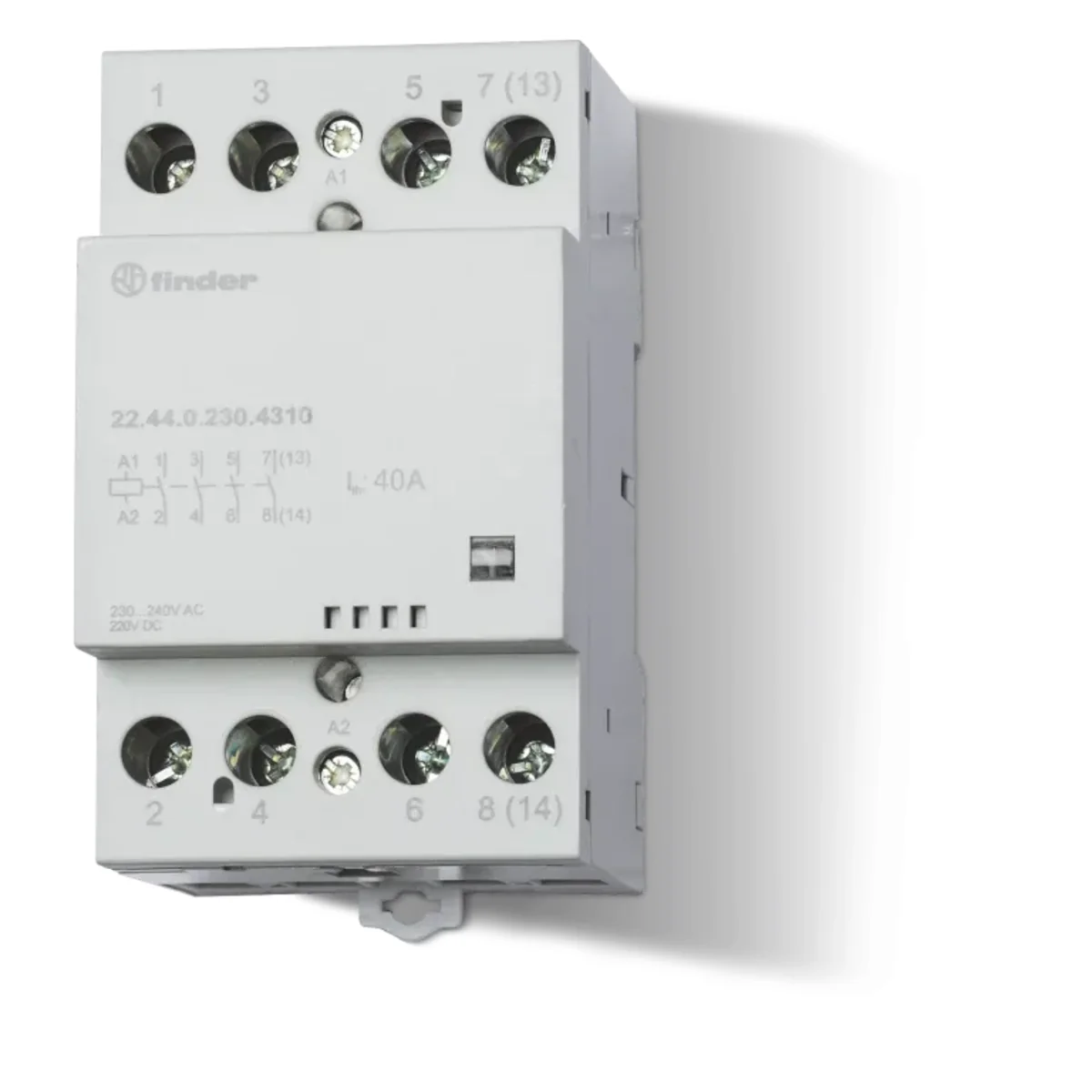

SERIES 22 40A 4 pole modular contactor 224402304310PAS

local index:
ATA007FIND
Catalog No:
224402304310PAS
EAN code:
8012823376226
Manufacturer: FINDER
Maximum switching voltage [V]: 480
Contact material: AgSnO2
Rated voltage [V]: 400
Price:
73,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 27 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Modular contactor 40 A - 4 poles of the 22 series, from the manufacturer FINDER. Product part number is 22.44.0.230.4310PAS.

  • Z and R contact with 3mm gap, double contact gap.
  • Continuous operation possible for coil and contacts.
  • AC/DC power supply (with protective varistor).
  • Safe separation (increased insulation) between coil and contacts.
  • Mechanical indicator as standard.
  • Auxiliary contacts according to EN 60947-5-1 (mechanically coupled contacts).
  • Contact material AgSnO2.
  • < li>Compliant with EN 61095: 2009.
  • For mounting on 35mm DIN rail (EN 60715).
  • For high switching currents 176 A .
  • Number of contacts: 4 CO, (or 3 NO + 1 CO or 2 NO + 2 CO) ≥ 3 mm.
  • Max. switching capacity for AC1 / AC-7a (for 1 contact at 400 V): 16000 VA.
  • Rated current for AC3 / AC-7b (400 V): 22 A.
  • 3-phase motor load. (400 - 440 V AC): 11 kW.
  • Rated current for AC-5a (for 1 contact at 250 V): 20 A.
  • Permissible load :
    • 230V incandescent/halogen [W]: 4000.
    • fluorescent lamps with stat. electronic [W]: 1500.
    • fluorescent lamps with stat. electromechanical [W]: 1500.
    • CFL [W]: 1000.
    • 230 V LED [W]: 1000.
    • NN halogen or LED with stat. electron. [W]: 1000.
    • NN halogen or LED with stat. electromechanical [W]: 1500.
  • Coil data:
    • Rated voltage (UN): 12 - 24 - 110…120 (110 V DC) - 230…240 (220 V DC).
    • AC/DC power consumption: 6VA (50 Hz)/W.
    • Supply voltage range: (0.85… 1.1)UN DC/AC (50/60 Hz).
    • Backup voltage: 0.85 UN DC/AC (50/60 Hz).
    • Drop-out voltage: 0.2 UN DC/AC (50/60 Hz).
  • Coil-contact insulation strength (1.2/50 µs) : 6 kV.

Technical data

  • Maximum switching voltage [V]
    480
  • Rated voltage [V]
    400
  • Family
    22
  • Rated inrush current [A]
    176
  • Terminal type
    Threaded
  • Contact material
    AgSnO2
  • Rated current [A]
    40
  • Level of security
    IP20
  • Rated switching power for AC1 [VA]
    16000
