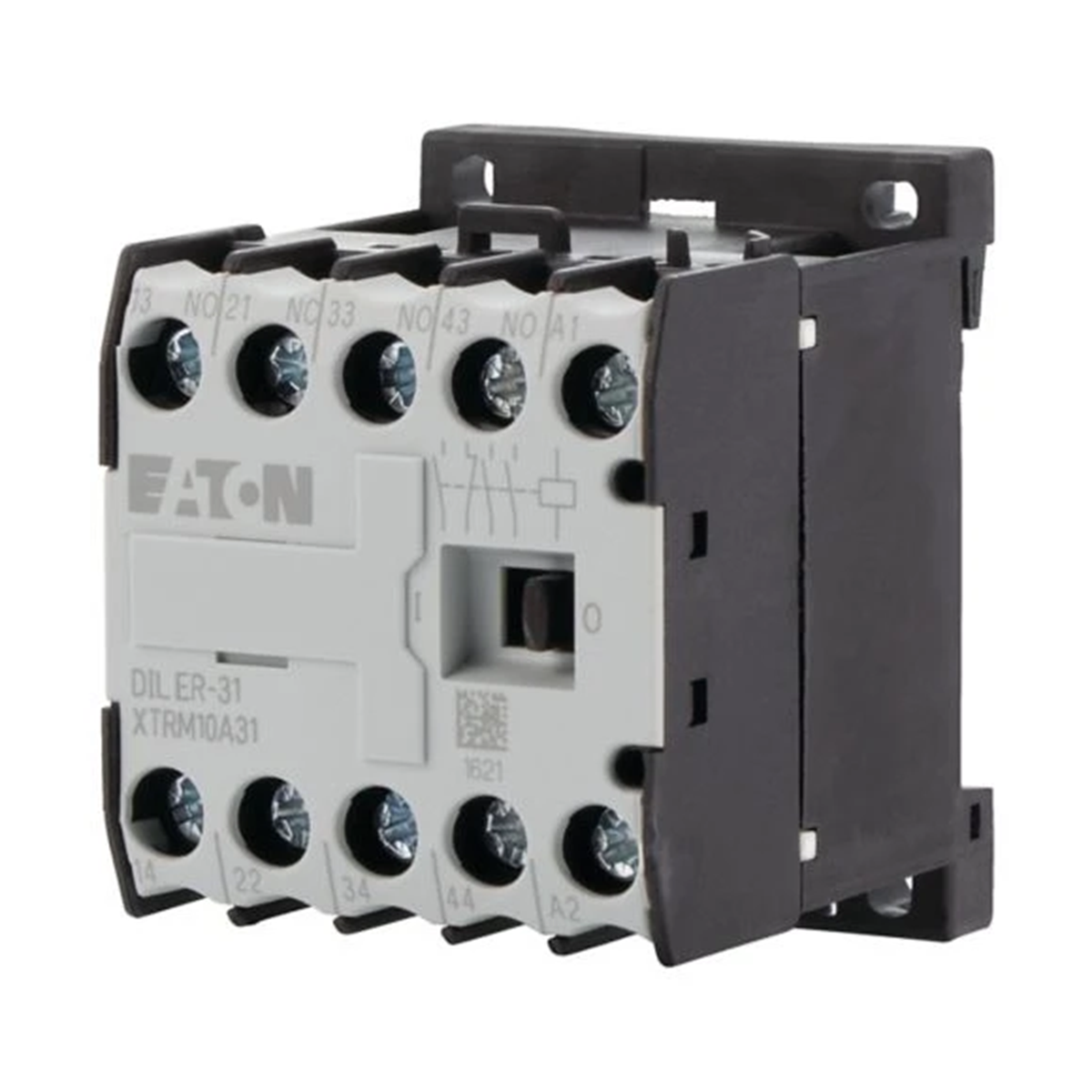

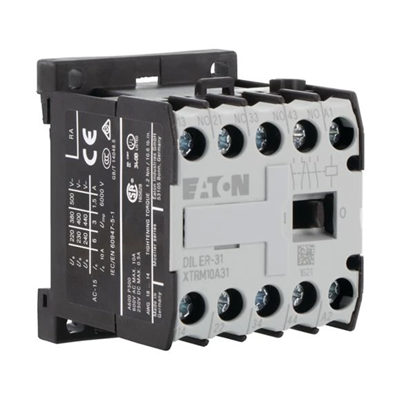

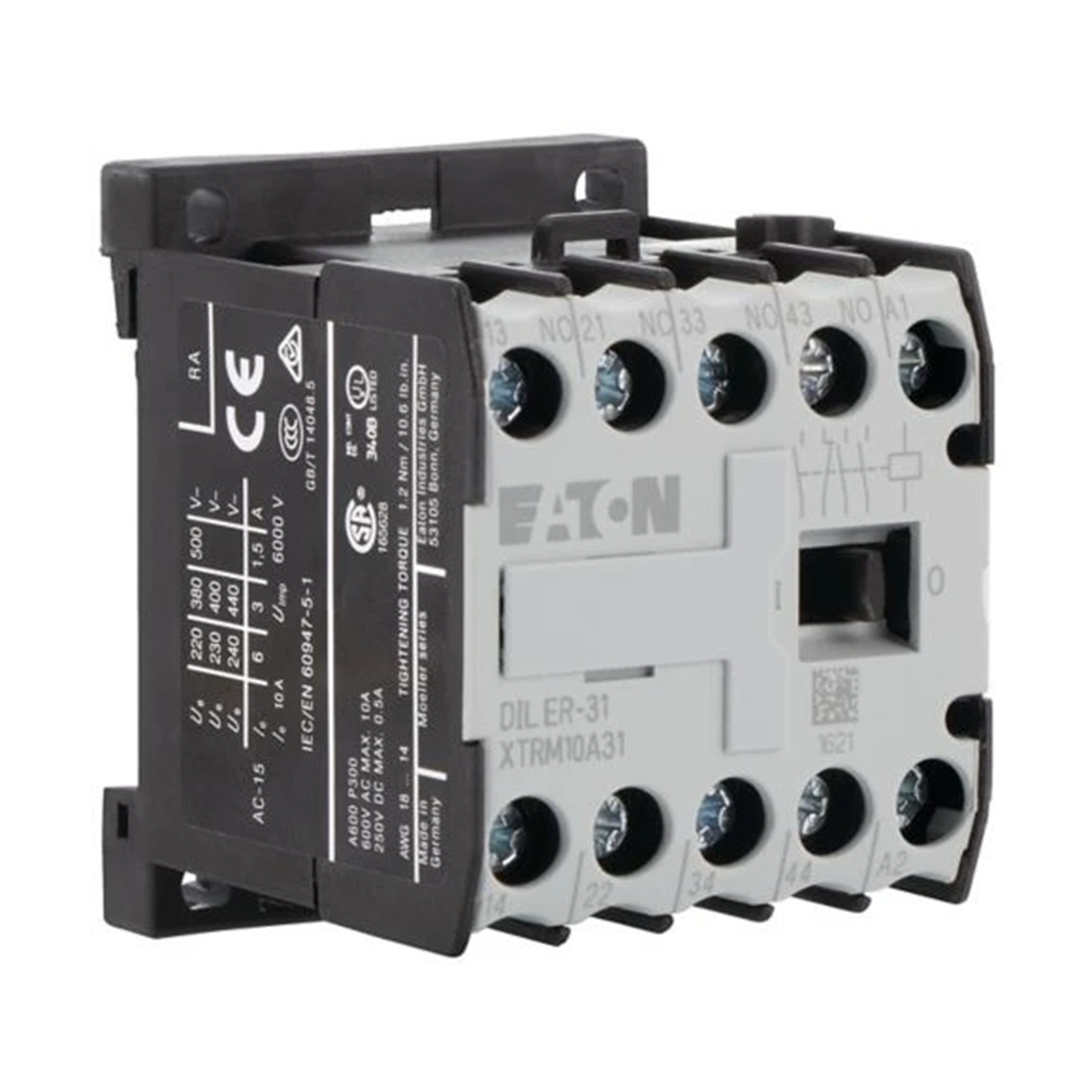

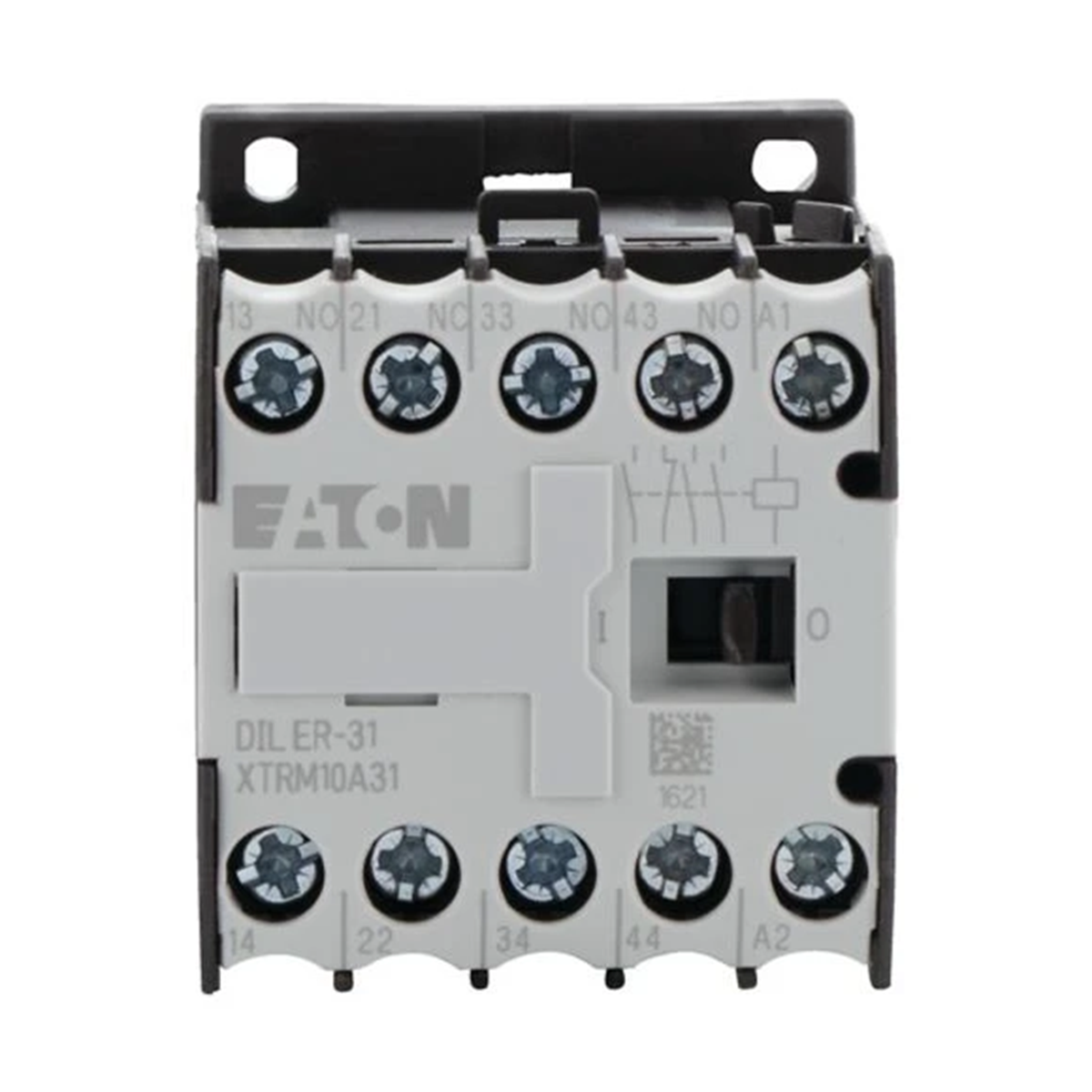

Auxiliary contactor DILER-31(230V50HZ, 240V60HZ) 051768
local index:
ATA303MOEL
Catalog No:
051768
EAN code:
4015080517689
Price:
67,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to clipboard
Print
Ask about the product
Product description
Small auxiliary contactors, auxiliary contactors. AC DEALER.
Technical data
-
Rated voltage [V]230
-
Rated current [A]3
Other technical data
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation current Ie, 400 V3 A
-
Mounting methodDIN-rail/screw
-
Number of auxiliary contacts as normally closed contact1
-
Number of auxiliary contacts as normally closed contact, delayed switching0
-
Number of auxiliary contacts as change-over contact0
-
Suitable for manual operationNo
-
Rated control supply voltage AC 60 Hz240 ... 240 V
-
Voltage type for actuatingAC
-
Connection type auxiliary circuitScrew connection
-
InterfaceNo
-
Number of auxiliary contacts as normally open contact3
-
Number of auxiliary contacts as normally open contact, leading0
-
With LED indicationNo
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,170 | 0,184 | 0,920 |
| Volume (m3) | 0,000 | 0,000 | 0,001 |
| Width (m) | 0,045 | 0,047 | 0,055 |
| Length (m) | 0,052 | 0,054 | 0,240 |
| Depth (m) | 0,058 | 0,060 | 0,063 |
