Electrical apparatus
contactors
AC contactors

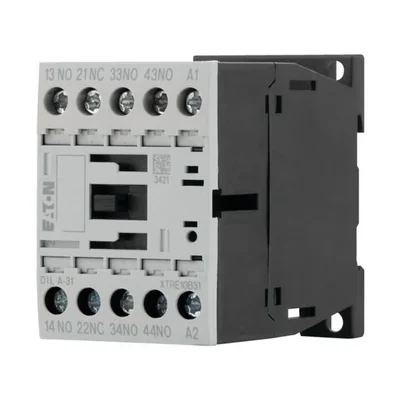

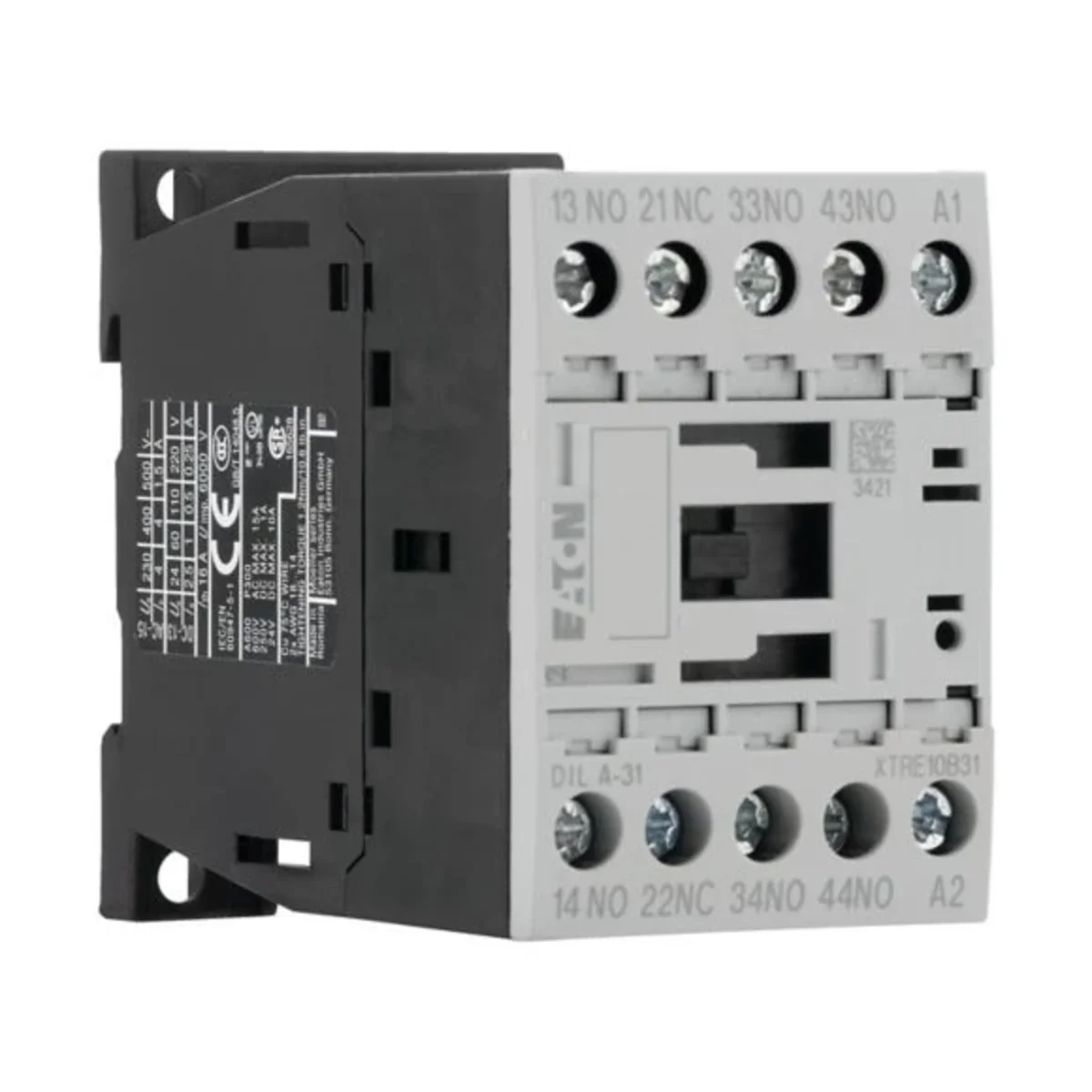

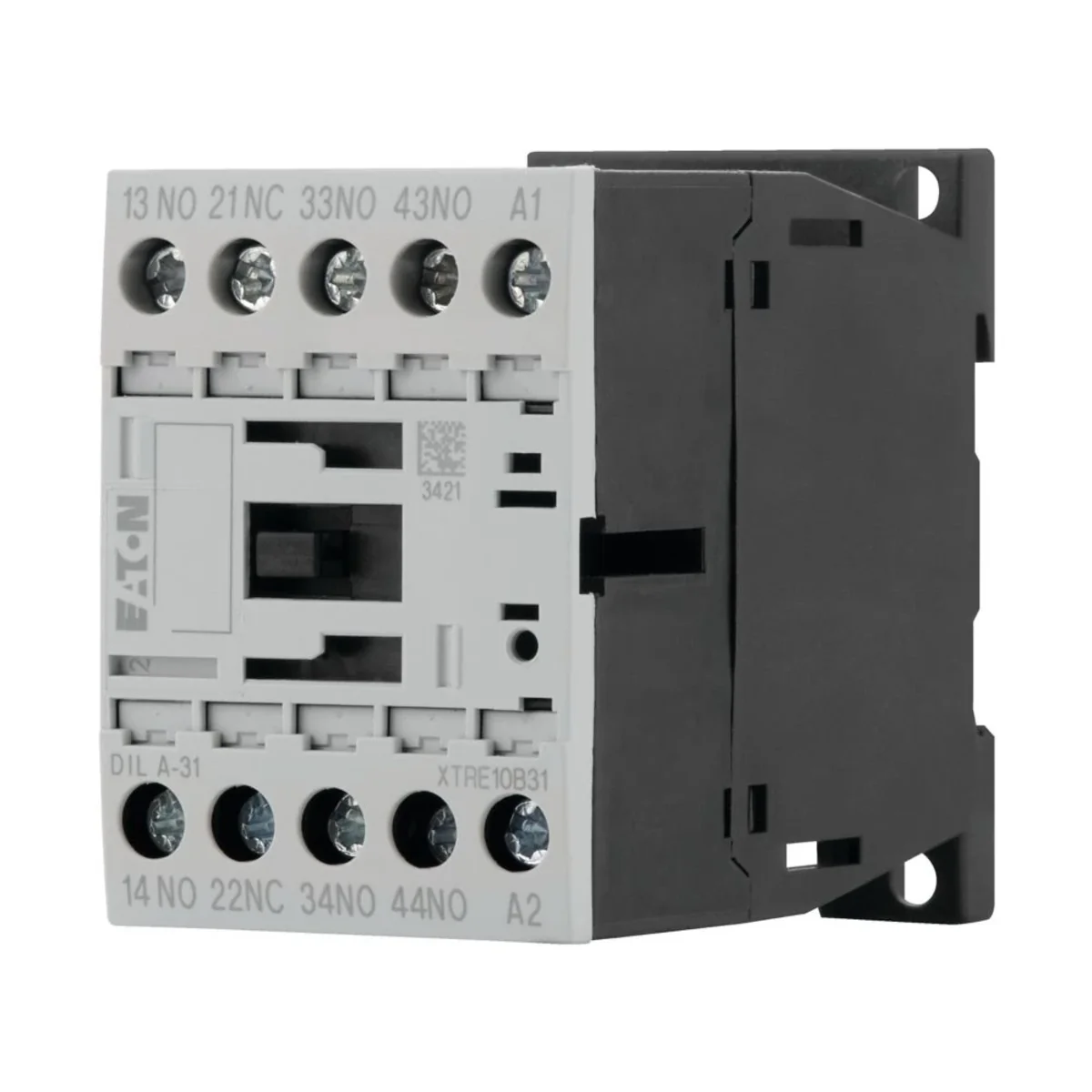

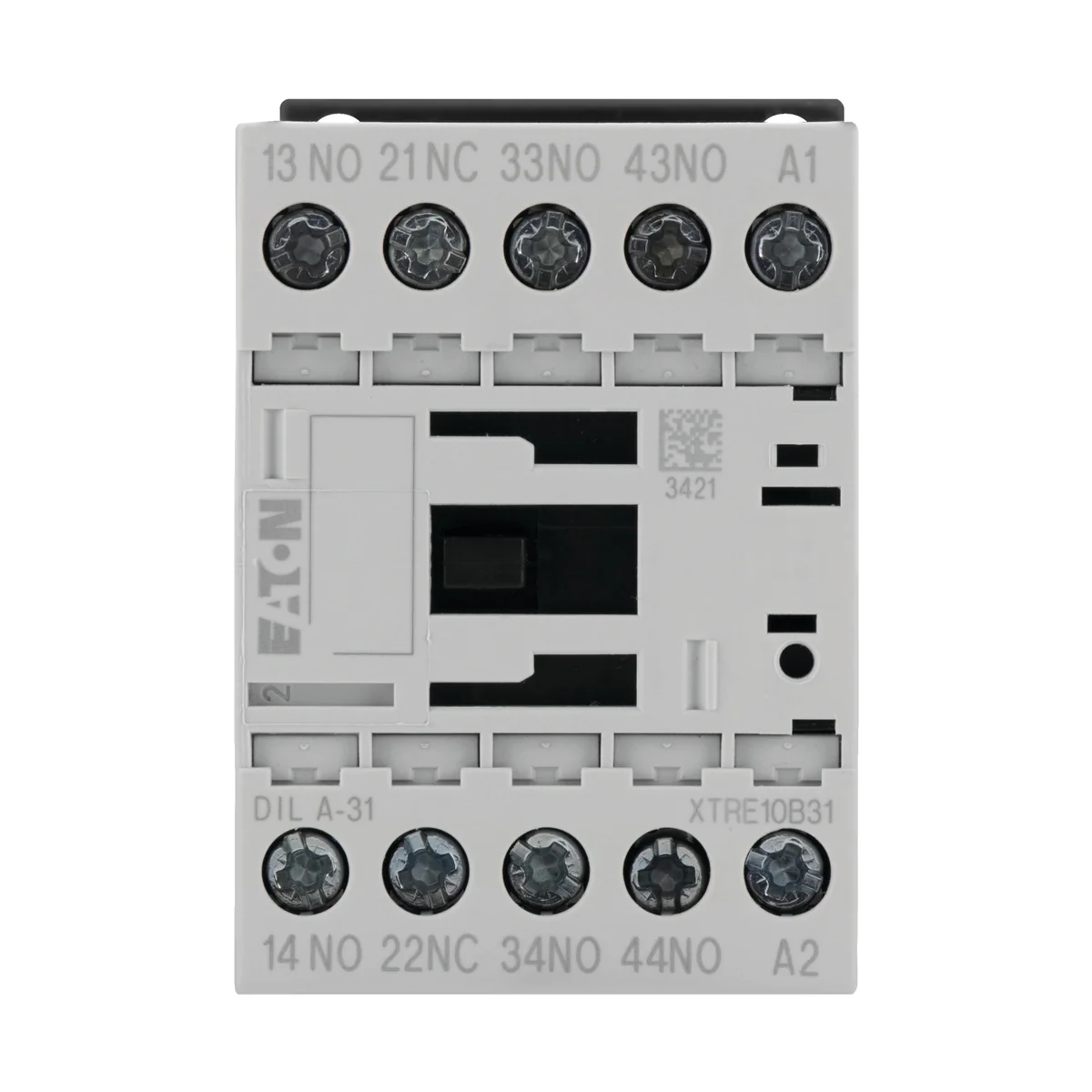

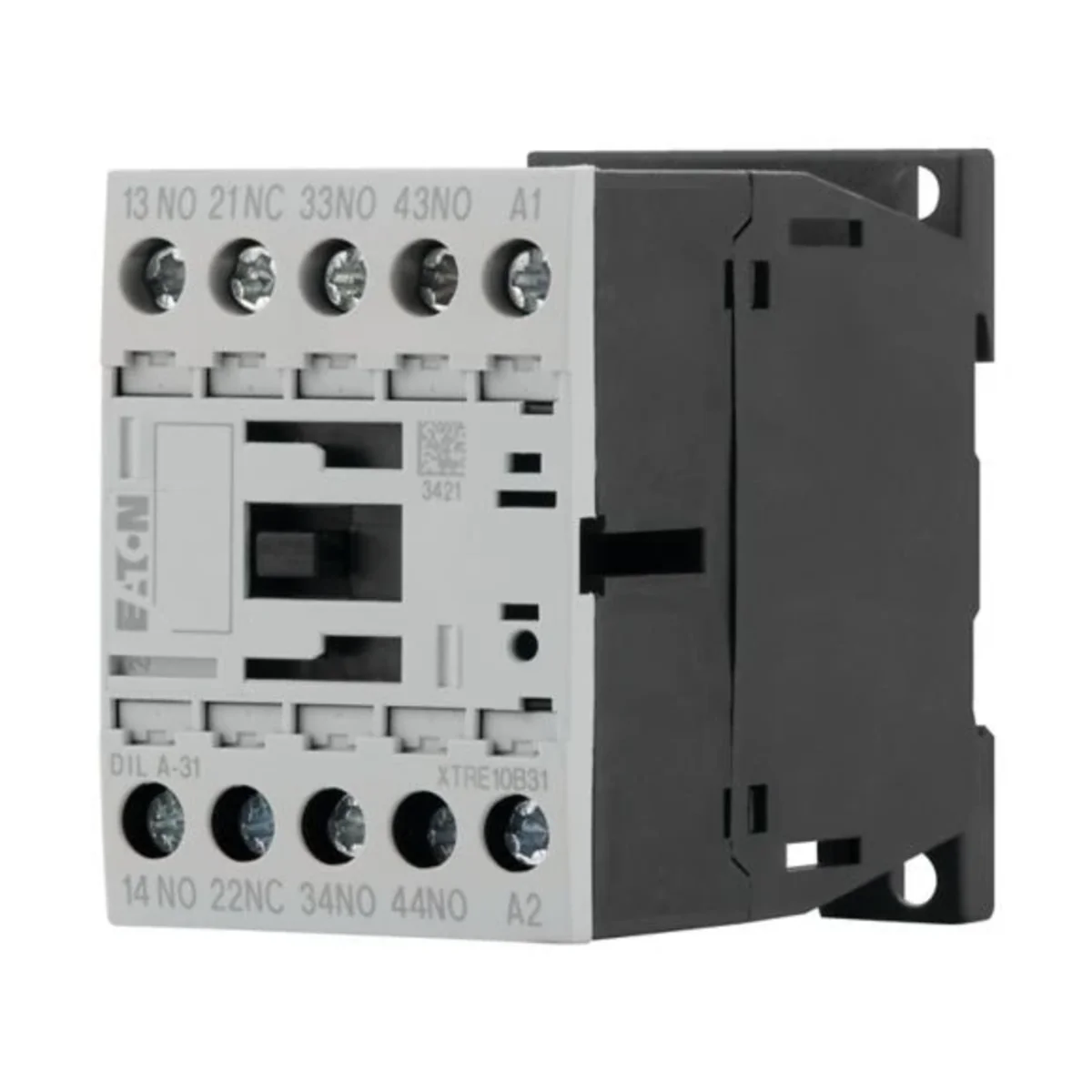

Auxiliary contactor DILA-31(230V50HZ,240V60HZ) 276364
local index:
ATA097MOEL
Catalog No:
276364
EAN code:
4015082763640
Click on the photo to enlarge
Manufacturer:
EATON
Rated voltage [V]:
230
See full description
Price:
69,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Auxiliary contactors Control voltages - AC. With screw clamps.
Technical data
Rated voltage [V]
230
Other technical data
Rated control supply voltage AC 50 Hz
230 ... 230 V
Rated control supply voltage DC
0 ... 0 V
Rated operation current Ie, 400 V
4 A
Mounting method
DIN-rail/screw
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally closed contact, delayed switching
0
With LED indication
No
Rated control supply voltage AC 60 Hz
240 ... 240 V
Voltage type for actuating
AC
Connection type auxiliary circuit
Screw connection
Interface
No
Number of auxiliary contacts as normally open contact
3
Number of auxiliary contacts as normally open contact, leading
0
Number of auxiliary contacts as change-over contact
0
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
0,253
Volume (m3)
0,000
Width (m)
0,046
Length (m)
0,079
Depth (m)
0,070
