STB 50-2 Al/Cu screw terminal block 87320 SIMBLOCK blue 81002003

local index:
TES068SIME
Catalog No:
81002003
EAN code:
5907813233135
Manufacturer: SIMET
Length [mm]: 70
Color: Blue
Number of poles: 1
Price:
10,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 160 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

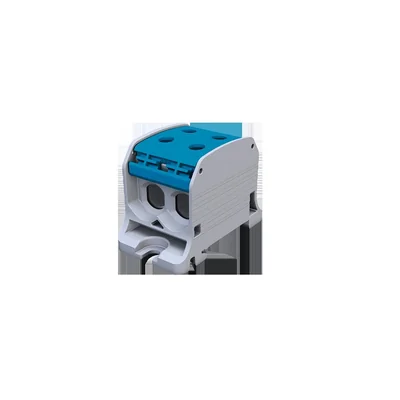

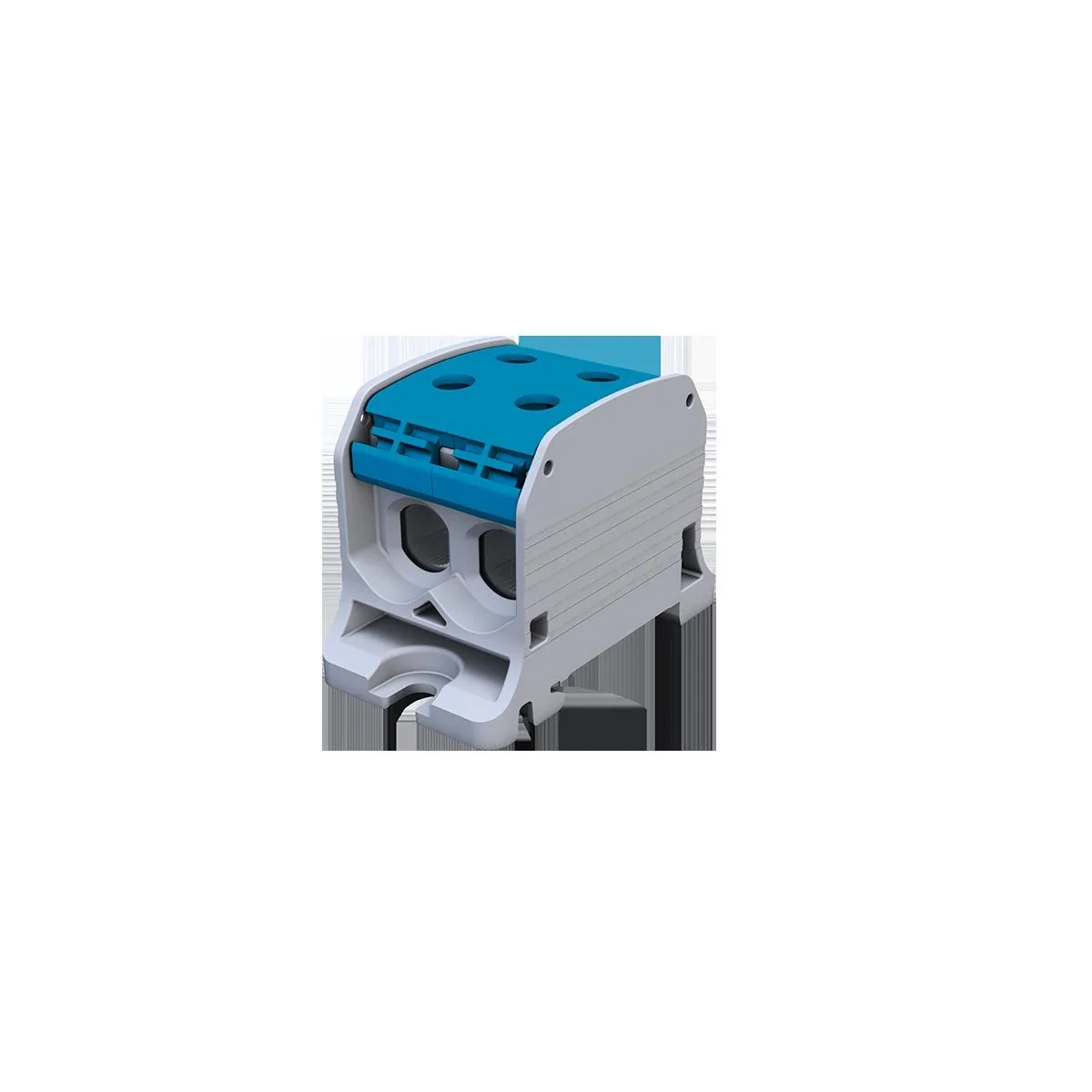

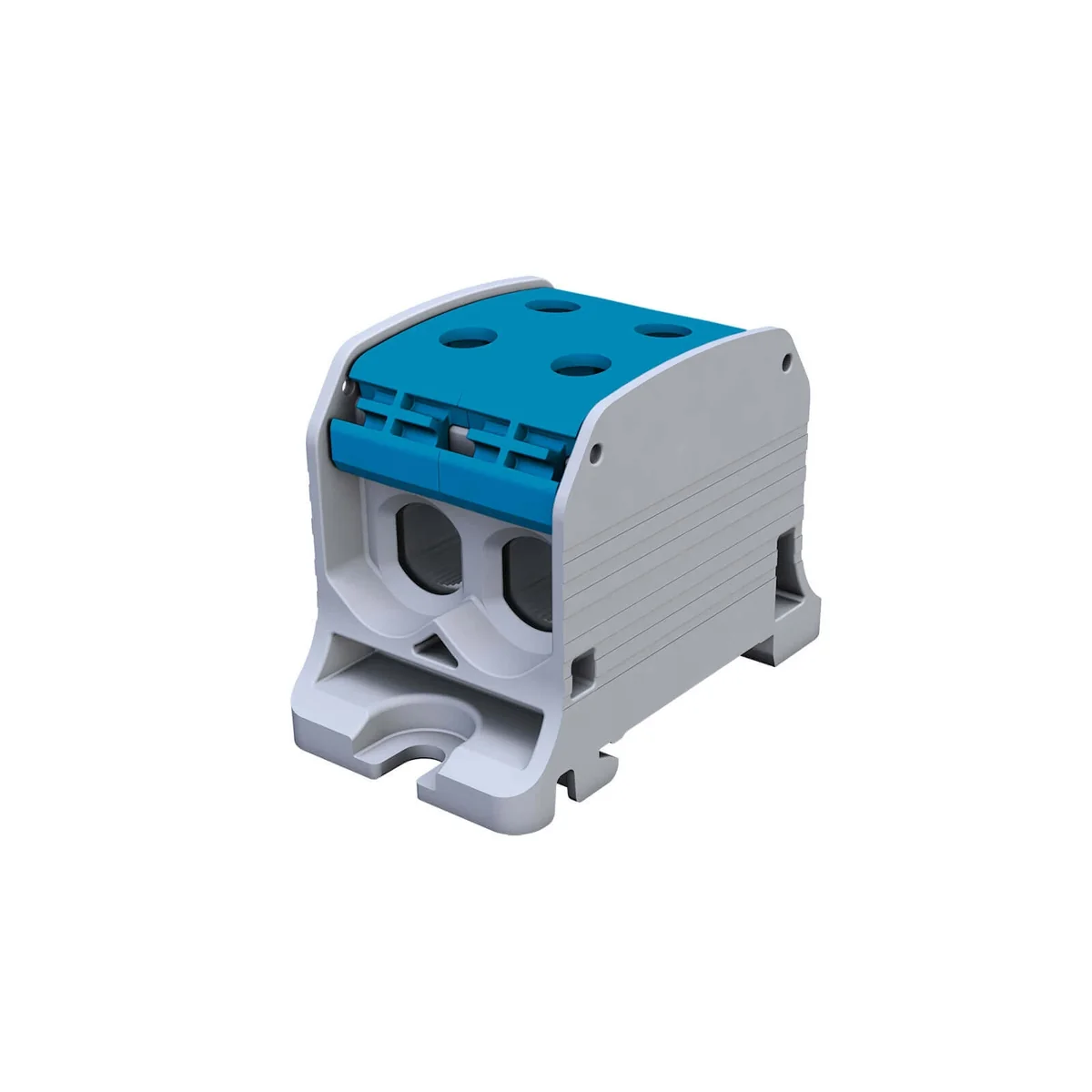

STB 50-2 Al/Cu 87320 SIMBLOCK threaded rail connector from the manufacturer Simet. The product catalog number is 81002003. p>

  • Rated voltage [V]: 1000 AC/DC.
  • Rated current Cu [A]: 150.
  • Rated current Al [A]: 150 .
  • Entry (wire) [mm²]: 4 x (6 - 50).
  • Entry (cord with ferrule) [mm²]: 4 x (4 - 35) .
  • Mounting: TS 35 rail / mounting plate.



SERIES DESCRIPTION

A series of aluminum threaded connectors STBs are distinguished by a wide range of applications - they are used in industrial equipment, automation, wind turbines, solar technology and electrotechnical switchboards. Such high functionality provides significant advantages in wire connection technology. All STB series connectors are safe for the installer. STB threaded connectors have aluminum clamps. Thanks to the special coating, these terminals are not only suitable for aluminum conductors, but also for copper conductors.

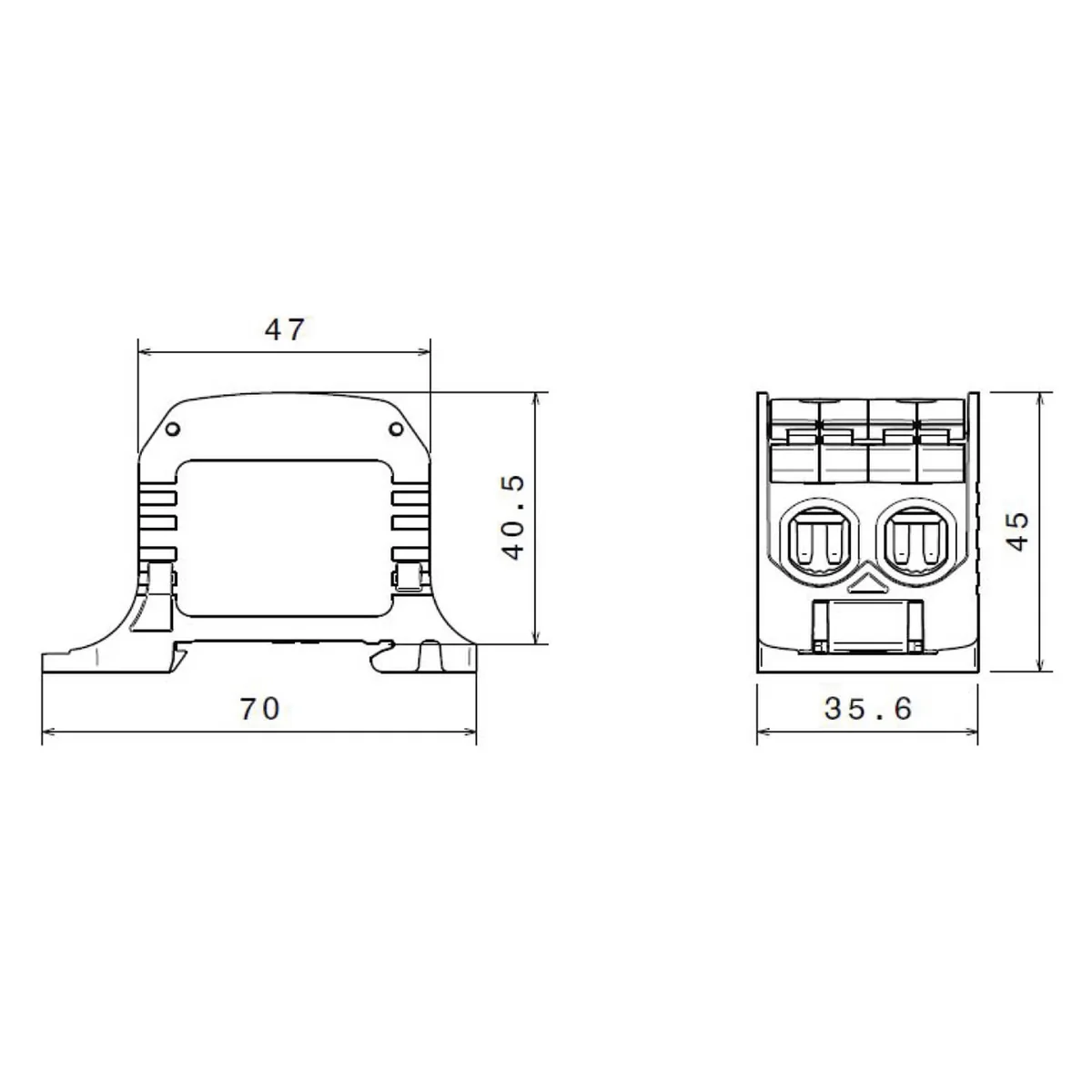

Technical data

  • Length [mm]
    70
  • Number of poles
    1
  • Rated current [A]
    150
  • Height [mm]
    45
  • PKWIU
    27.33.13.0
  • Color
    Blue
  • Rated voltage [V]
    1000
  • Width [mm]
    35.6
  • cross section [mm²]
    4 x 50
