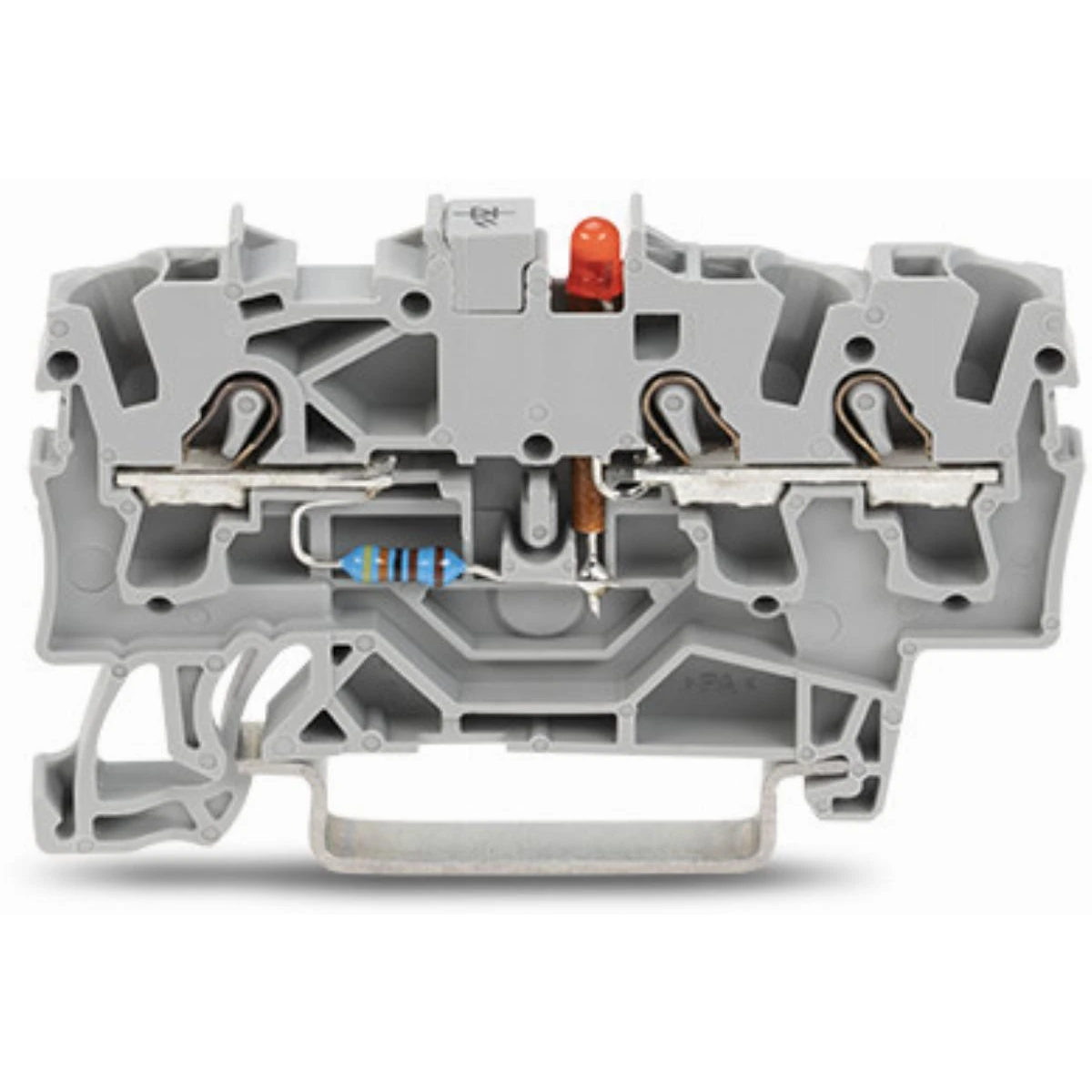

TOPJOBS 3-wire terminal block 2.5mm² with LED gray 2002-1321/1000-413
local index:
TES039WAGO
Catalog No:
2002-1321/1000-413
EAN code:
4045454537692
Price:
5,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
TOPJOBS 3-wire terminal block 2.5 mm2 with LED gray
Technical data
-
Certifications/StandardsIEC/EN 60947-7-1
-
ColorGray
-
Number of potentials1
-
The plane of descriptionDescription in the middle / side
-
Gauge [AWG]22
-
Series2002
-
Wire connection techniqueCAGE CLAMP
-
Height [mm]33
-
Maximum stripping length [mm]12
-
Insulation materialPA 6.6 V0
-
Depth [mm]59.5
-
ConstructionHorizontal design
-
Rated voltage [V]24
-
Rated current [A]0.025
-
Type of wiringFront wiring
-
Width [mm]5.2
-
Weight [g]6.3
-
Accurate colorGray
-
Minimum stripping length [mm]10
-
Number of connectors3
Other technical data
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section fine-strand with cable end sleeve0.75 ... 2.5 mm²
-
Connectable conductor cross section multi-wired0.25 ... 2.5 mm²
-
Rated voltage24 V
-
Type of electrical connection 2Spring clamp connection
-
Number of levels1
-
Internally connected stagesNo
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu33 mm
-
Closing plate requiredYes
-
Type of componentLED
-
Connectable conductor cross section fine-strand without cable end sleeve0.25 ... 4 mm²
-
Connectable conductor cross section solid-core0.75 ... 4 mm²
-
Rated current In0.025 A
-
Type of electrical connection 1Spring clamp connection
-
Connection positionAtop
-
Number of clamp positions per level4
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature105 ... 105 °C
-
Width/grid dimension5.2 mm
-
Length59.5 mm
-
ColourGrey
Bulk packaging
| A kind of package | Karton |
| Quantity | 100 pcs. |
| Weight (kg) | 0,676 |
| Volume (m3) | 0,002 |
| Width (m) | 0,138 |
| Length (m) | 0,277 |
| Depth (m) | 0,048 |
