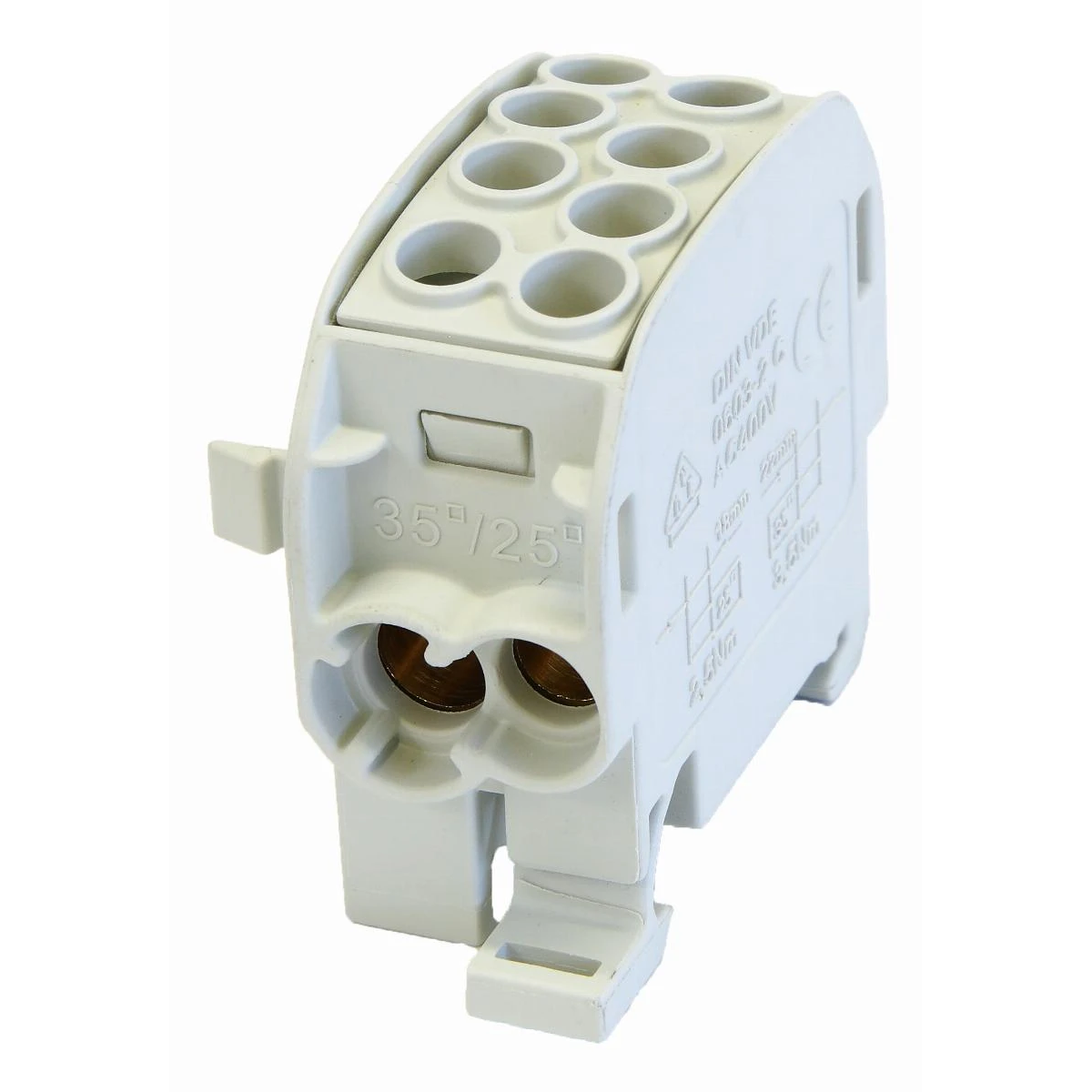

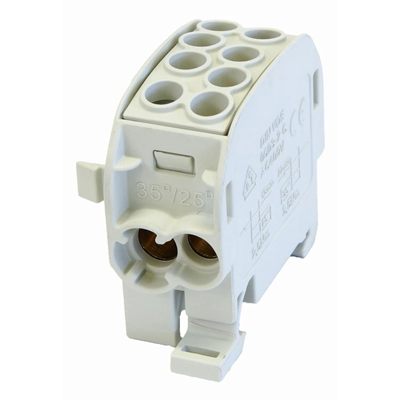

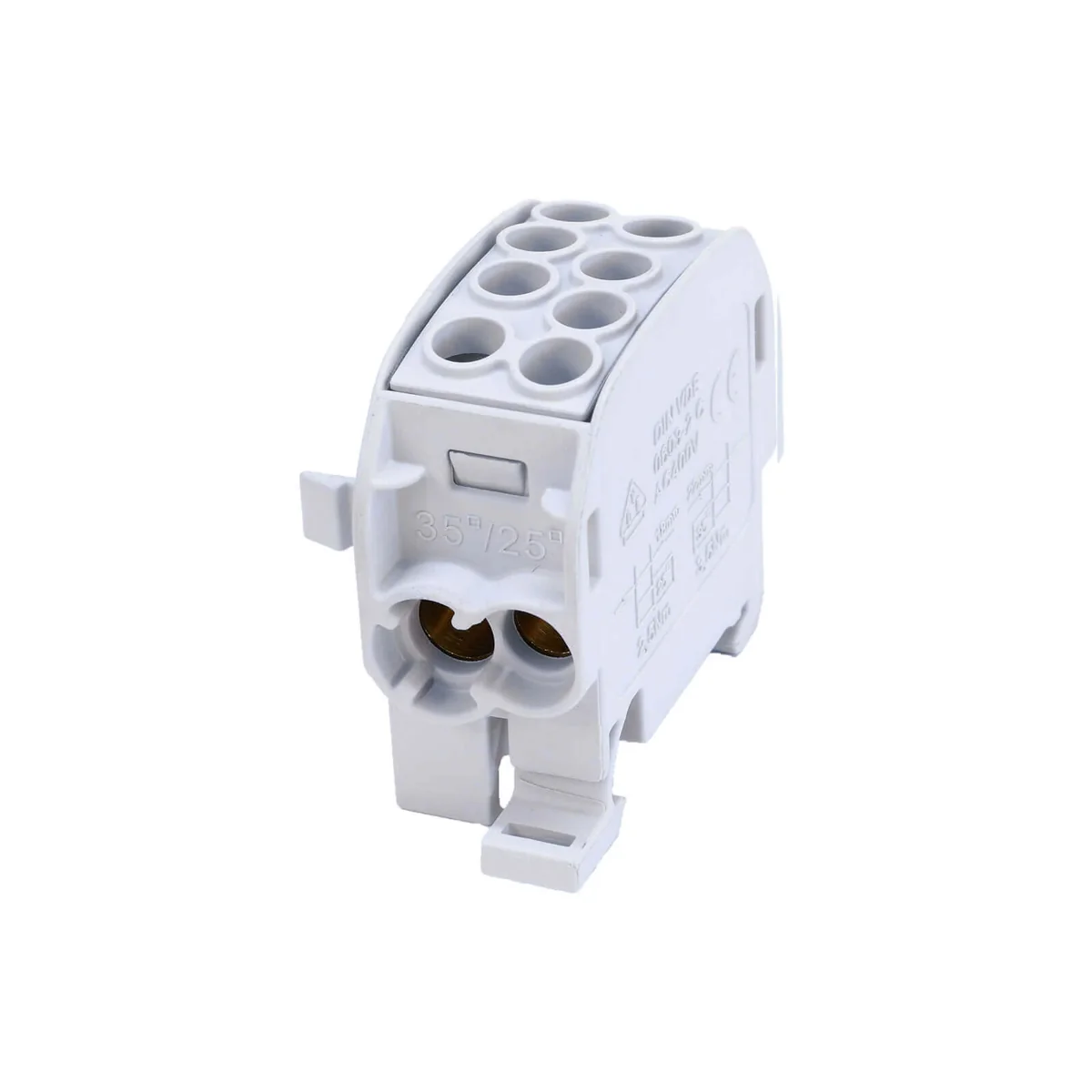

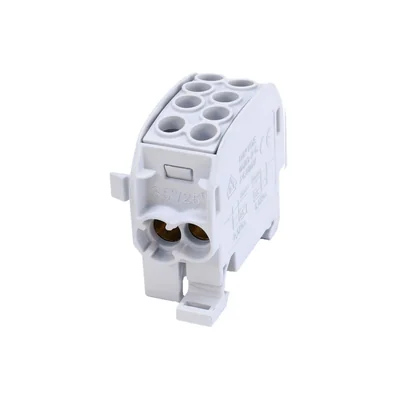

Branch distribution block Al/Cu SCB 35 grey 81502002
local index:
TES123SIME
Catalog No:
81502002
EAN code:
5907813233289
Price:
9,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Distribution block - branching Al/Cu SCB 35 gray intended for
- various round and sector solid conductors,
- wireów multi-core,
- flexible wires,
- copper and aluminum wires.
Blocks are used for AC/DC voltage . They can be used as ordinary serial terminal blocks.

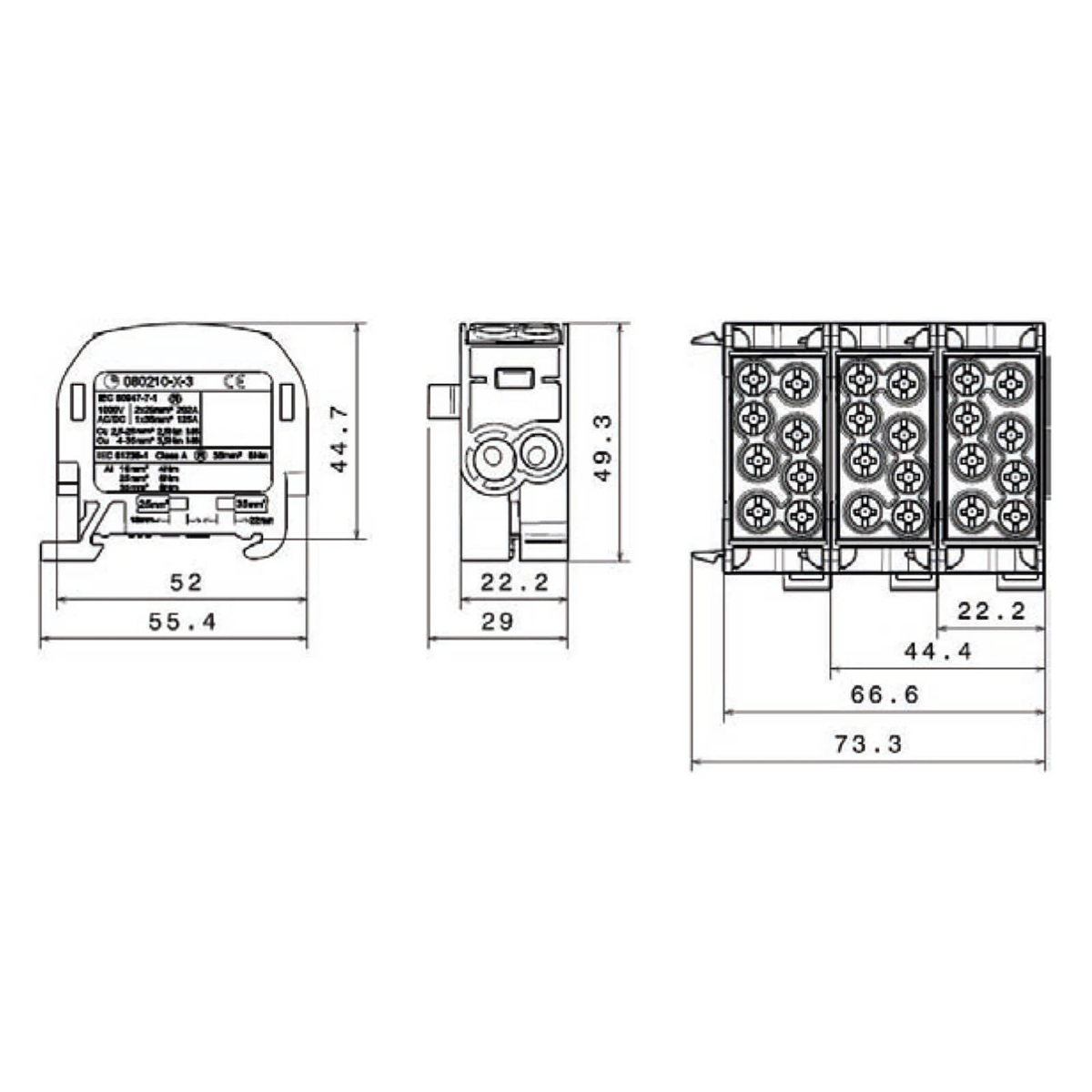

Technical data
-
Depth [mm]55.4
-
ColorGray
-
InstallationOn the TH-35 rail
-
Width [mm]29
-
Wire cross-section [mm²]35
-
Rated current Cu [A]202
-
Number of terminals4
-
Number of poles1
-
Rated voltage [V]1000
-
Height [mm]49.3
-
Rated current Al [A]125
-
PKWIU27.33.13.0
Manufacturer details
-
ManufacturerSIMET S.A.
-
Address58-506 Jelenia Góra al. Jana Pawła II 33
-
Phone number
-
E-mail
-
Tax identification number6112112204
-
GLN5909000603295
