STB 95 Al/Cu 87510 SIMBLOCK threaded rail connector blue 81101003

local index:
TES067SIME
Catalog No:
81101003
EAN code:
5907813233210
Manufacturer: SIMET
Length [mm]: 93
Color: Blue
Number of poles: 1
Price:
8,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 58 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

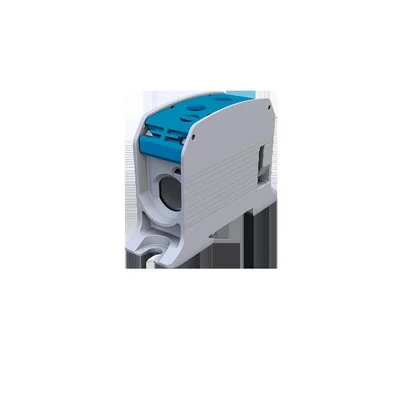

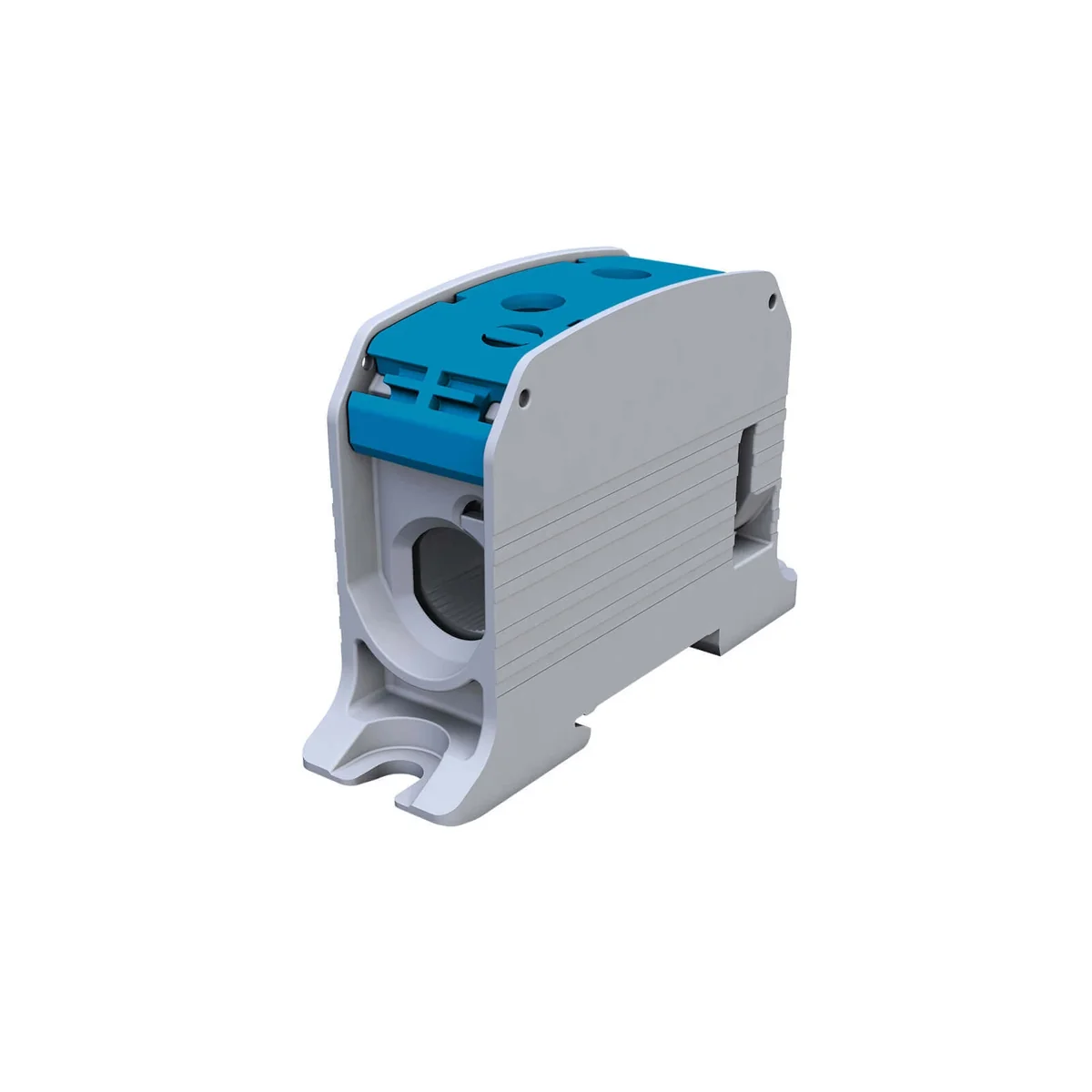

STB 95 Al/Cu 87510 SIMBLOCK threaded rail connector from the manufacturer Simet. The product catalog number is 81101003.

  • Rated voltage [V]: 1000 AC/DC.
  • Rated current Cu [A]: 232.
  • Rated current Al [A]: 200.< /li>
  • Entry (wire) [mm²]: 2 x (16 -95).
  • Entry (cord with ferrule) [mm²]: 2 x (10 -70).< /li>
  • Mounting: TS 35 rail / mounting plate.
  • Measuring connector (wire) [mm²]: 1 x (1.5 - 10).
  • Connector test sockets (cord with ferrule) [mm²]: 1 x (1.5 - 6).
  • The connector has an additional space for a measuring connector. A dedicated OSTB 95 anti-dust cap enables trouble-free access to the measuring connector.



SERIES DESCRIPTION

The STB series of aluminum threaded connectors is distinguished by a wide range of applications - they are used in industrial equipment, automation, wind turbines, solar technology and electrotechnical switchboards. Such high functionality provides significant advantages in wire connection technology. All STB series connectors are safe for the installer. STB threaded connectors have aluminum clamps. Thanks to the special coating, these terminals are not only suitable for aluminum conductors, but also for copper conductors.

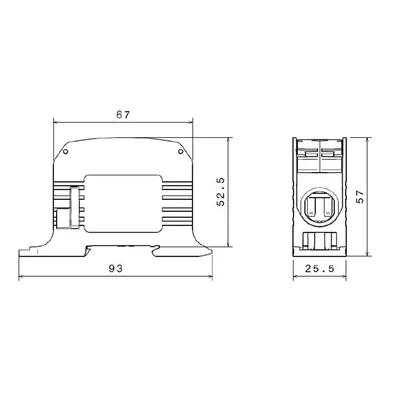

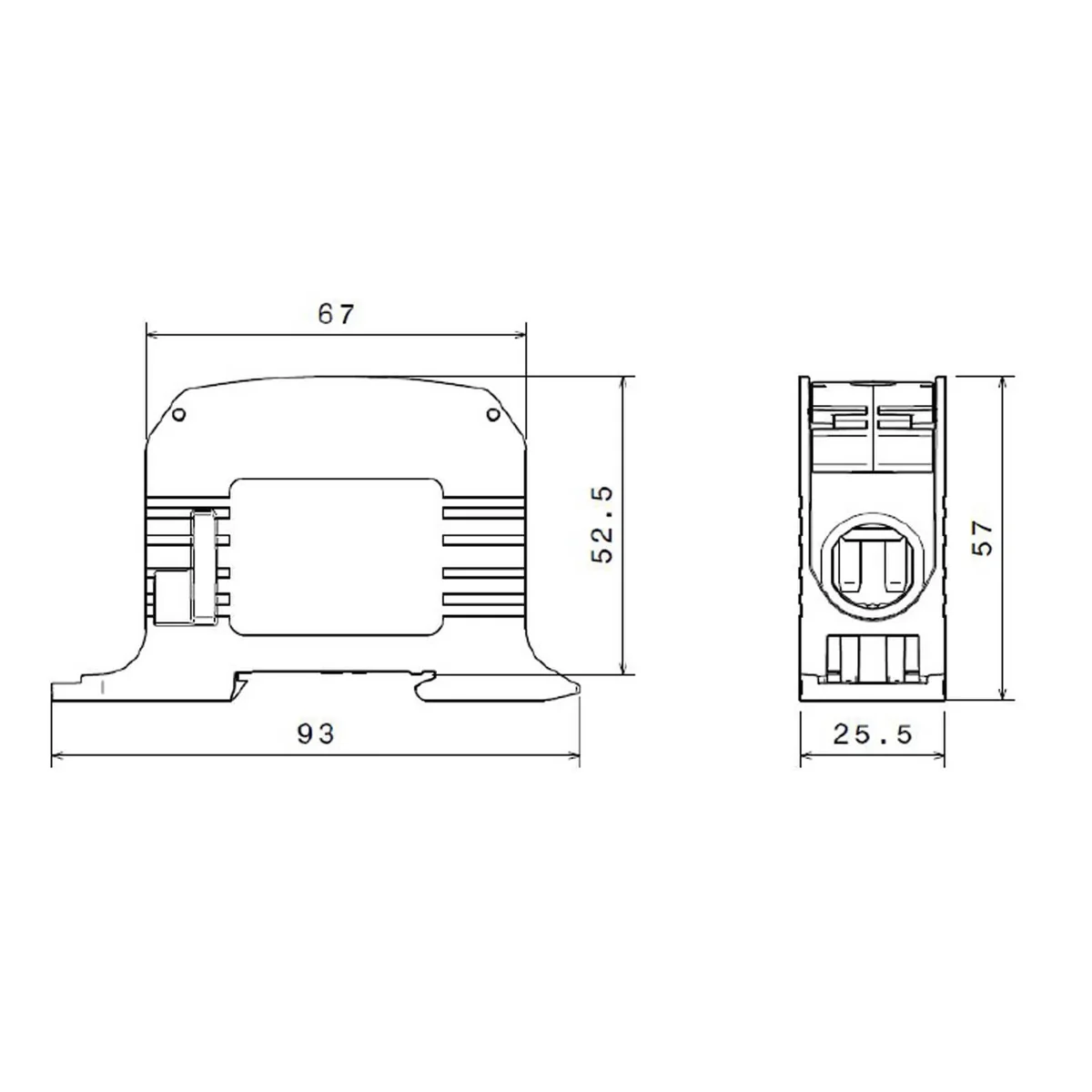

Technical data

  • Length [mm]
    93
  • Number of poles
    1
  • Rated current [A]
    232
  • Height [mm]
    57
  • PKWIU
    27.33.13.0
  • Color
    Blue
  • Rated voltage [V]
    1000
  • Width [mm]
    25.5
  • cross section [mm²]
    2 x 95
