Power switch, 3-pole, 220A, 15kA, 1000V motor protection 119364

Name: Power switch, 3-pole, 220A, 15kA, 1000V motor protection
Brand: EATON
SKU: ALP053MOEL
Price: 1810.63 PLN

local index:

ALP053MOEL

Catalog No:

119364

EAN code:

4015081175000

Power switch, 3-pole, 220A, 15kA, 1000V motor protection

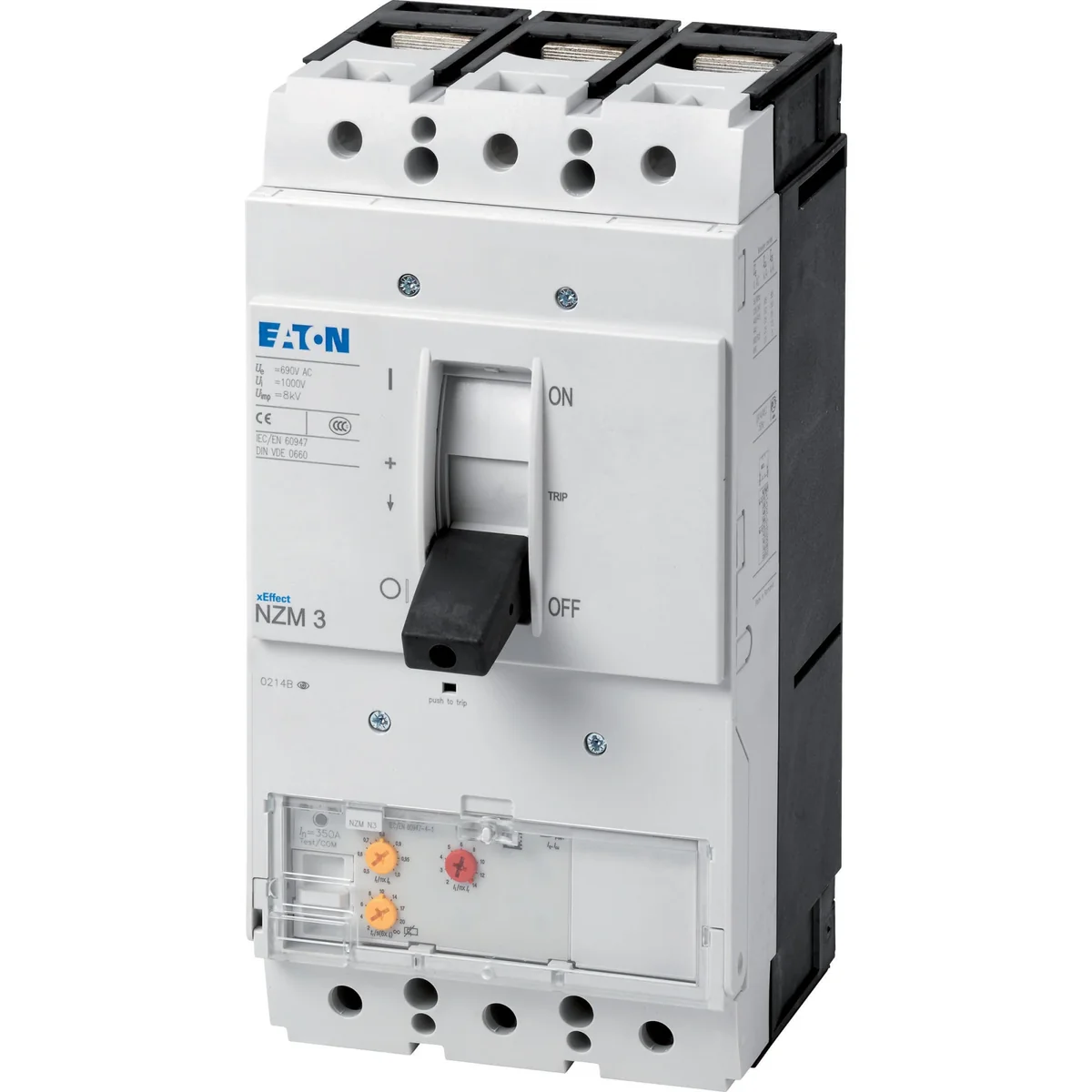

Click on the photo to enlarge

Manufacturer: EATON

Number of poles: 3

Installation: Constant

Operating voltage [V]: 1000

See full description

Price:

1810,63 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

The circuit breakers of the NZM..-ME series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With electronic trip unit to protect the motor with phase failure sensitivity. Notes: Measuring rms value and thermal memory, adjustable delay setting tr: 2-20s at 6xIr and infinity (without overload release), connection method NZM..S1: cover NZM..XKSA required, connection method NZM4..S1: insulated busbar connection (bolt connection NZM4-XKS)

Technical data

Number of poles

3
Operating voltage [V]

1000
Switching capacity [kA]

15

Installation

Constant
Rated current [A]

220

Other technical data

Overload release current setting

110 ... 220 A
With thermal overload protection

Yes
Switch off technique

Electronic
Rated permanent current Iu

220 A
Rated operation power at AC-3, 400 V

110 kW
Type of control element

Rocker lever
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

140 mm

Adjustment range undelayed short-circuit release

220 ... 3080 A
Phase failure sensitive

Yes
Rated operating voltage

1000 ... 1000 V
Rated operation power at AC-3, 230 V

55 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device fixed built-in technique
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

130 kA
Height

275 mm
Depth

166 mm

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	6,340	6,340
Volume (m3)	0,006	0,006
Width (m)	0,140	0,140
Length (m)	0,166	0,166
Depth (m)	0,275	0,275
