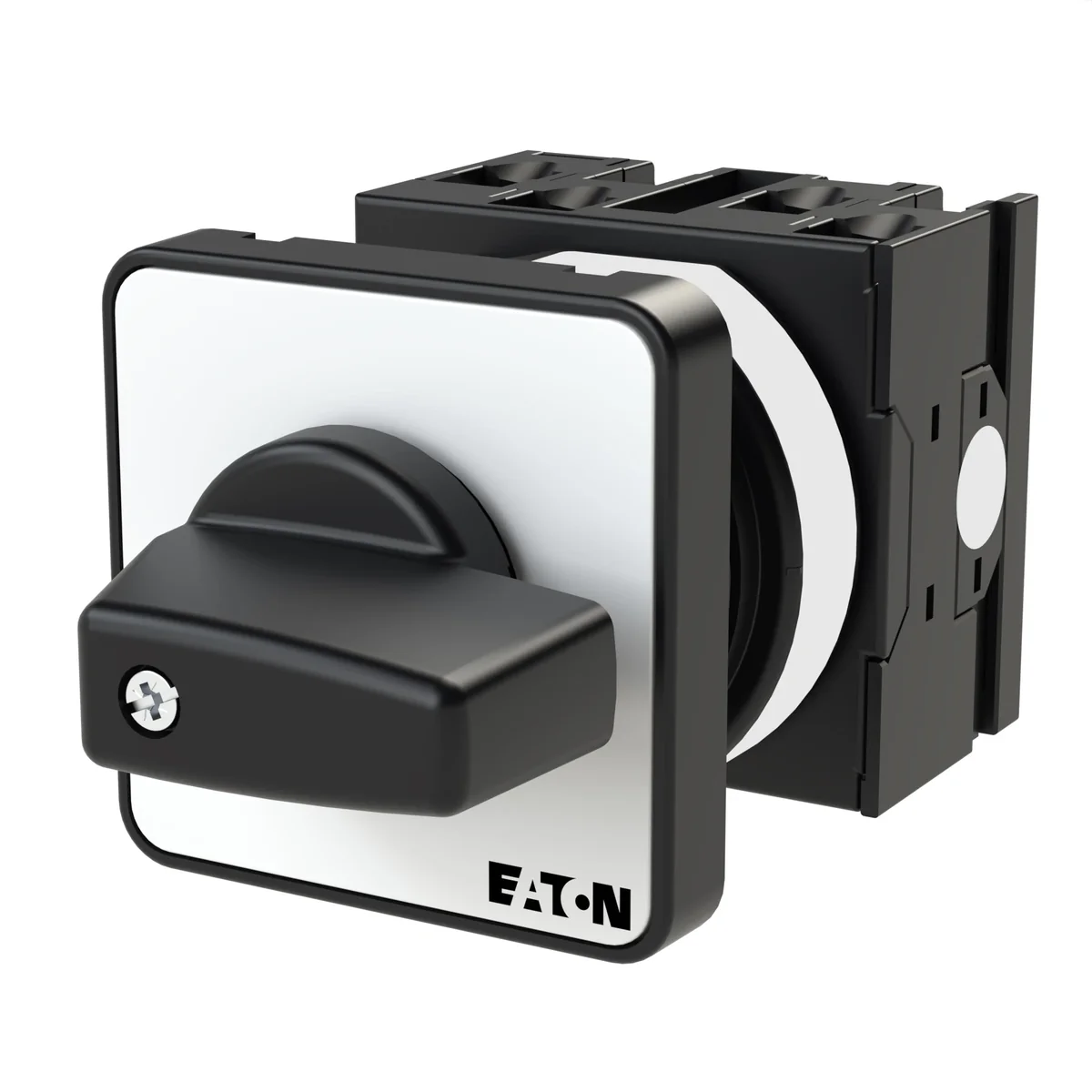

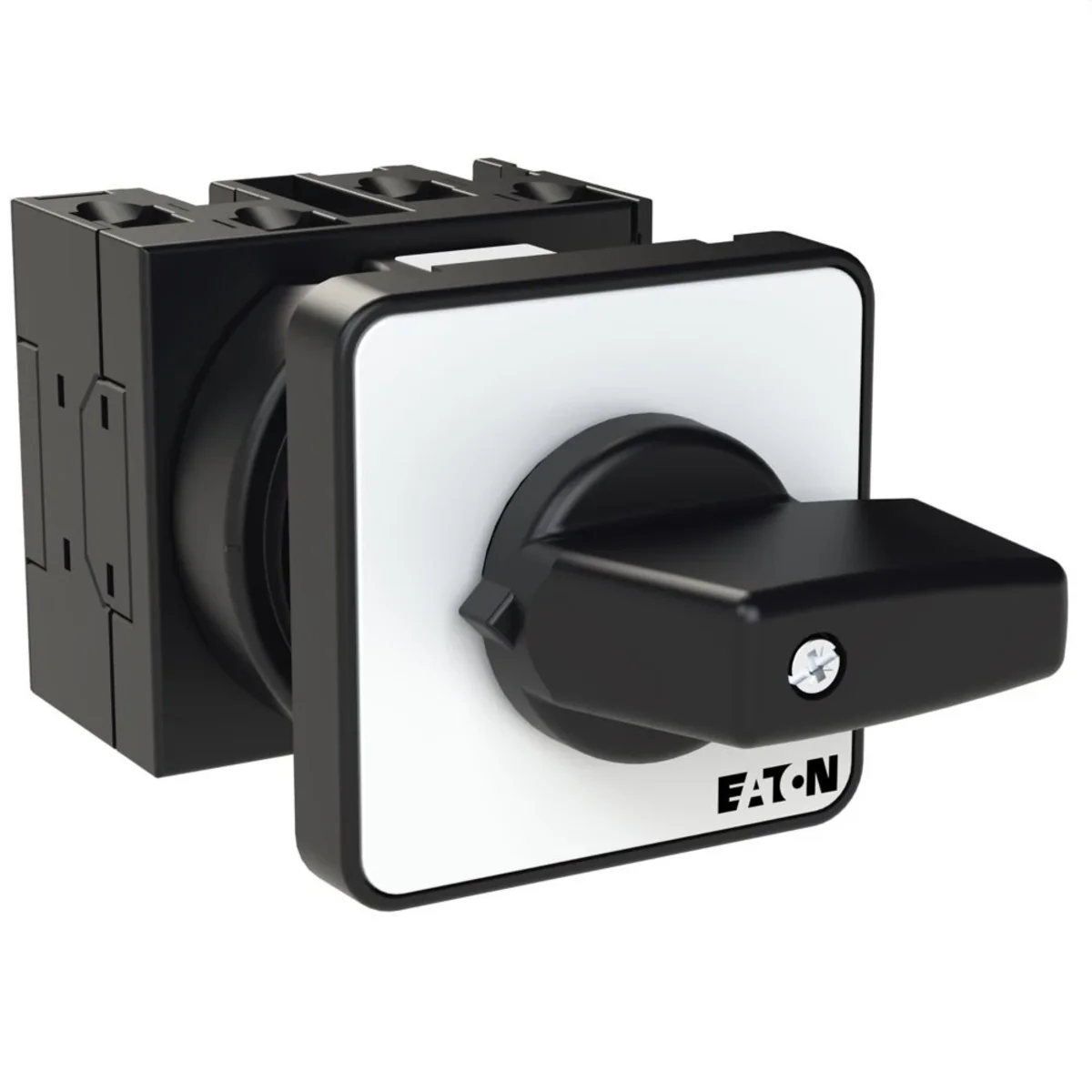

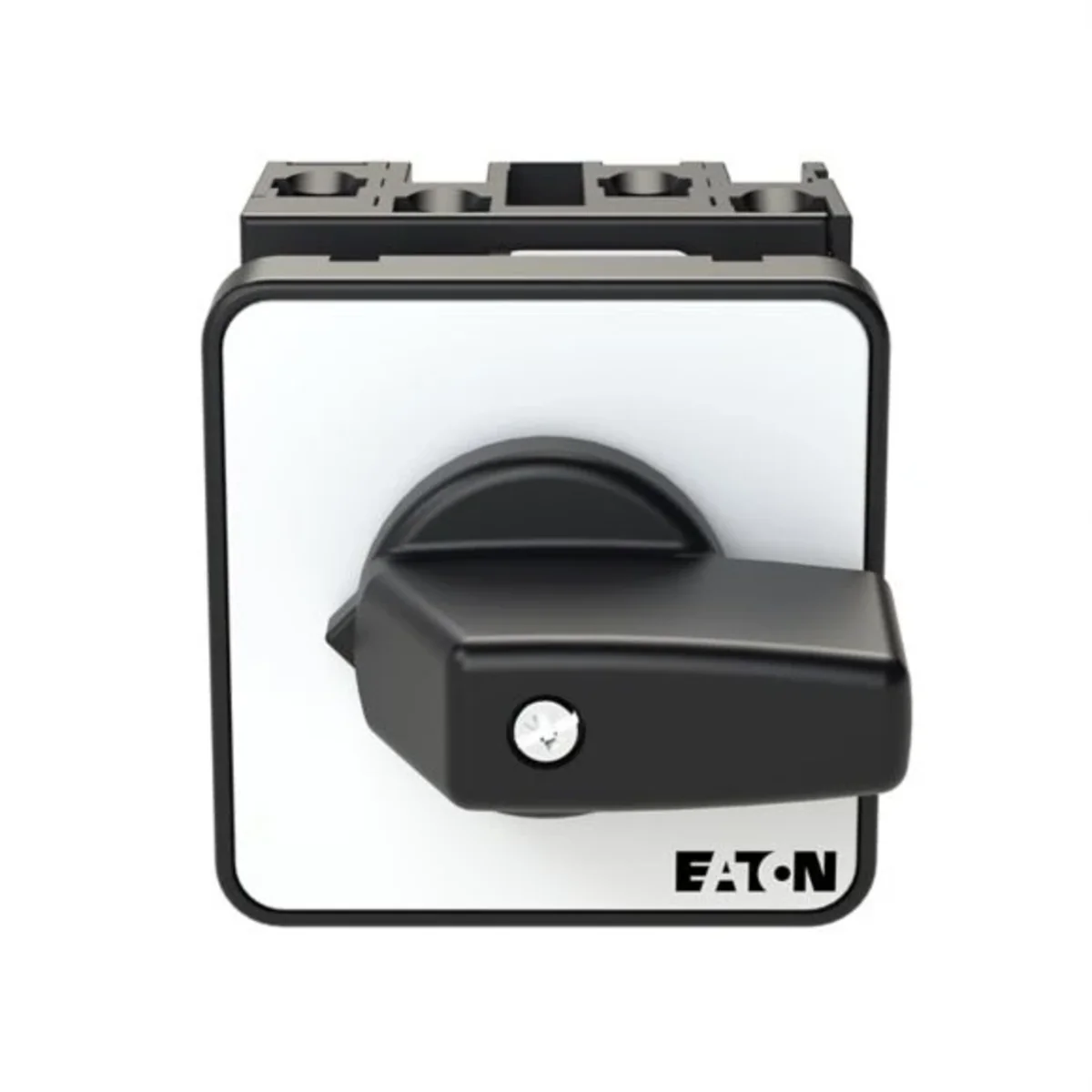

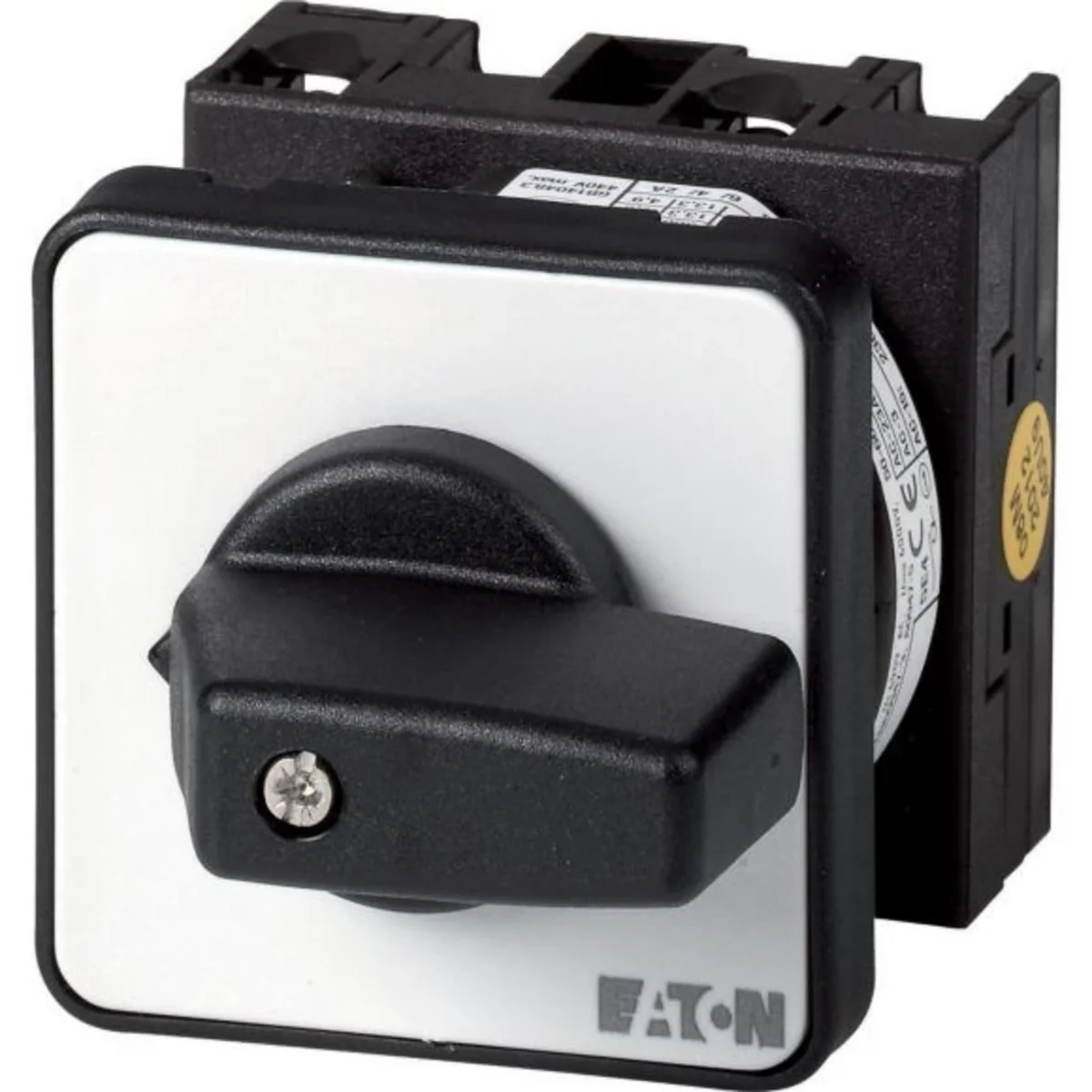

Cam switch, 20A, 6.5kW, T0-2-8900/E 207398
local index:
ALP001MOEL
Catalog No:
207398
EAN code:
4015082073985
Price:
31,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cam switch, 20A, 6.5kW, T0-2-8900/E. Cam switch In=20A P=6.5 kW
Technical data
-
Power [kW]6.5
-
Rated current [A]20
-
Main circuits3+N
Other technical data
-
Version as main switchNo
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu20 A
-
Rated permanent current at AC-21, 400 V20 A
-
Rated short-time withstand current lcw0.32 kA
-
Switching power at 400 V5.5 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementShort thumb-grip
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)12
-
Version as maintenance-/service switchNo
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-23, 400 V13.3 A
-
Rated operation power at AC-3, 400 V5.5 kW
-
Rated operation power at AC-23, 400 V5.5 kW
-
Conditioned rated short-circuit current Iq6 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationNo
-
Colour control elementBlack
-
InterlockableNo
-
Degree of protection (IP), front sideIP65
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,139 |
| Volume (m3) | 0,001 |
| Width (m) | 0,075 |
| Length (m) | 0,181 |
| Depth (m) | 0,065 |
