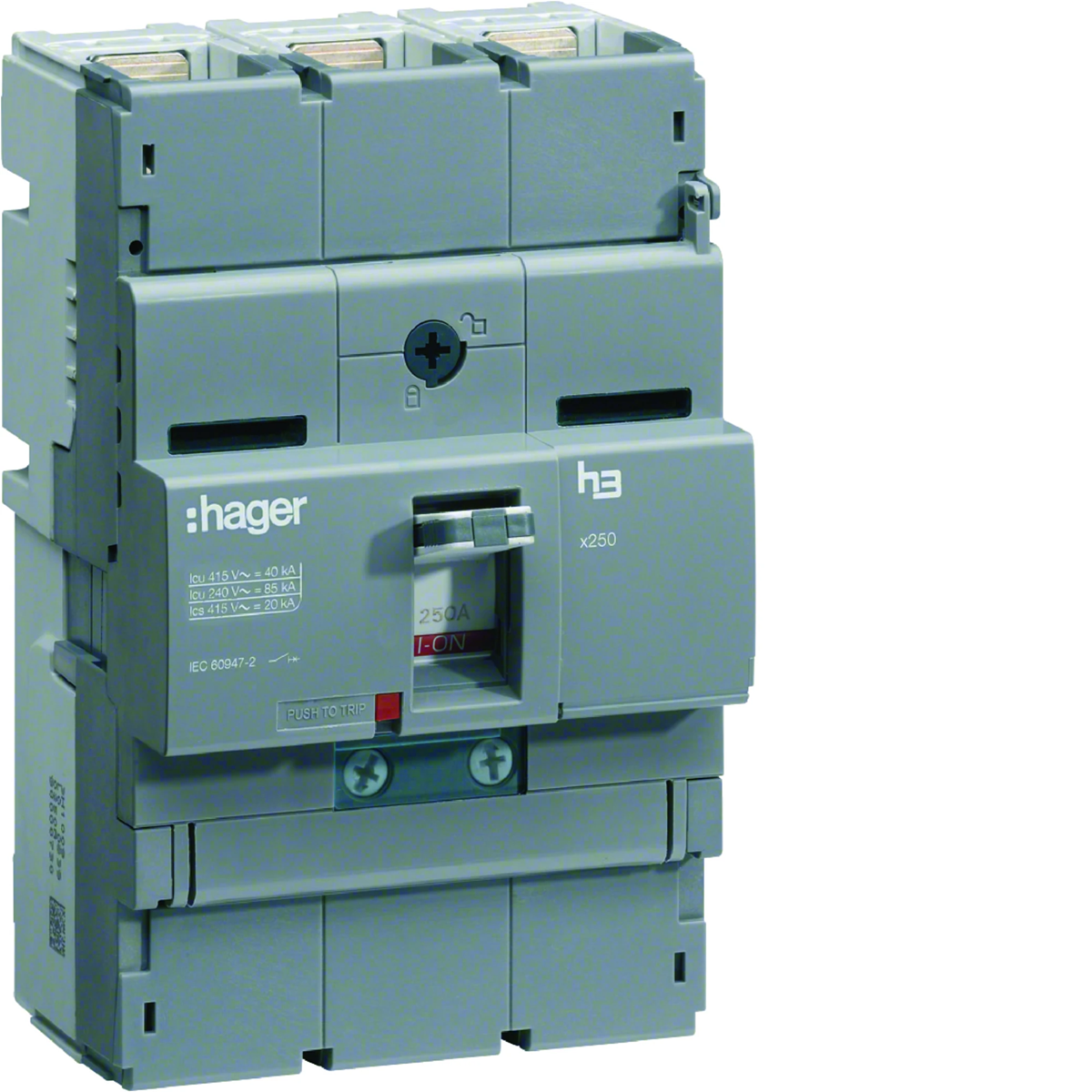

Power circuit breaker x250 3P 40kA 200A TM HNB200H

local index:
ALP010HAGE
Catalog No:
HNB200H
EAN code:
3250613347765
Manufacturer: HAGER
Characteristic: TM
Number of poles: 3
Surge voltage [kV]: 8000
Price:
607,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

Power circuit breakers equipped with thermal-magnetic trip units

Technical data

  • Characteristic
    TM
  • Surge voltage [kV]
    8000
  • Rated current [A]
    200
  • Power loss per pole [W]
    8
  • Mechanical durability (number of cycles)
    4000
  • Number of poles
    3
  • Rated insulation voltage [V]
    800
  • power loss [W]
    25
  • Electrical endurance (number of cycles)
    1000
  • PKWIU
    27.12.22.0

Other technical data

  • Rated permanent current Iu
    200 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    40 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    Yes
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes
  • Rated voltage
    220 ... 415 V
  • Overload release current setting
    125 ... 200 A
  • Adjustment range undelayed short-circuit release
    1200 ... 2600 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Number of poles
    3
  • Type of control element
    Toggle
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP40

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 1 pcs. 6 pcs. 144 pcs. 1 pcs. 6 pcs. 144 pcs.
Weight (kg) 1,300 7,810 187,630 1,300 7,810 187,630
Width (m) 0,110 0,320 0,800 0,110 0,320 0,800
Length (m) 0,110 0,210 1,010 0,110 0,210 1,010
Depth (m) 0,190 0,370 1,200 0,190 0,370 1,200
