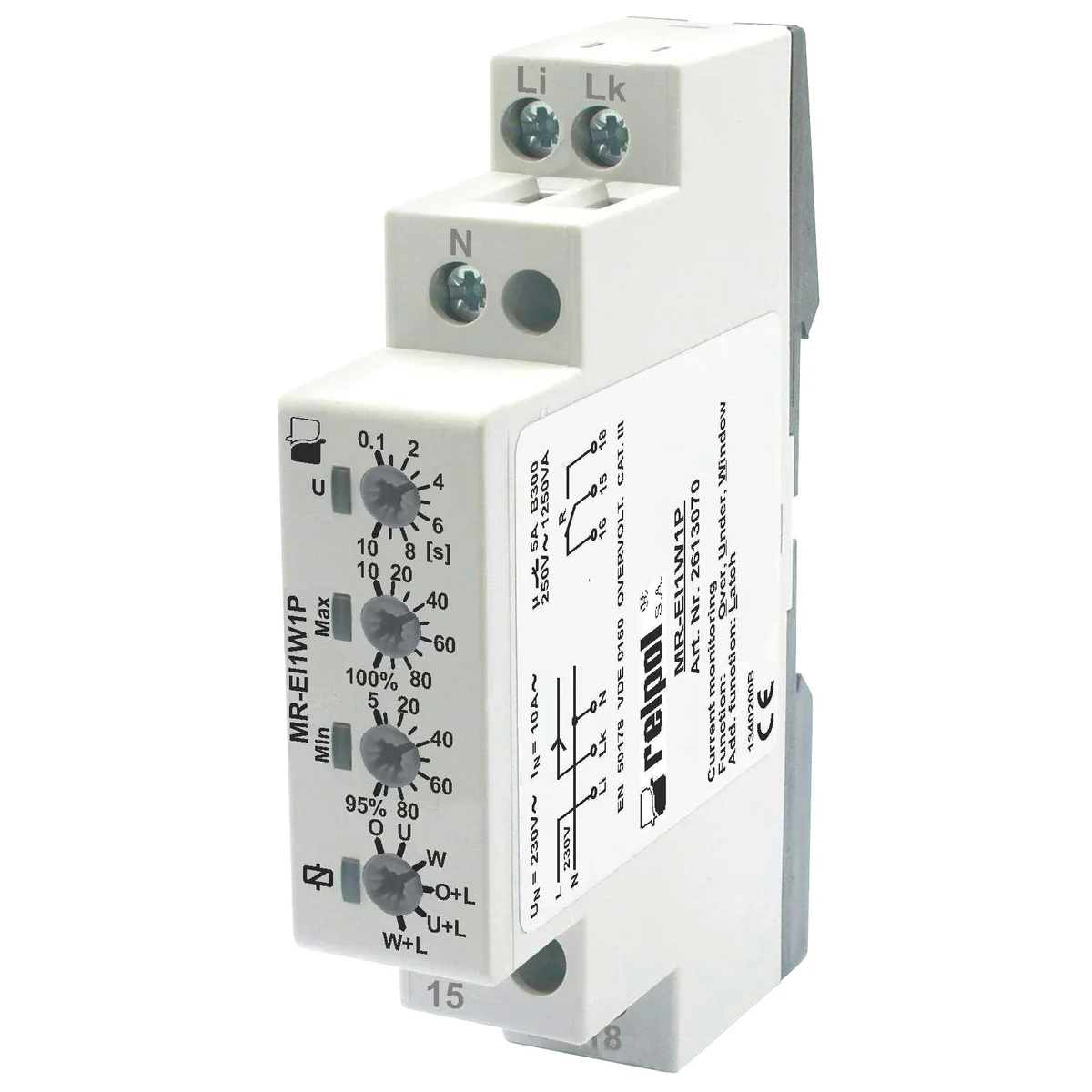

Monitoring relay, multifunctional: 1P - one changeover contact MR-EI1W1P 2613070

local index:
APL010RELP
Catalog No:
2613070
EAN code:
5900005014253
Manufacturer: RELPOL
Level of security: IP20
Price:
125,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Monitoring relay, multifunctional: 1P - one changeover contact. AC current supervision in one phase - 230 V AC. Current measurement range: 0.5...10 A AC. Supervision of the minimum value, maximum value and supervision in the "window" function (adjustable values). Error memory function available. Input (supply) = measuring input voltage - Li-N terminals. Measuring input - terminals: Li-Lk. Output: 1P contact - terminals: 15-16-18; AC1 - 5A / 250V. Dimensions: 87 x 17.5 x 65mm. Mounting on a 35 mm rail. Housing - installation module. IP 20.

Technical data

  • Level of security
    IP20
