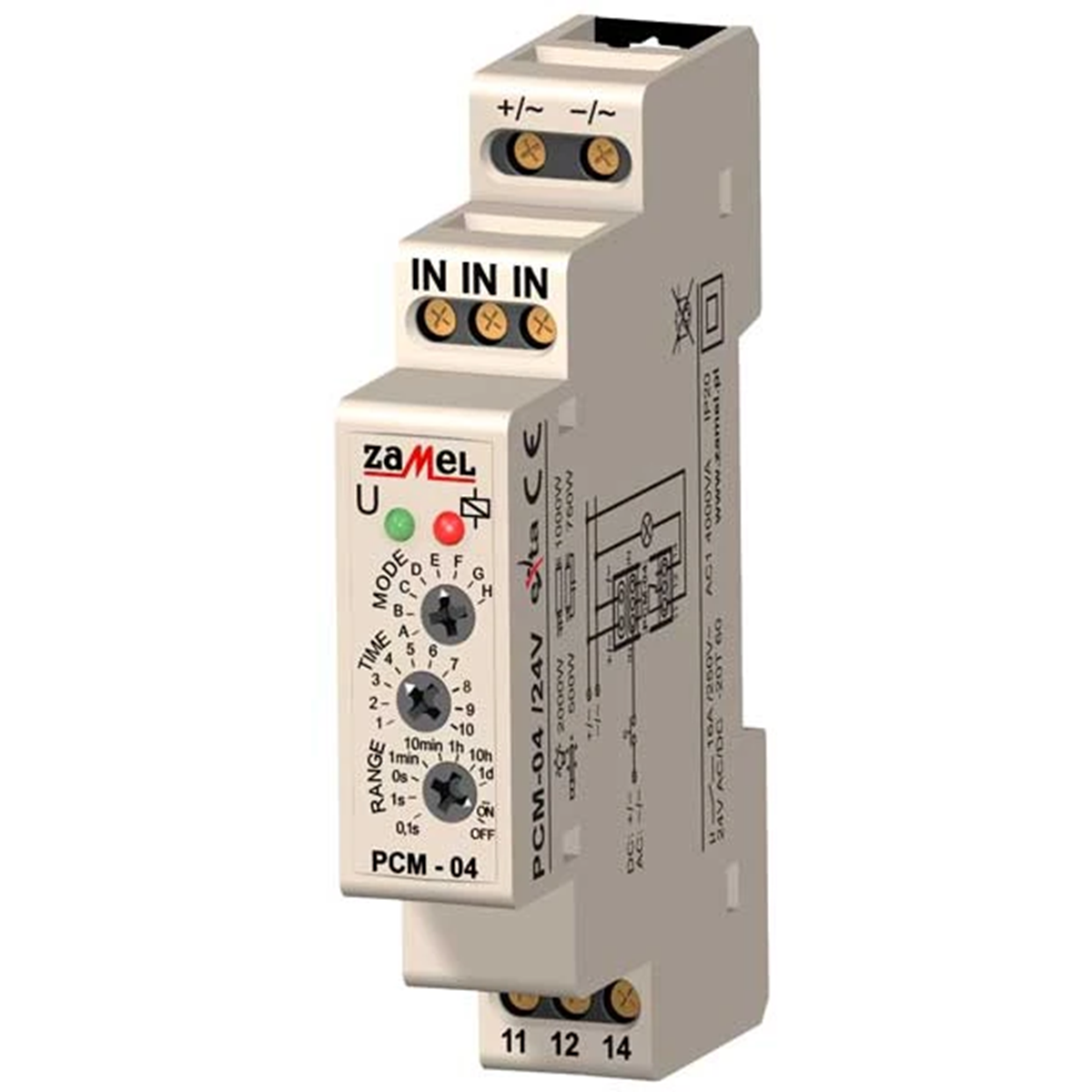

Time relay 24V AC/DC TYPE: PCM-04/24V EXT10000082

local index:
APL008ZAME
Catalog No:
EXT10000082
EAN code:
5903669006268
Manufacturer: ZAMEL
Length [mm]: 66
Maximum relay power [VA]: 4000
Installation: On the TH-35 rail
Price:
34,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The PCM-04/24V multifunctional time relay is used to implement time functions in automation and control systems. It has 10 independent operating modes triggered by the supply voltage or an external trigger impulse (coming from the L or N line). It is characterized by a very wide range of time settings and permanent on and off functions. It is possible to change the mode without waiting for the current cycle to end.

Technical data

  • Length [mm]
    66
  • Installation
    On the TH-35 rail
  • Relay current [A]
    16
  • Width [mm]
    17.5
  • Height [mm]
    90
  • Maximum relay power [VA]
    4000
  • Rated voltage [V]
    24
  • Family
    EXTA
  • Type
    Relays
  • PKWIU
    27.12.40.0
