Interface Relay 24V DC 2P AgNi 8A / 250V AC 864833

local index:
APE359RELP
Catalog No:
864833
EAN code:
5900005272264
Manufacturer: RELPOL
Depth [mm]: 75.8
Color: Gray
Installation: On the TH-35 rail
Price:
13,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

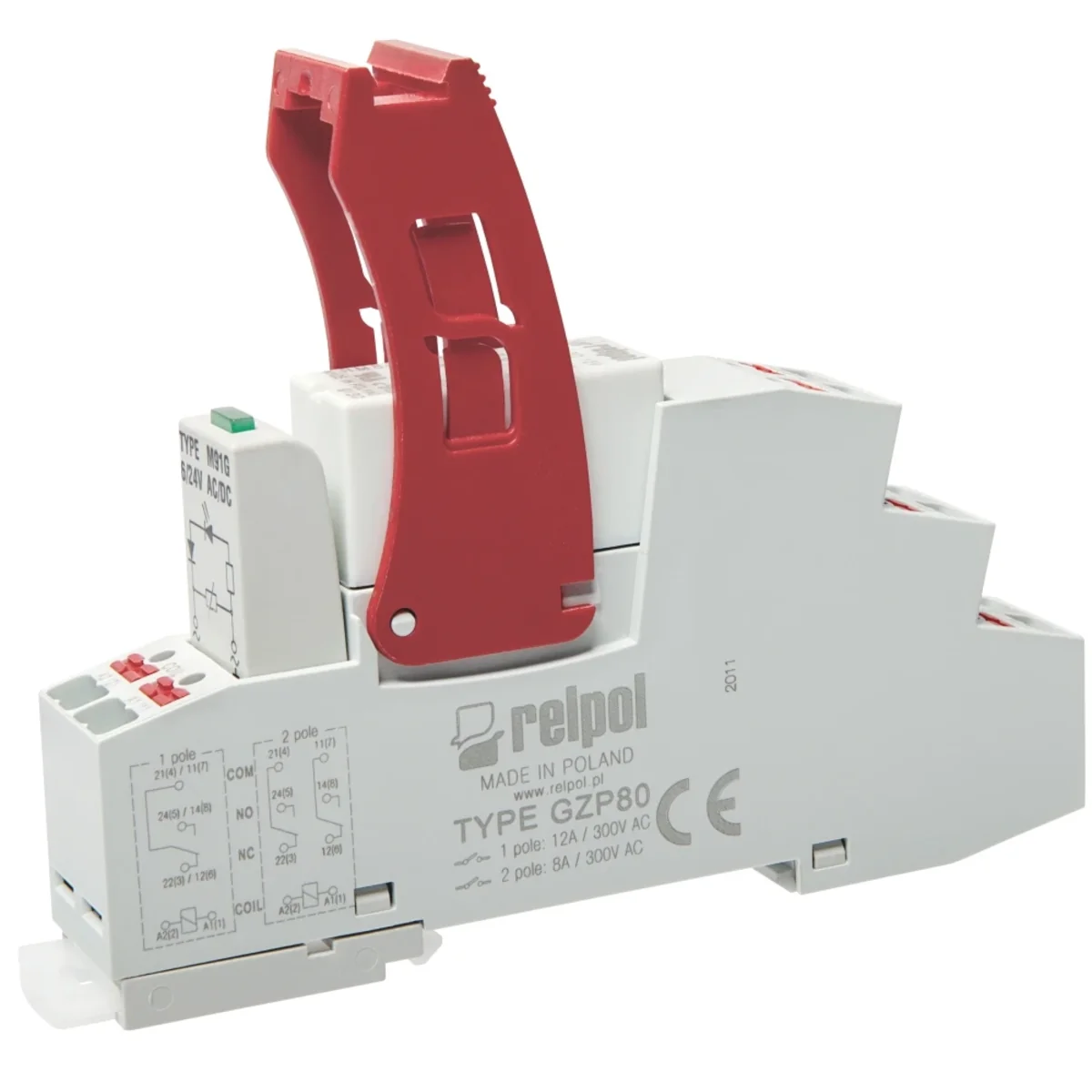

PUSH-IN interface relay: 2P - two changeover contacts, supply voltage Un - 24V DC, contact material AgNi.

  • AC1 - 8A / 250V AC; DC1 - 8A / 24V DC.
  • Dimensions: 97 x 15.9 x 75.8mm.
  • Mounting on a 35 mm rail or on a mounting plate with one M3 screw.
  • Adjusted to work with ZGZP comb connectors.
  • The set includes: GZP80 push-in socket, RM84 relay in a standard white housing, GZP80-0400 ejection clamp and M41G surge protection module (LED green + damping diode D, polarity N: +A1/-A2)

Technical data

  • Depth [mm]
    75.8
  • Installation
    On the TH-35 rail
  • Height [mm]
    97
  • Color
    Gray
  • Width [mm]
    15.9
  • Terminal type
    Spring clamps
