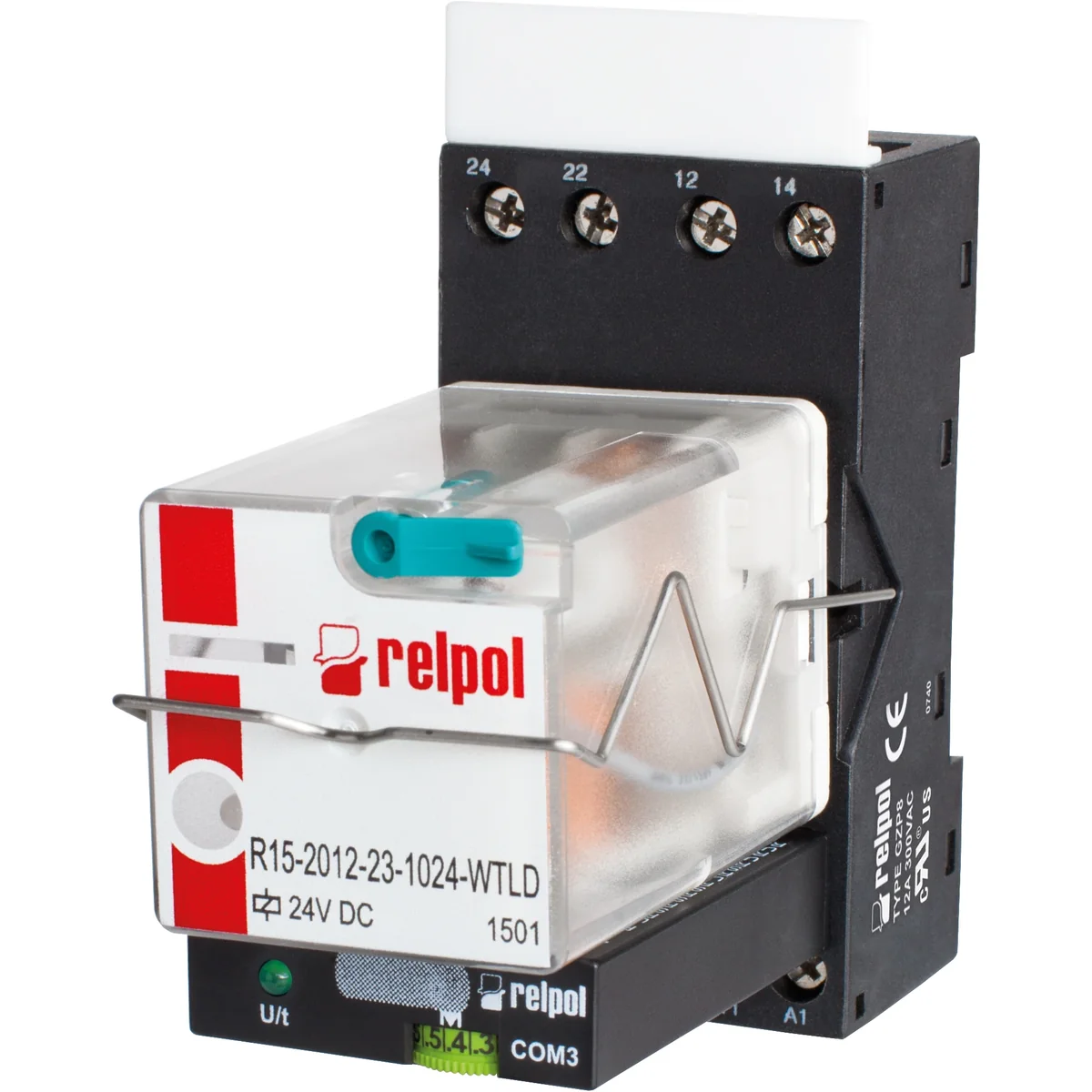

Industrial, multifunctional time relay: 3P - three changeover contacts PIR153-110DC-00T 855606

local index:
APE046RELP
Catalog No:
855606
EAN code:
5900005165054
Manufacturer: RELPOL
Level of security: IP20
Price:
87,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Industrial, multifunctional time relay: 3P - three changeover contacts. Functions: E, E(S), Wu, Wu(S), Bi, Bi(S), Bp, Bp(S), R, Ws, Wa, Es. Input - terminals: (+)A1 - (-)A2; external control contact S - terminals: (+)A1 - B1, supply voltage Un - 110 V DC. Output: 3P contacts - terminals: 11-12-14, 21-22-24, 31-32-34; AC1 - 10A / 250V, DC1 - 10A / 24V. Dimensions: 75 x 38 x 83.1 mm. Mounting on a 35 mm rail or on a mounting plate with two M3 screws. IP 20.

Technical data

  • Level of security
    IP20

Other technical data

  • Type of electric connection
    Screw connection
  • Function delay on de-energization
    Yes
  • Function floating contact on de-energization
    Yes
  • Function pulse shaping
    No
  • Function flashing, starting with pulse, fixed time
    Yes
  • Clock function, starting with pulse, variable
    No
  • Remote operation possible
    No
  • Pluggable on auxiliary contact block
    No
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Number of outputs, delayed, change-over contact
    3
  • With semiconductor output
    No
  • Height
    85.4 mm
  • Function delay-on energization
    Yes
  • Function floating contact on energization
    Yes
  • Function star-delta
    No
  • Function flashing, starting with pause, fixed time
    Yes
  • Clock function, starting with pause, variable
    No
  • Z gniazdem wtykowym
    Yes
  • Suitable as remote control
    No
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    110 ... 110 V
  • Time range
    0 ... 0 s
  • Outputs, reversible delayed/undelayed
    No
  • Width
    38.2 mm
  • Depth
    73 mm
