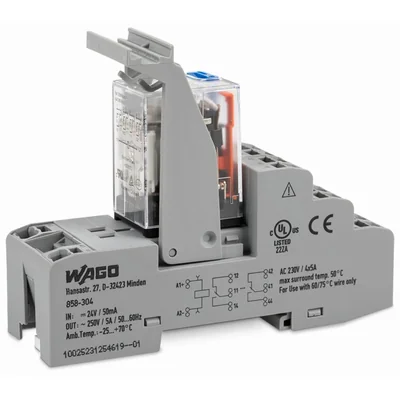

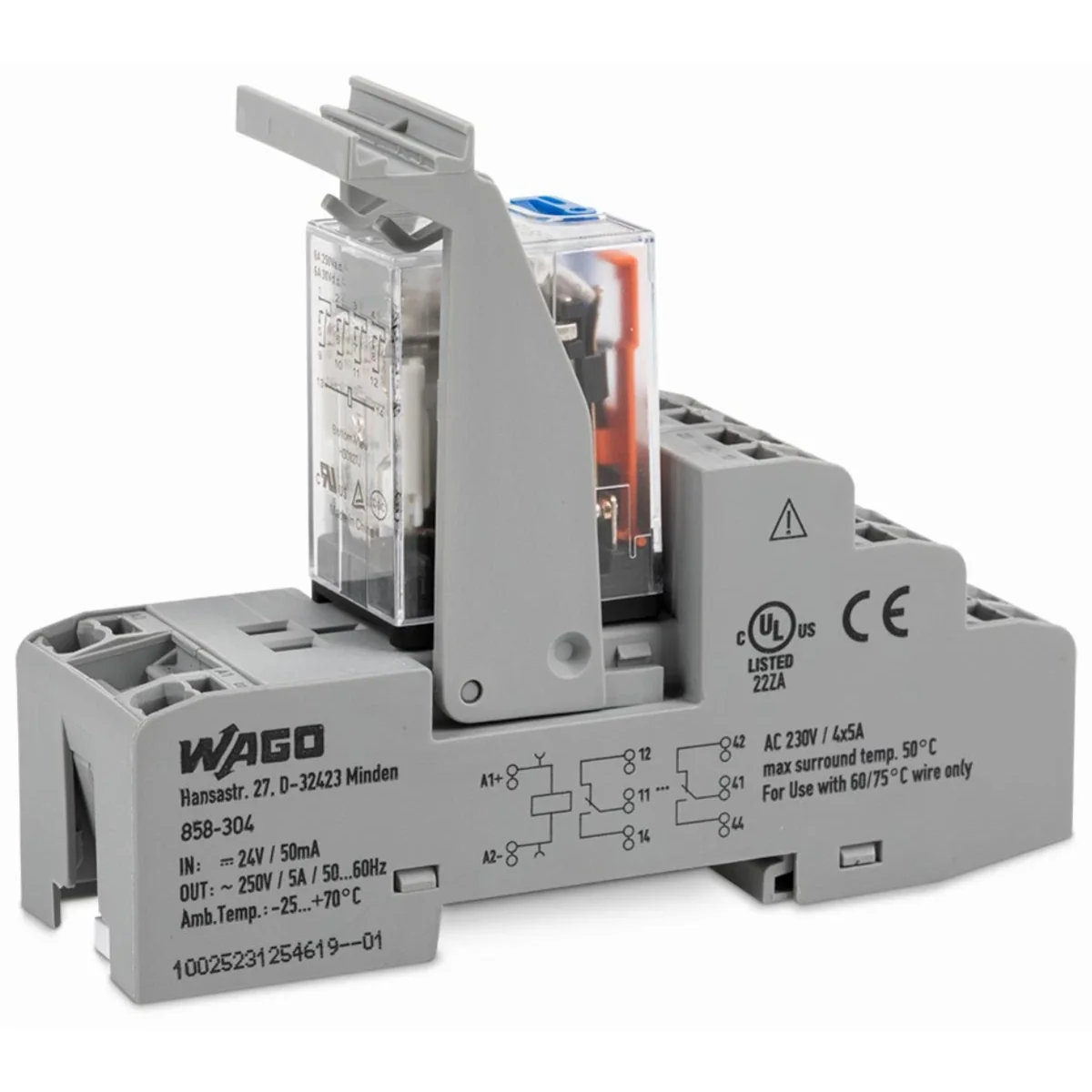

Industrial relay 24V DC 4p on a base 858-304

local index:
APE010WAGO
Catalog No:
858-304
EAN code:
4055143567770
Manufacturer: WAGO ELWAG
Contact oscillation time [ms]: 4
Contact dropout time [ms]: 25
Maximum switching power (at resistive load): 1250VA AC / 150VA DC
Price:
72,04 €
gross / pkg.
(including VAT 23%)
14,41 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Industrial relay 24V DC 4p on a base

Technical data

  • Contact oscillation time [ms]
    4
  • Maximum switching power (at resistive load)
    1250VA AC / 150VA DC
  • Maximum switching voltage [V]
    250
  • Minimum switching power
    12V/100mA
  • Operating power[mW]
    0.9W
  • Surge voltage [kV]
    2.5
  • Rated voltage EN [V]
    250
  • Gauge [AWG]
    22
  • Degree of contamination
    2
  • Wire connection technique
    CAGE CLAMP®S
  • Electrical endurance (number of cycles)
    1 x 105 switching cycles
  • Input voltage range [V]
    UN -20% ... +10%
  • Tripping time [ms]
    25
  • Contact dropout time [ms]
    25
  • Maximum load current [A]
    5A
  • Maximum inrush current (resistive load) at 10% cycle
    15A/4s
  • Power [W]
    0.9
  • Engine power [kW]
    0.12
  • Input voltage [V]
    24V DC
  • Input rated current [mA]
    36.9mA
  • Series
    858
  • Pieces in the package
    5
  • Mechanical / electrical durability
    20 x 106 switching cycles
  • Dielectric strength contact-coil (AC, 1 min) [kVrm]
    1
  • Conformity mark
    CE

Other technical data

  • Type of electric connection
    Spring clamp connection
  • Nominal current
    5 A
  • Voltage type for actuating
    DC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • With forced-guided contacts
    No
  • Complete with socket
    Yes
  • Degree of protection (IP)
    IP20
  • Height
    73 mm
  • With detachable clamps
    No
  • Rated control supply voltage DC
    24 ... 24 V
  • Drive, polarization
    Polarized
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    4
  • Type of switch contact
    Single contact
  • With LED indication
    Yes
  • Width
    31 mm
  • Depth
    97 mm

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 0,568
Volume (m3) 0,002
Width (m) 0,105
Length (m) 0,170
Depth (m) 0,095
