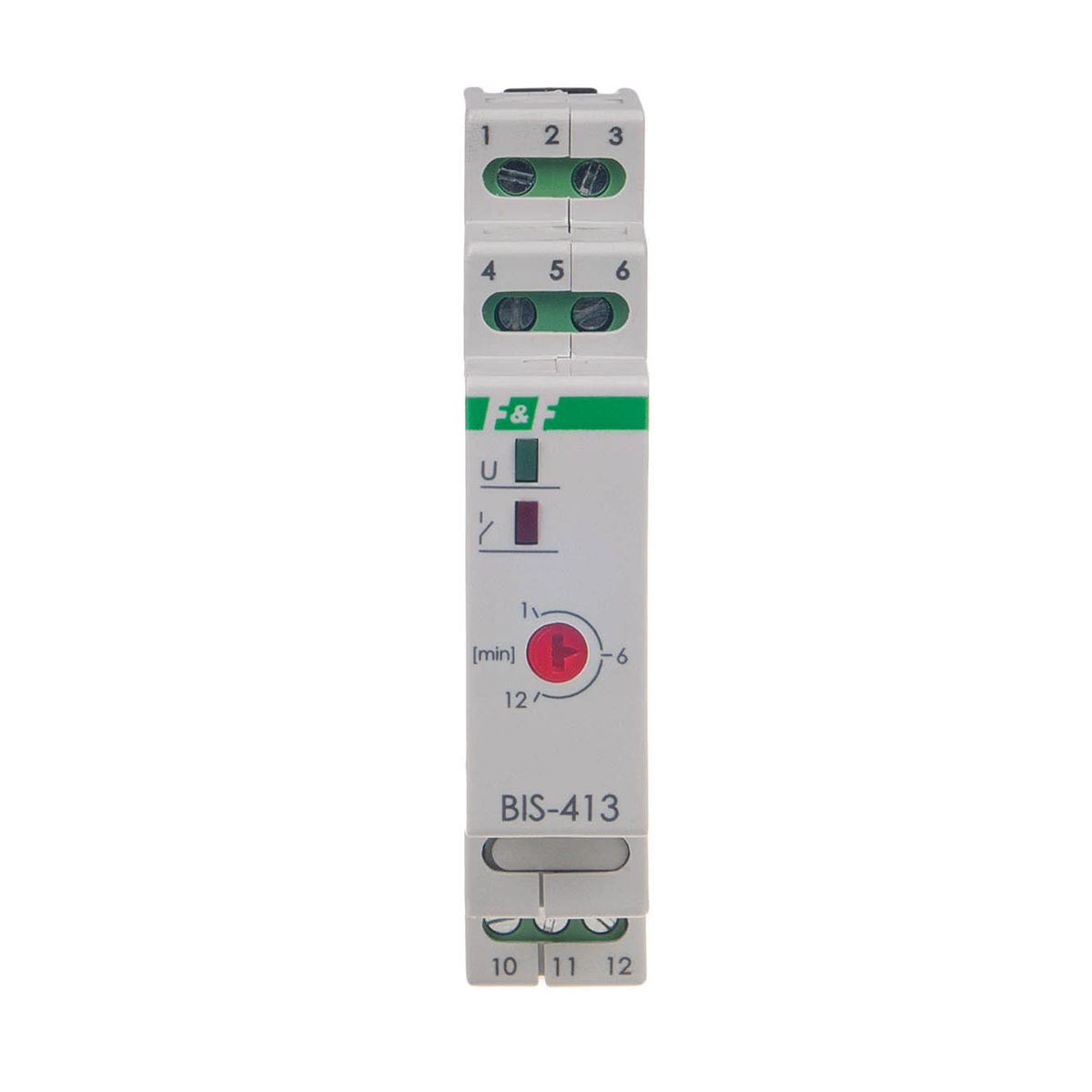

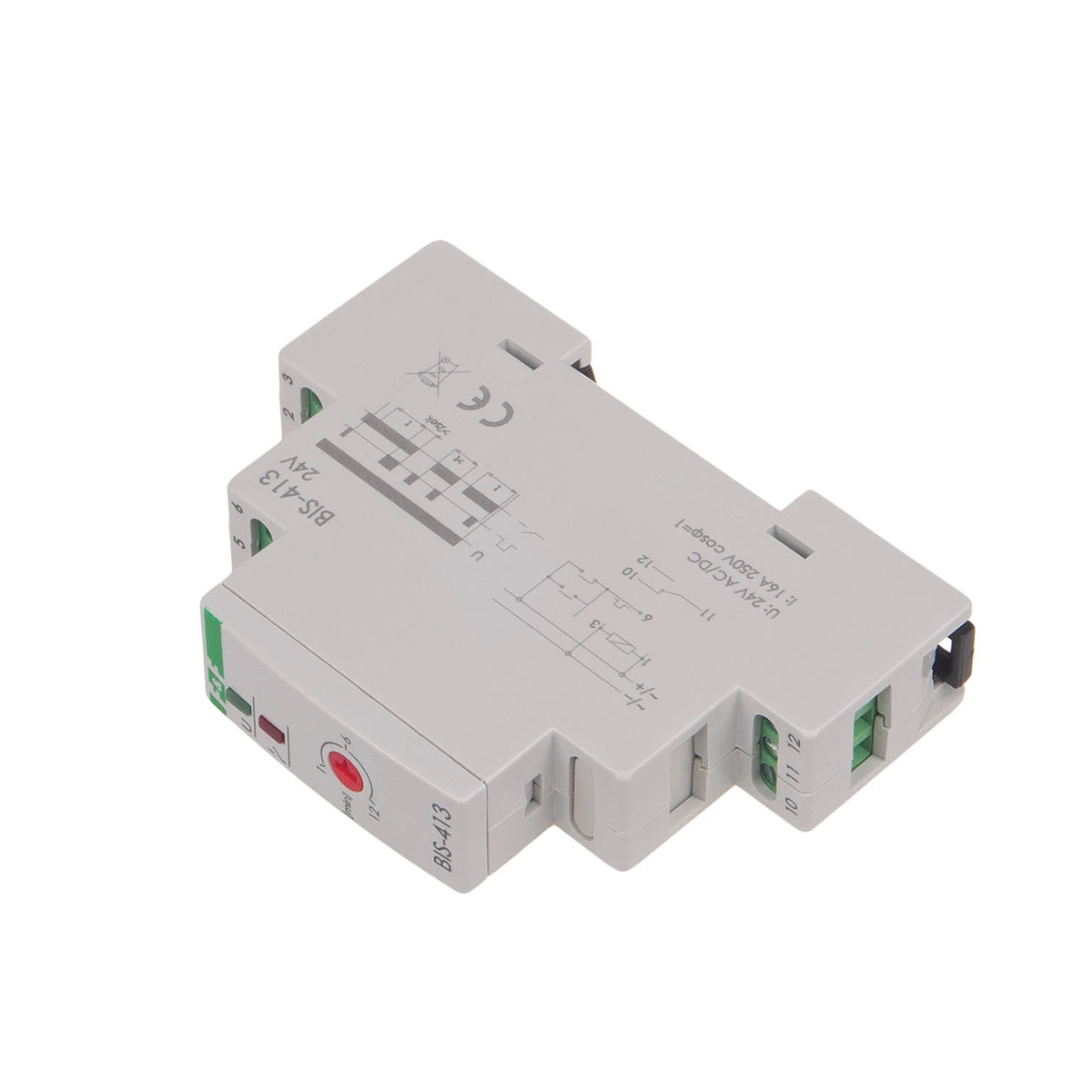

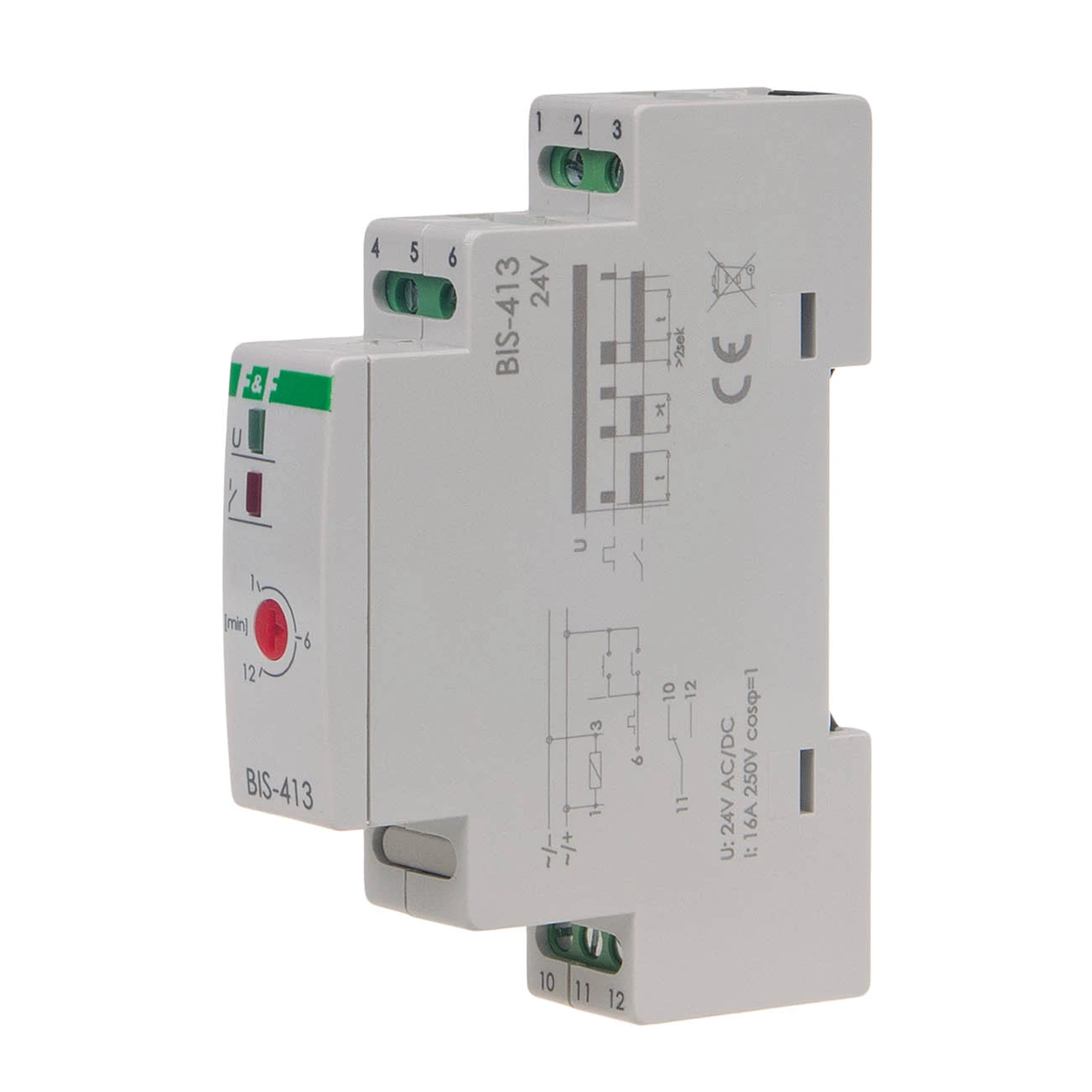

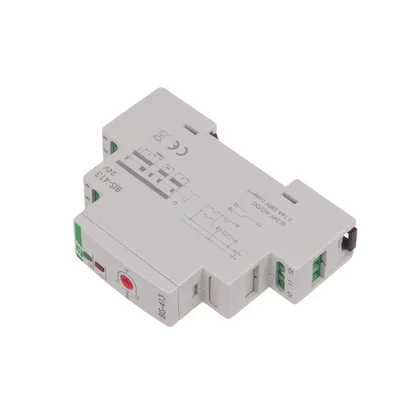

Bistable relay BIS-413 24V BIS-413-24V

local index:
APE028FIFQ
Catalog No:
BIS-413-24V
EAN code:
5908312594093
Manufacturer: F&F
Number of contacts: 0NO 0NC
Power [W]: 0.8
Installation: On the TH-35 rail
Price:
26,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Intended use:
The electronic bistable impulse relay BIS-413 is a device that allows switching on/off lighting or other devices for a given period of time or permanently. The operation of the device is controlled by one or more momentary (bell) switches connected in parallel.
Operation:
The switching on of the relay's power supply is signaled by the lighting of the green LED. The red LED indicates the operating status of the device.


24V version:
The receiver is switched on after a current pulse caused by pressing any momentary (bell) button connected to the relay. The receiver will be switched off after the next pulse or automatically after the set switch-off time. Pressing the control button twice within 1 second will cause the lighting to be switched on permanently, until the next impulse is given, which will turn off the relay.  BIS-413 230V can work with illuminated switches. BIS-413 24V cannot work with illuminated switches.

Technical data

  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • Control pulse current [mA]
    <1
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    1 module (18mm)
  • Power supply BIS-413 [V]
    24
  • Package width [mm]
    20
  • PKWIU
    27.12.23.0
  • Power [W]
    0.8
  • Activation delay [s]
    0.1-0.2
  • load current [A]
    <16
  • Contact activation signaling
    red LED
  • Working temperature [°C]
    -25-50
  • Power [V]
    24
  • Package height [mm]
    150
  • Package weight [kg]
    0.1

Other technical data

  • Function
    Electronic switch
  • Control voltage 1
    24 ... 24 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Supply voltage
    24 ... 25 V
  • Max. load fluorescent lamp
    300 VA
  • Max. load fluorescent lamp (parallel compensated)
    200 VA
  • Mounting method
    DIN rail
  • Type of control voltage 1
    AC
  • Rated switch current
    0.005 A
  • Max. incandescent lamp load
    600 W
  • Max. load fluorescent lamp (Duo circuit)
    300 VA
  • Suitable for manual operation
    no

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,066
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
