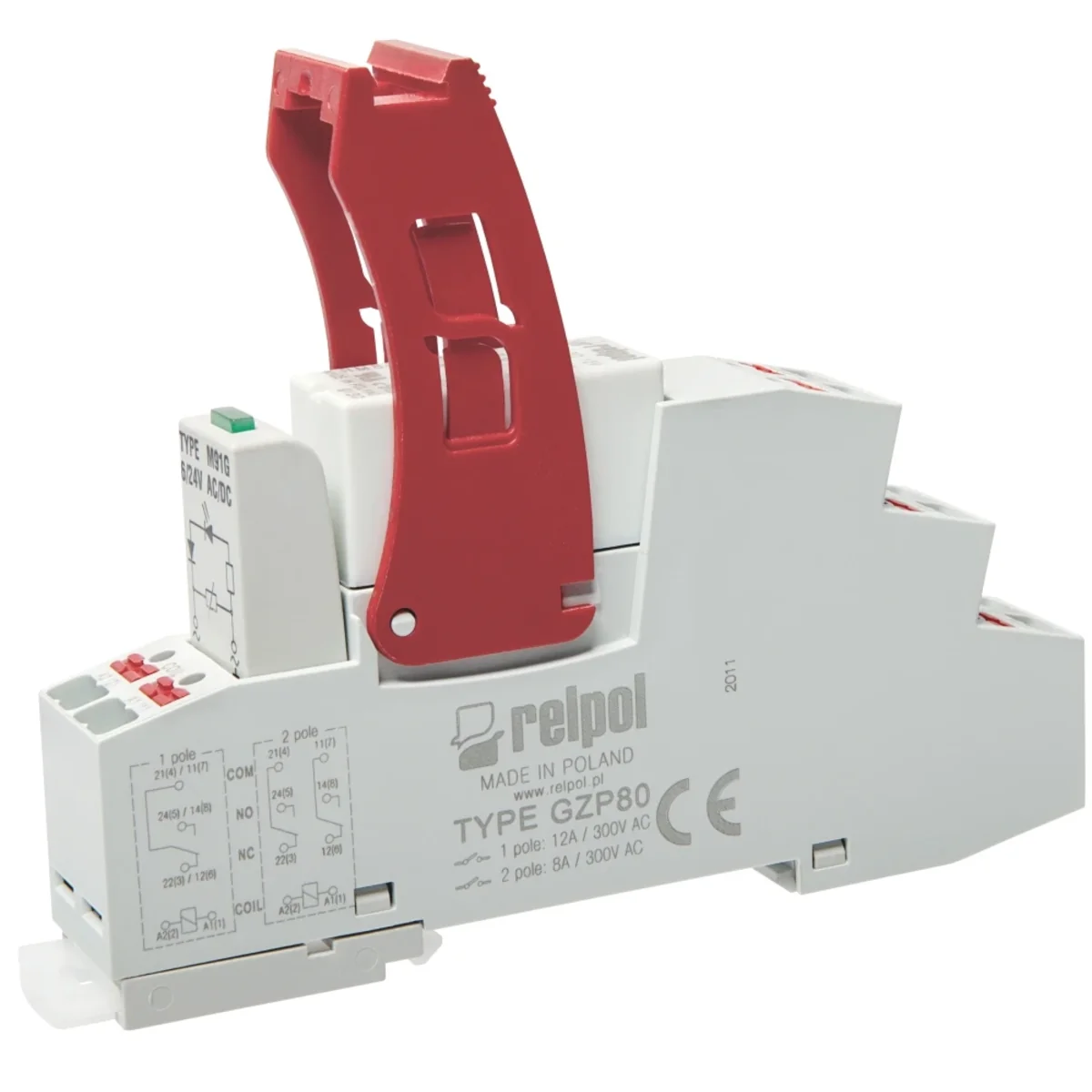

Interface Relay 24V AC 2P AgNi 8A / 250V AC 864834

PUSH-IN interface relay: 2P - two changeover contacts, supply voltage Un - 24V AC, contact material AgNi.

• AC1 - 8A / 250V AC; DC1 - 8A / 24VDC.
• Dimensions: 97 x 15.9 x 75.8mm.
• Mounting on a 35 mm rail or on a mounting plate with one M3 screw.
• Adjusted to work with comb connectors type ZGZP.
• The set includes: GZP80 push-in socket, RM84 relay in a standard white housing, GZP80-0400 discharge clamp and M91G surge protection module (green LED + varistor)
