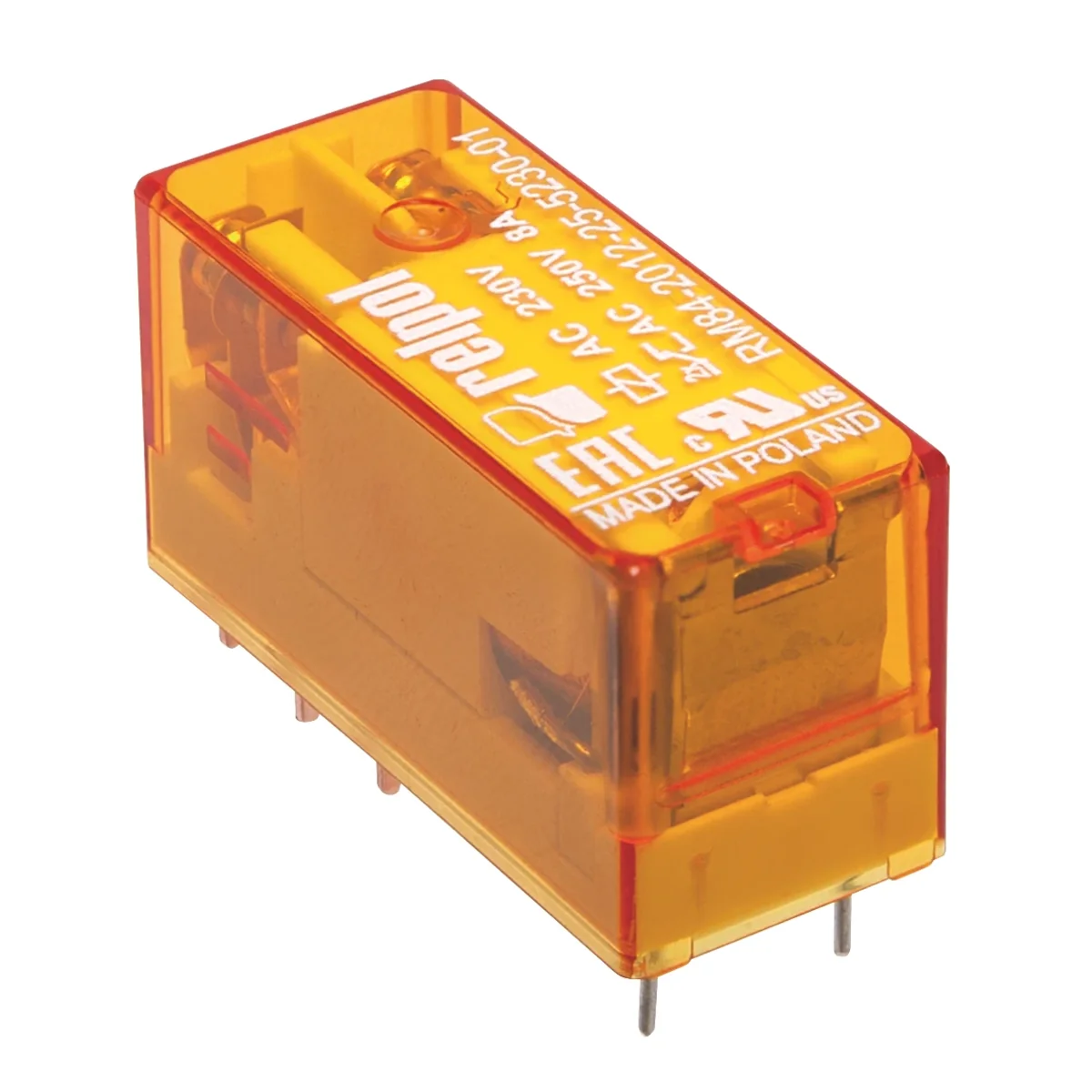

Electromagnetic relay RM84-2012-25-5230-01 miniature in a transparent housing for printed circuit and plug-in socket 859519

Electromagnetic relay, miniature in a transparent housing, for printed circuit board and plug socket. 5mm pitch. Height 15.7mm. Output: 2P - two changeover contacts - terminals: 11(7)-12(6)-14(8); 21(4)-22(3)-24(5); AC1 - 8A / 250V; DC1 - 8 A / 24 V. Input / coil - terminals: A1(1) - A2(2), supply voltage Un - 230 V AC. Dimensions: 29 x 12.7 x 15.7mm. Contact material: AgNi. IP 40. Socket mounting options: EC50, GD50, PW80 - for printing; GZP80 (push-in), GZT80, GZM80, GZS80, GZF80 - mounting on a 35 mm rail or screwed to the panel with one M3 screw
