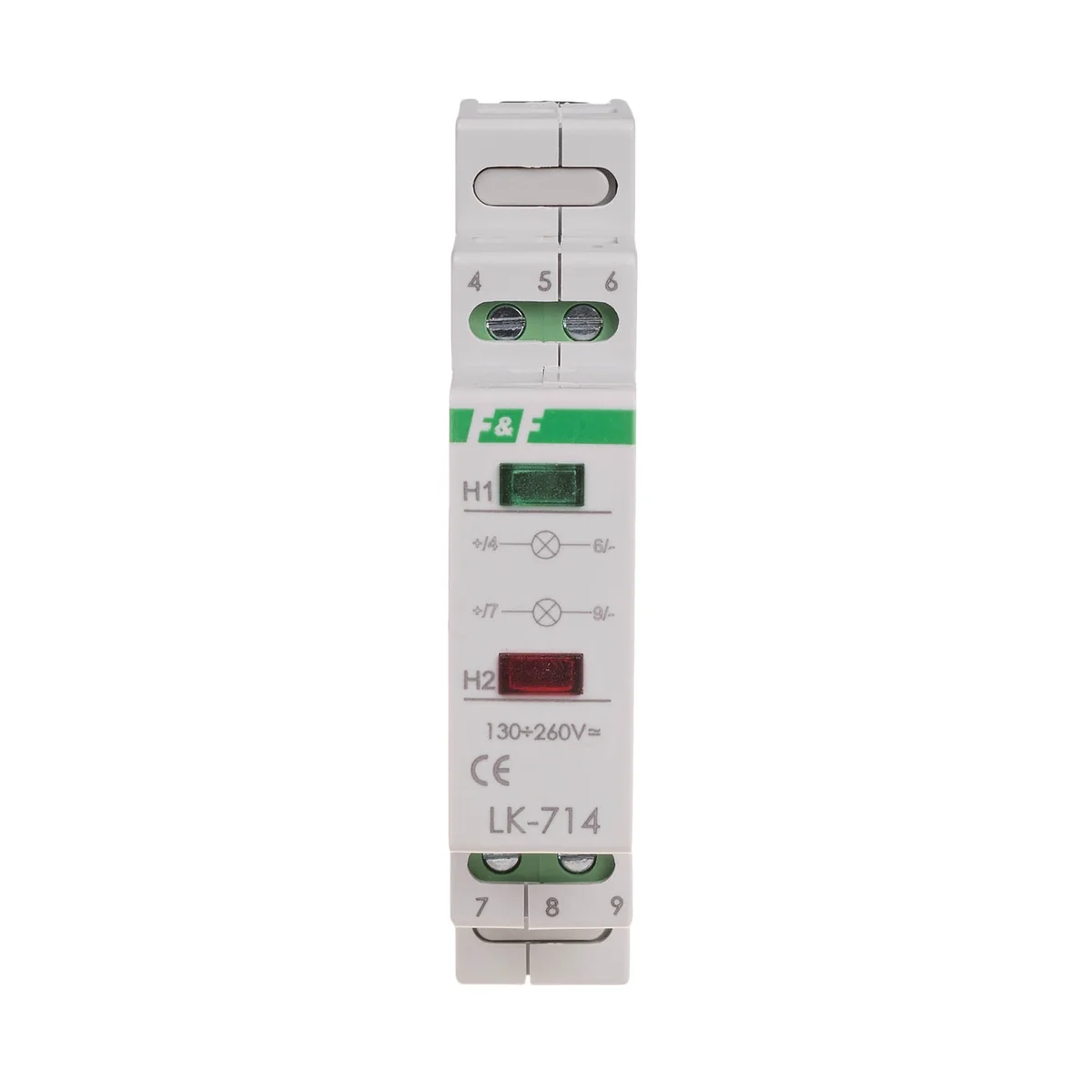

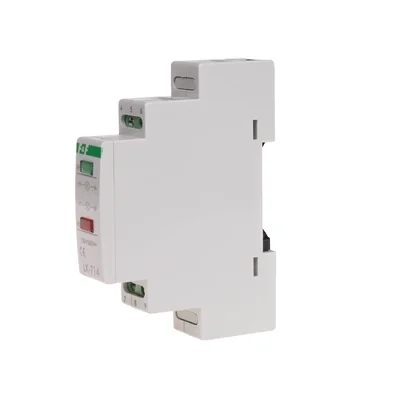

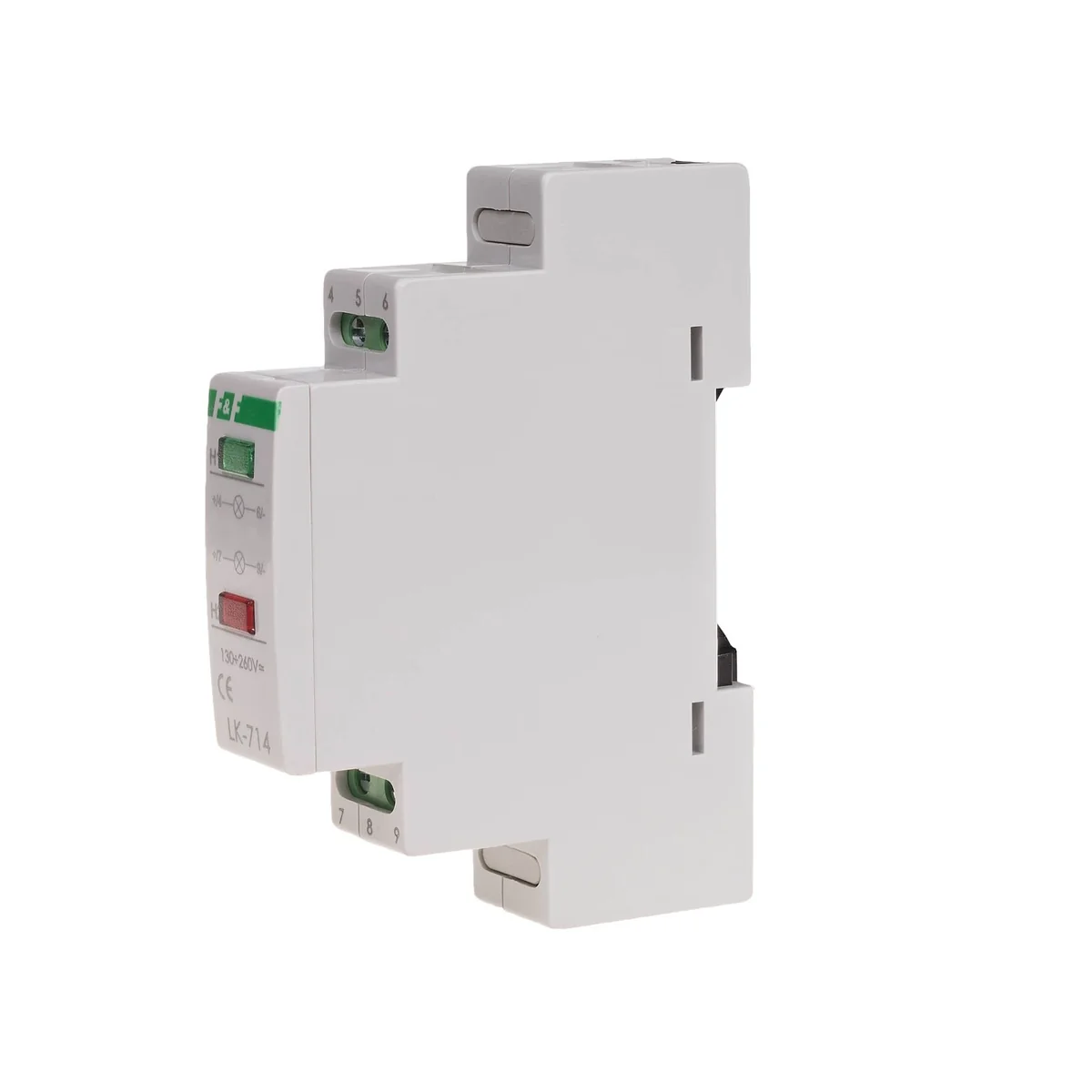

Power indicator lamp - dustan LK-714 130-260V LK-714

local index:
API035FIFQ
Catalog No:
LK-714
EAN code:
5908312592273
Manufacturer: F&F
Power [W]: 1.1
Installation: On the TH-35 rail
Rated voltage [V]: 230
Price:
11,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The LK-714 signaling lamp is used for optical signaling of states of specified circuits or receivers, e.g. closed - open; operation - break, etc. The state of the controlled circuit or receiver is signaled by the lighting of the appropriate LED connected in parallel to this circuit or receiver.

Technical data

  • Power [W]
    1.1
  • Rated voltage [V]
    230
  • Status signalling
    1×LED
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • PKWIU
    27.40.24.0
  • Installation
    On the TH-35 rail
  • connection
    Screw 2.5mm
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.1

Other technical data

  • Colour calotte
    Green
  • Lamp socket
    Other
  • Rated voltage
    10 V
  • Built-in depth
    65 mm
  • Lamp type
    LED
  • Max. lamp power
    0.8 W
  • Voltage type
    AC/DC
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,043
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
