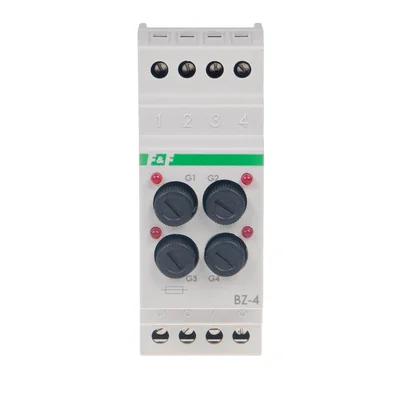

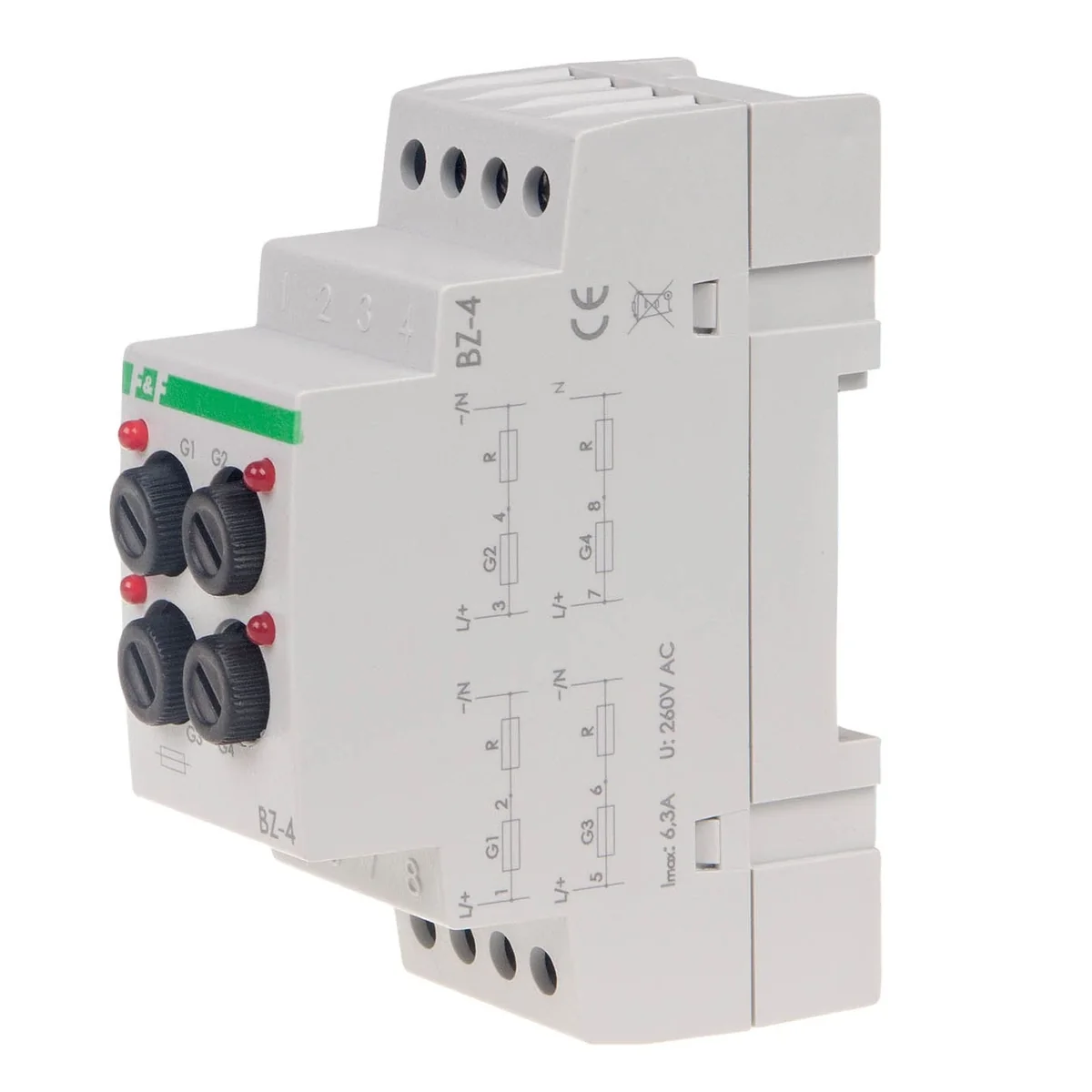

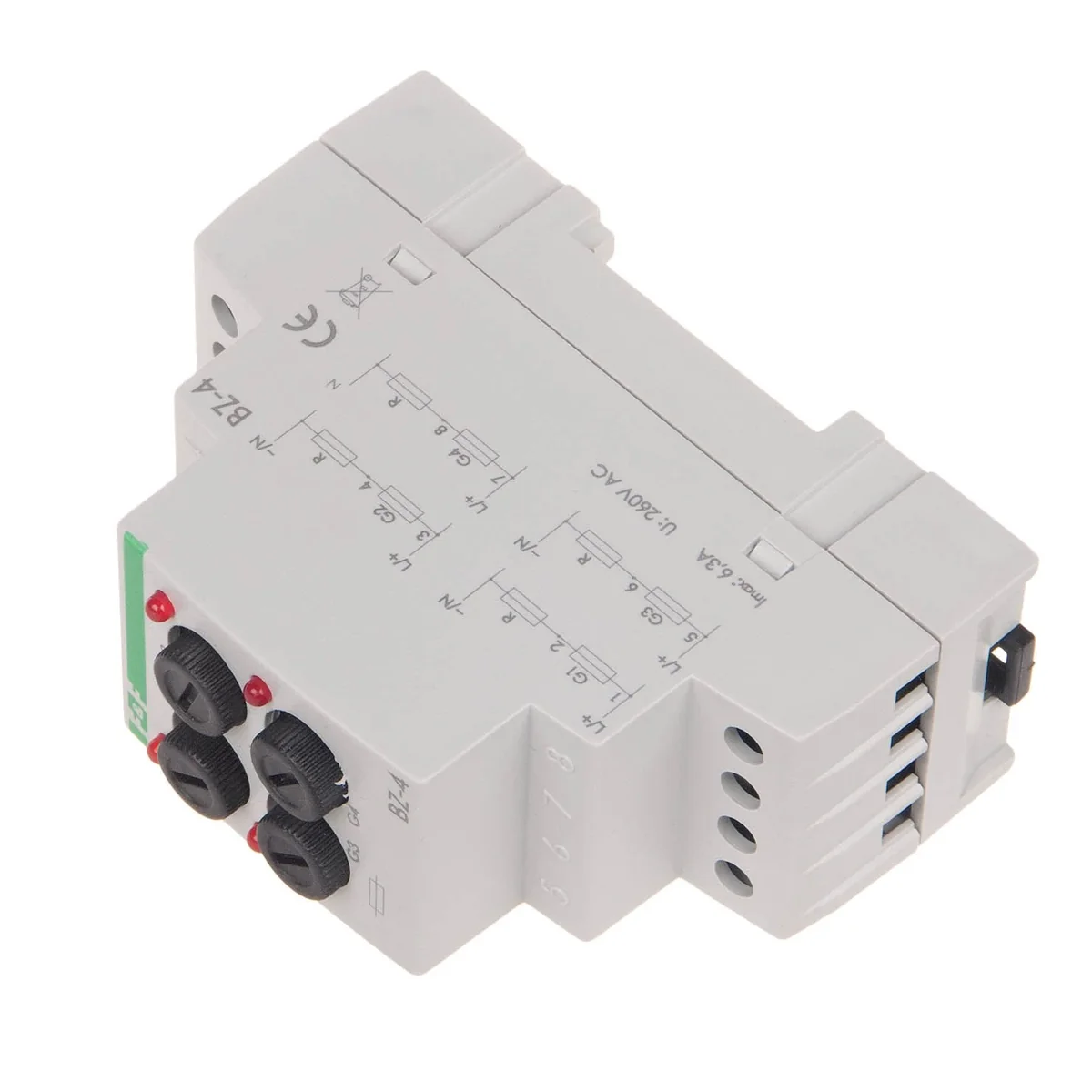

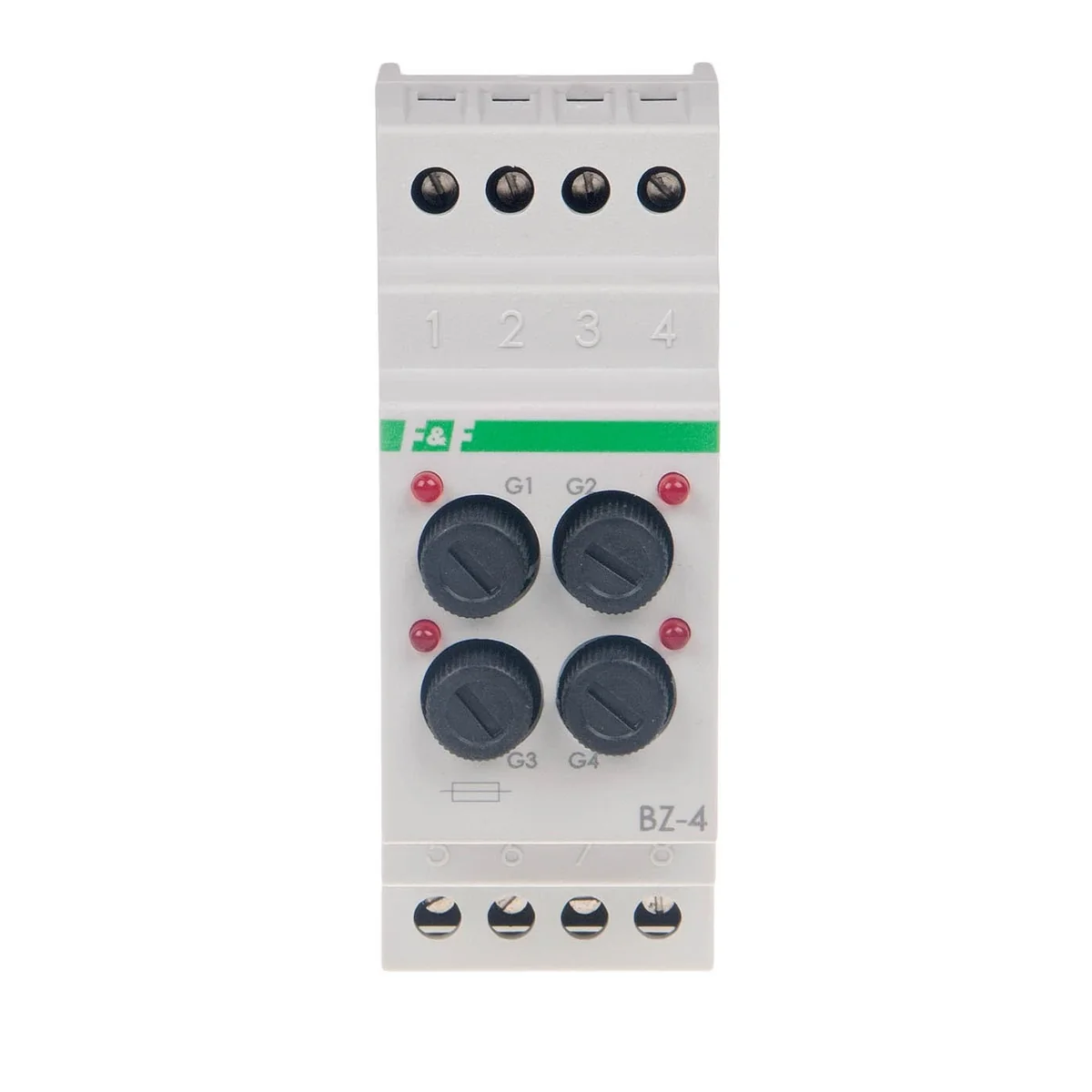

BZ-4 fuse module BZ-4

Lokaler Index:
API016FIFQ
Katalognummer:
BZ-4
EAN-Code:
5908312596264
Hersteller: F&F
Fuse: Fusible link 5×20mm
Installation: On the TH-35 rail
Rated voltage [V]: 230
Preis:
107,45 zł
gross / stk.
(inklusive MwSt 23%)
bis zu 2 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Intended use
The fuse module is used to protect electrical receivers against the effects of current increase above the rated current value of the protected receiver.
Operation
Fuse activation ( fuse-link burnout) is signaled by the red LED.

Technische Daten

  • Fuse
    Fusible link 5×20mm
  • Rated voltage [V]
    230
  • connection
    2.5mm screw terminals
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • PKWIU
    27.12.23.0
  • Installation
    On the TH-35 rail
  • Rated current [A]
    6.3
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.1

Weitere technische Daten

  • Type of fuse insert
    G-fuse 5x20 mm
  • Type of indication element for defect indication
    LED
  • Voltage type for defect indication
    AC/DC
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0 ... 2.5 mm²
  • Rated voltage
    230 V
  • Number of levels
    4
  • Material insulation body
    Thermoplastic
  • Width
    35 mm
  • Depth
    70 mm
  • Colour
    Grey
  • Type of fuse holder
    Screwable
  • Supply voltage for defect-indication
    160 ... 250 V
  • Connectable conductor cross section fine-strand without cable end sleeve
    0 ... 2.5 mm²
  • Connectable conductor cross section solid-core
    0 ... 4 mm²
  • Rated current In
    6.3 A
  • Type of electrical connection 1
    Screw connection
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -25 ... 50 °C
  • Height
    90 mm
  • Closing plate required
    No

Hersteller-Details

  • Hersteller
    F&F Filipowski S.K.
  • Adresse
    95-200 Pabianice Konstantynowska 79/81 Polska

Großpackungen

Eine Art Paket Sztuka
Menge 1 stk.
Gewicht (kg) 0,105
Breite (m) 0,041
Länge (m) 0,095
Tiefe (m) 0,070
