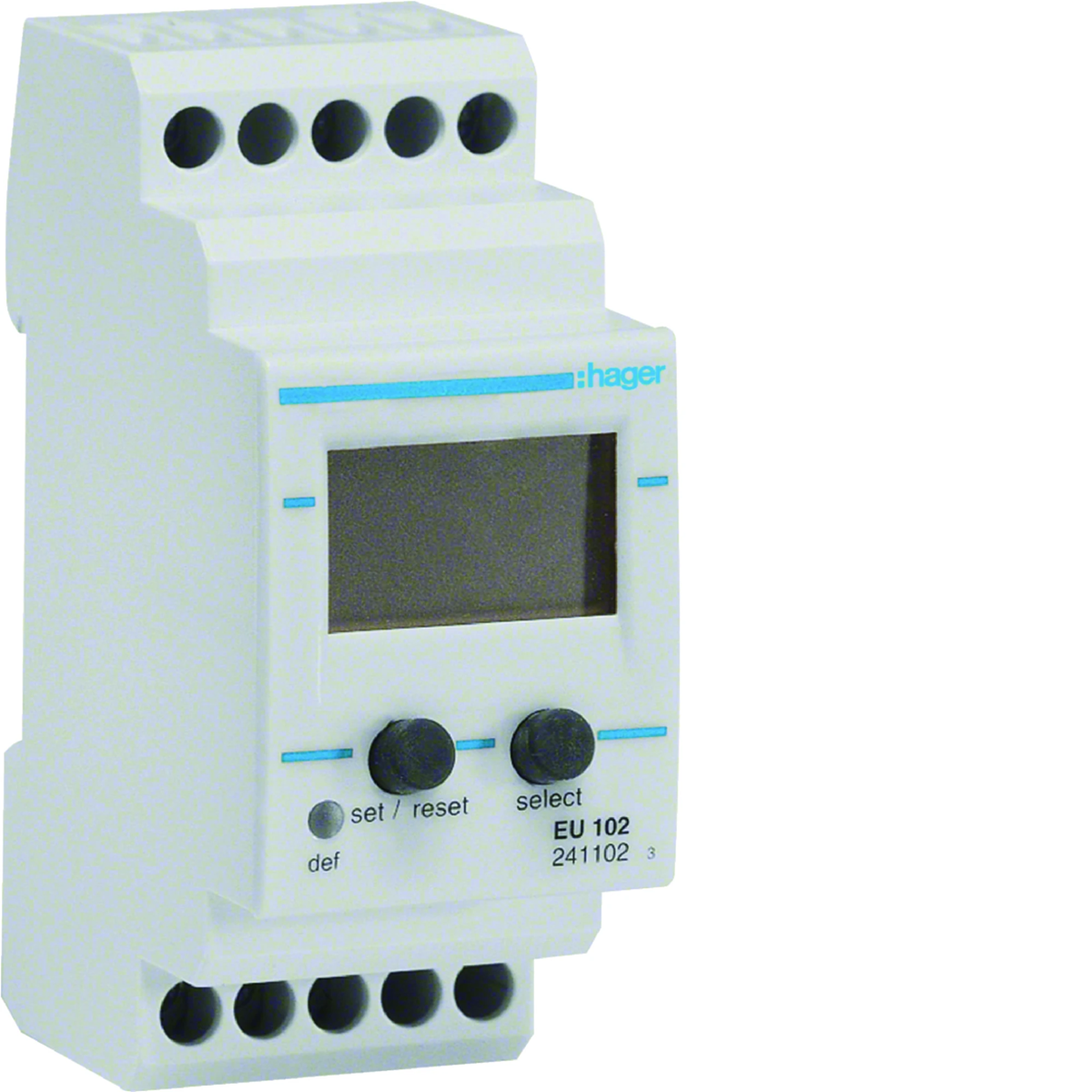

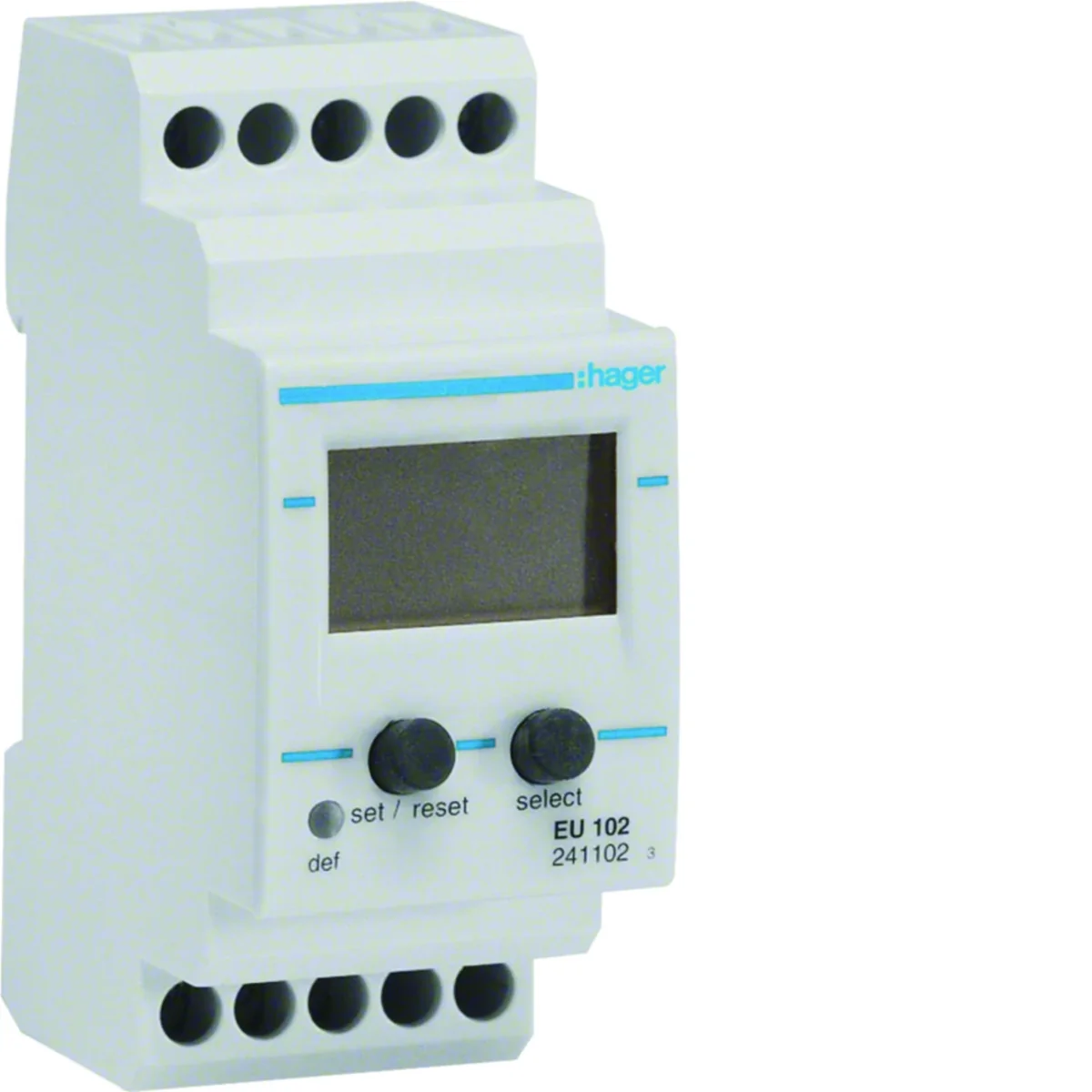

1-phase voltage control relay, LCD display EU102

local index:
API054HAGE
Catalog No:
EU102
EAN code:
3250612411023
Manufacturer: HAGER
Rated frequency [Hz]: 60
Length [mm]: 64
Depth [mm]: 60
Price:
197,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

1-phase voltage control relay, LCD display

Technical data

  • Rated frequency [Hz]
    60
  • Depth [mm]
    60
  • Supply voltage [V]
    3N, 400/230
  • Level of security
    IP30
  • Width [mm]
    35
  • Height [mm]
    85
  • Rated switching voltage [V]
    484
  • storage temperature [°C]
    from -40 to 70
  • Conductor cross-section (wire) [mm²]
    1.5 - 10
  • Length [mm]
    64
  • Installation
    On the TH-35 rail
  • Contact type
    1 switch
  • power loss [W]
    4
  • Connection type
    With a screw
  • Operating temperature range [°C]
    from -20 to 55
  • Number of modules
    2
  • Wire cross-section (cord) [mm²]
    1 - 6
  • PKWIU
    27.12.24.0

Other technical data

  • Rated frequency
    50 ... 60 Hz
  • Max. switching power
    5 VA
  • Voltage type
    AC
  • Built-in height
    60 mm
  • Indicated measuring range
    3N, 400/230V
  • Release delay
    1200000 ms
  • Width in number of modular spacings
    2
  • Degree of protection (IP)
    IP30

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,166 0,200 12,350 319,400
Width (m) 0,035 0,080 0,318 0,800
Length (m) 0,085 0,040 0,221 1,034
Depth (m) 0,064 0,100 0,369 1,200
