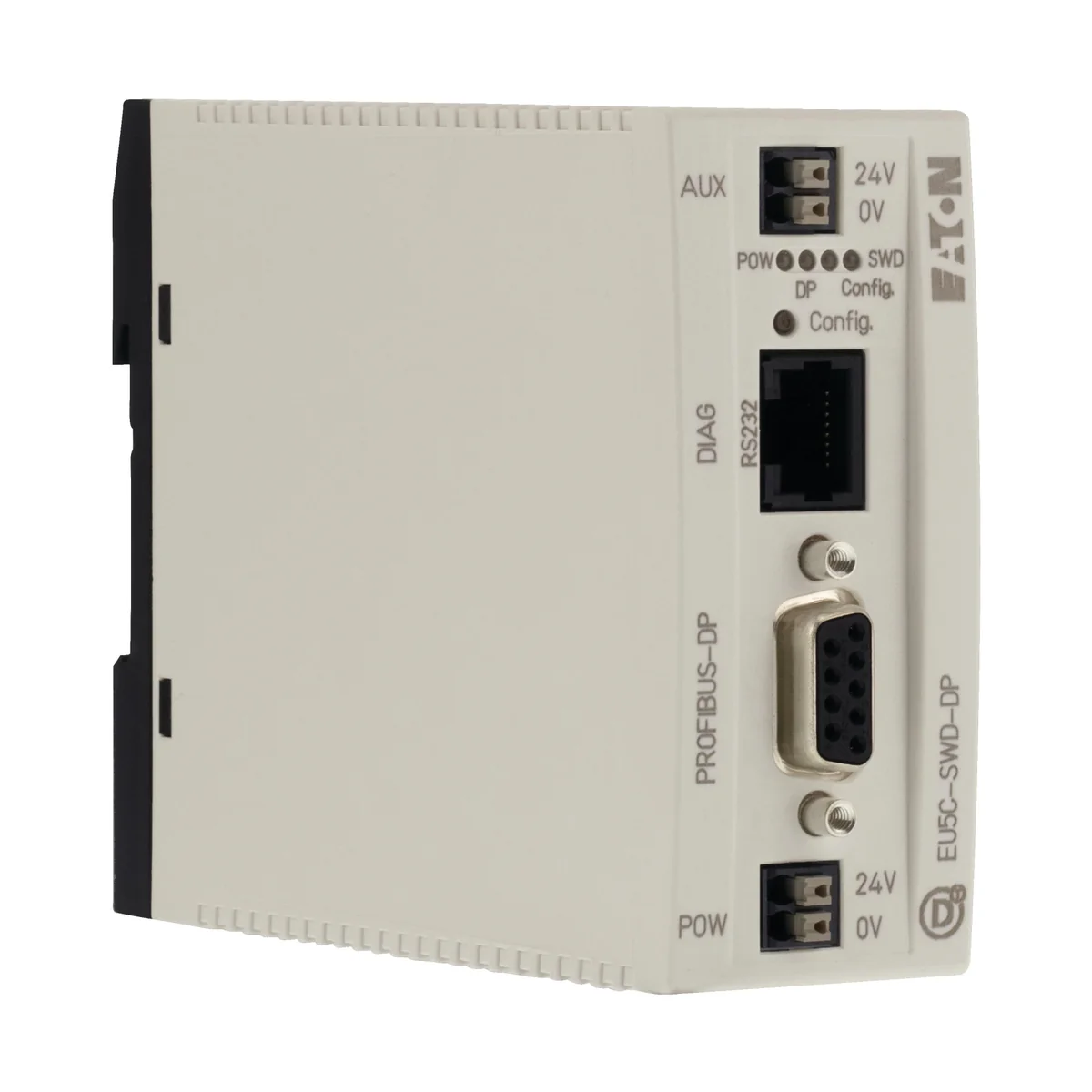

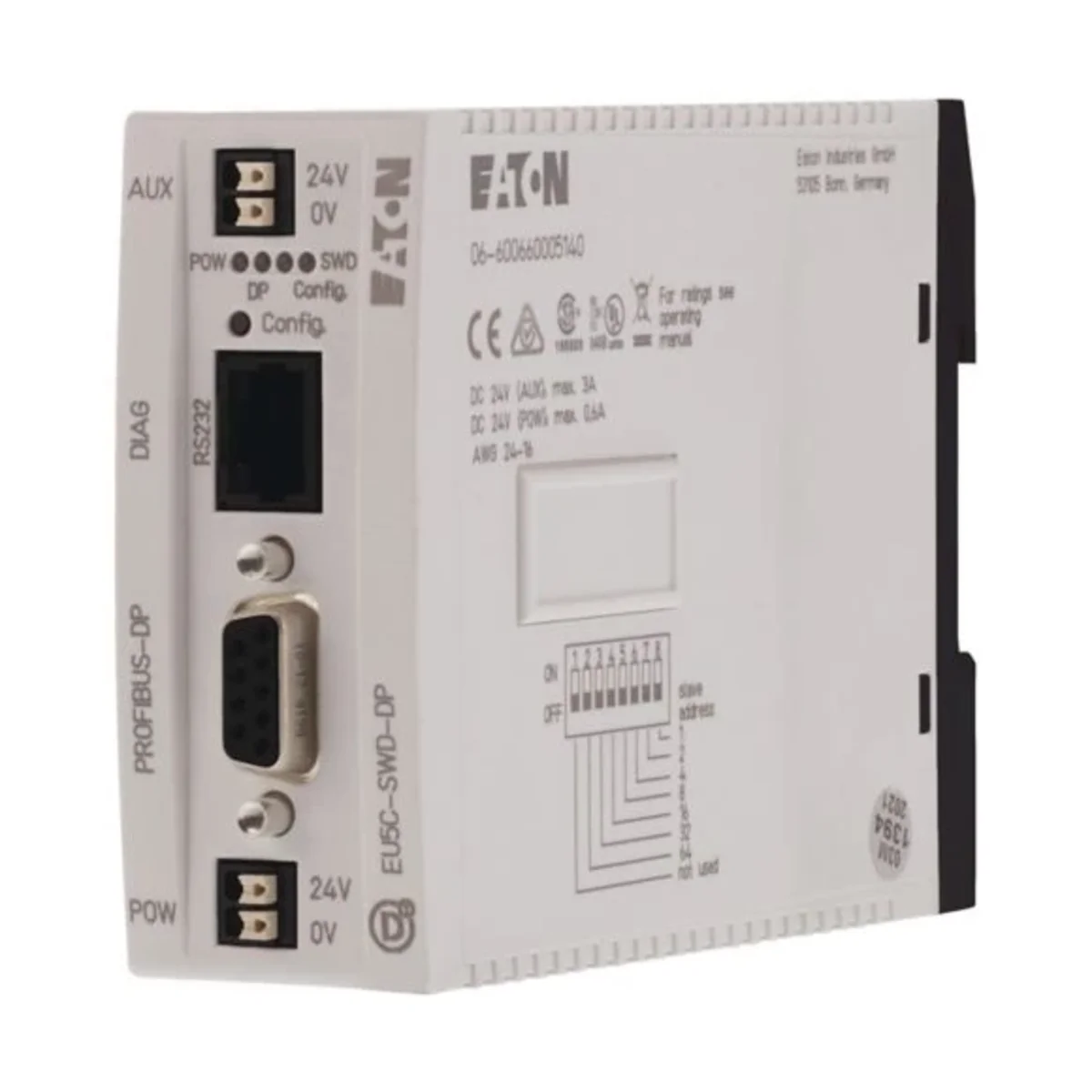

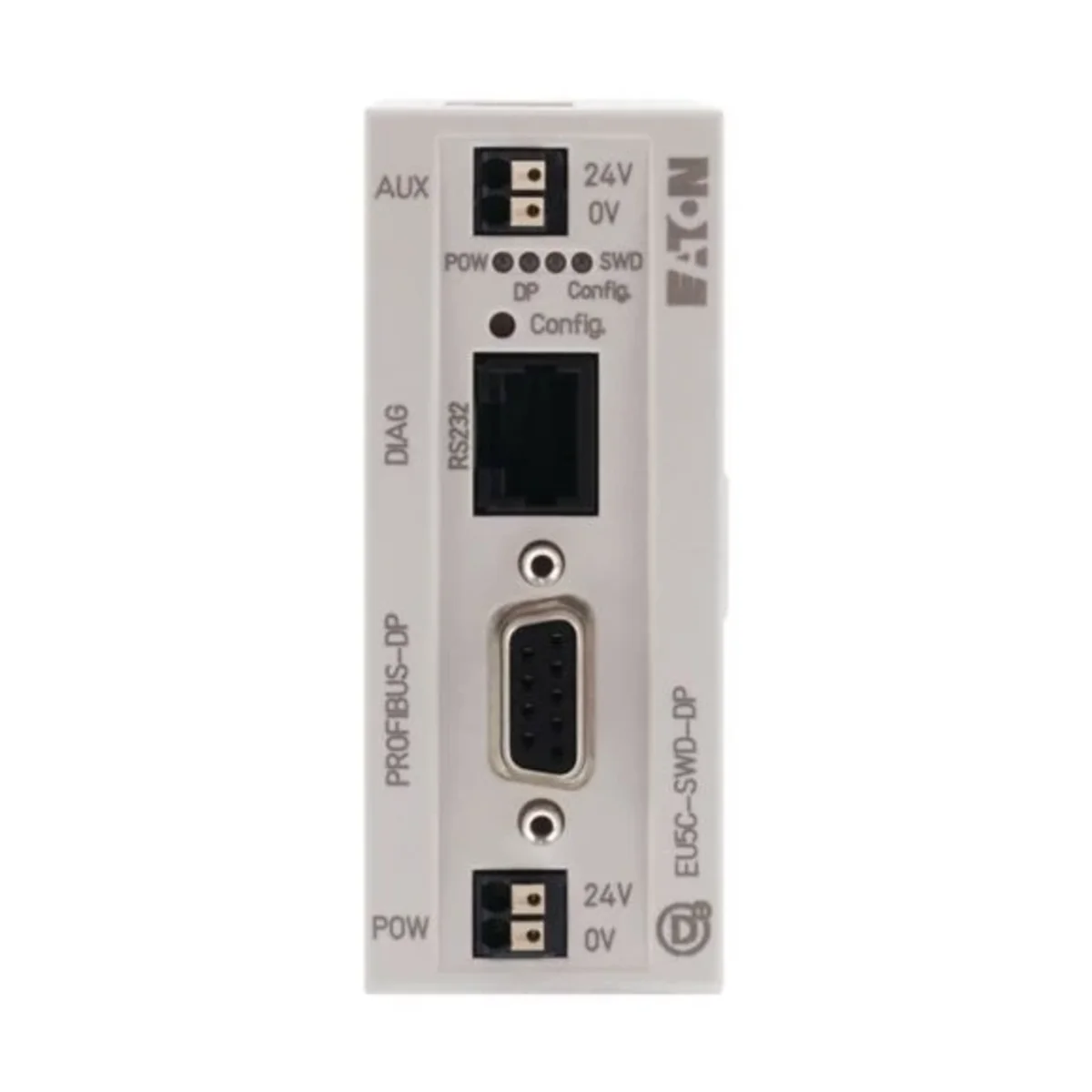

SmartWire-DT gateway to Profibus DP networks 116308

local index:
API159MOEL
Catalog No:
116308
EAN code:
4015081160488
Manufacturer: EATON
Level of security: IP20
Price:
613,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SmartWire-DT gateway for connection to the fieldbus and for supplying SmartWire-DT devices and switching devices. The connection to PROFIBUS-DP is via the 9-pin SUB-D socket as slave. Automatic recognition of data transmission speed from 9.6kBit/s to 12Mbit/s. The range of addresses can be set from 1-126. Up to 58 SmartWire-DT devices can be connected.

Technical data

  • Level of security
    IP20

Other technical data

  • Supply voltage AC 50 Hz
    0 ... 0 V
  • Supply voltage DC
    20.4 ... 28.8 V
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    Yes
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard GSM
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • With potential separation
    No
  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    Yes
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    None
  • Height
    90 mm
  • Supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type (supply voltage)
    DC
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Radio standard WLAN 802.11
    No
  • Radio standard eGPRS
    No
  • Radio standard LTE
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • Fieldbus connection over separate bus coupler possible
    No
  • Wall mounting/direct mounting
    Yes
  • Rack-assembly possible
    No
  • SIL according to IEC 61508
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    None
  • Width
    35 mm
  • Depth
    127 mm

Manufacturer details

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,157 0,208
Volume (m3) 0,000 0,001
Width (m) 0,035 0,057
Length (m) 0,127 0,151
Depth (m) 0,090 0,118
