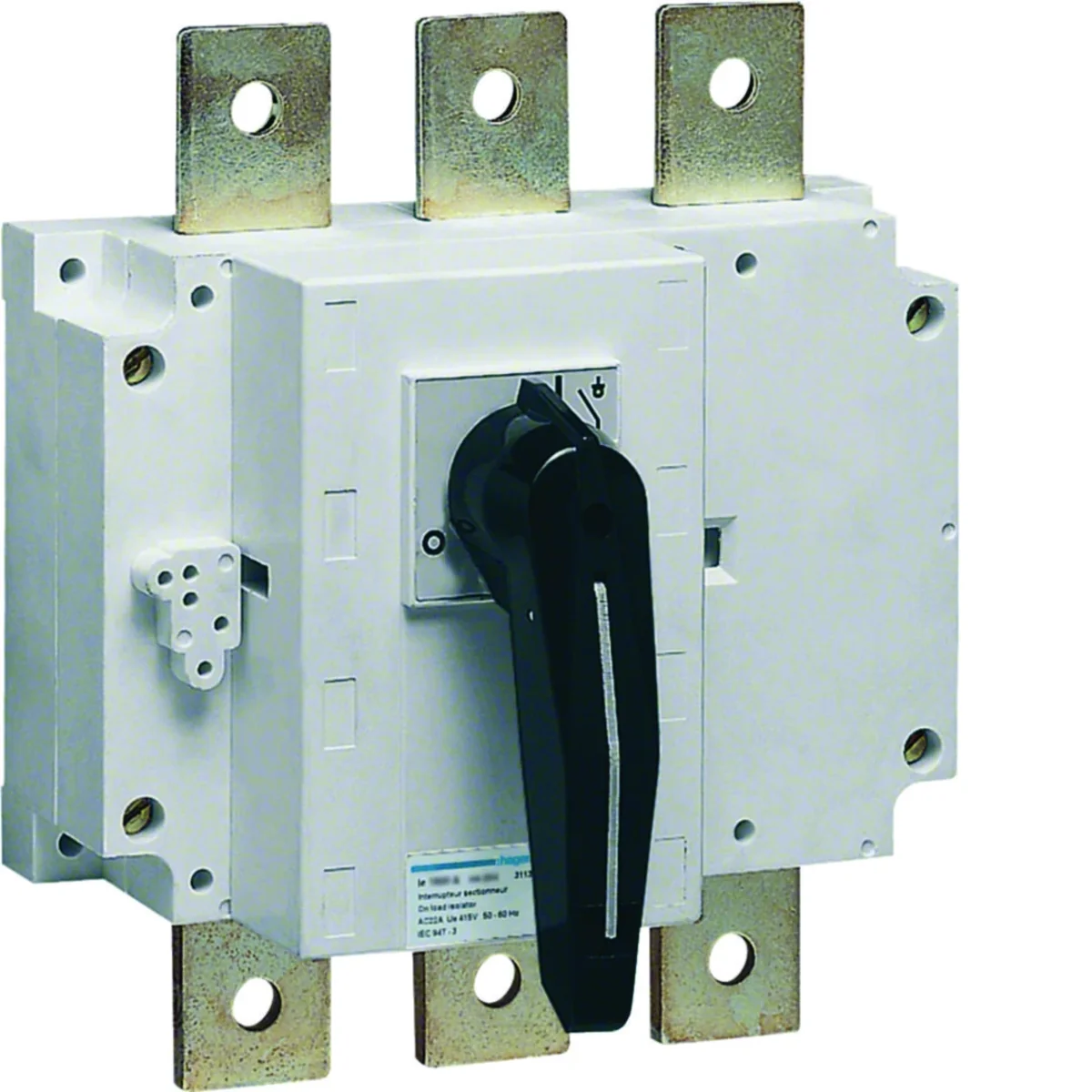

2000A three-pole load switch HA365

local index:
ALM054HAGE
Catalog No:
HA365
EAN code:
3250613113148
Manufacturer: HAGER
Number of poles: 3
Rated insulation voltage [V]: 1000
Rated current [A]: 2000
Price:
4143,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Isolating Load Switch. It is perfectly adapted to meet current requirements resulting from everyday electrical installation practice.

Current:

  • Current carrying capacity of AC21 in category A: 2000 A ,
  • Rated operational current (AC23), category A: 800 A,
  • AC21 current capacity, category B: 2000 A,
  • Allowable current load AC22 Category A: 800 A,
  • Allowable current load AC22 Category B: 800 A,
  • Rated operational current (AC23), Category B: 800 A,
  • Short-circuit current with gI-gG fuses: 100 kA,
  • Rated short-time withstand current Icw: 50 kA,
  • Rated short-time withstand current 1s: 50 kA.
  • Power:

    • Rated power below 660 V, 50 Hz.: 185 kW,
    • Active power below 380/415 V, 50 Hz: 450 kW,
    • Rated switching power for rated voltage 400V for AC1: 1316 kW,
    • Total power loss for rated current: 420 W,
    • < li> Power loss per pole for rated current: 140 W.

Technical data

  • Number of poles
    3
  • Rated current [A]
    2000
  • power loss [W]
    420
  • Connection type
    Vice
  • Rated switching voltage [V]
    380/415
  • Rated operational current [A]
    800
  • PKWIU
    27.12.22.0
  • Rated insulation voltage [V]
    1000
  • Level of security
    IP00
  • Power loss per pole [W]
    140
  • Mechanical durability (number of cycles)
    4000
  • Rated surge voltage [V]
    8000
  • Conductor cross-section (wire) [mm²]
    2 x 300

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    415 V
  • Rated permanent current Iu
    2000 A
  • Rated permanent current at AC-21, 400 V
    2000 A
  • Rated operation power at AC-23, 400 V
    720 kW
  • Conditioned rated short-circuit current Iq
    100 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Black
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP00
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    No
  • Number of switches
    1
  • Rated operating voltage
    380 ... 415 V
  • Rated permanent current at AC-23, 400 V
    800 A
  • Rated short-time withstand current lcw
    50 kA
  • Switching power at 400 V
    1316 kW
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Long turning handle
  • Type of electrical connection of main circuit
    Cable clamp

Bulk packaging

A kind of package Karton
Quantity 1 pcs. 1 pcs.
Weight (kg) 30,999 31,000
Width (m) 0,380 0,600
Length (m) 0,226 0,520
Depth (m) 0,372 0,800
