W.1 Universal connector IP55 white 6130763512

Name: W.1 Universal connector IP55 white
Brand: BERKER
SKU: MMS001BERK
Price: 13.35 PLN

local index:

MMS001BERK

Catalog No:

6130763512

EAN code:

4011334390145

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 42

Number of keys: 1

Color: White

See full description

Price:

13,35 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

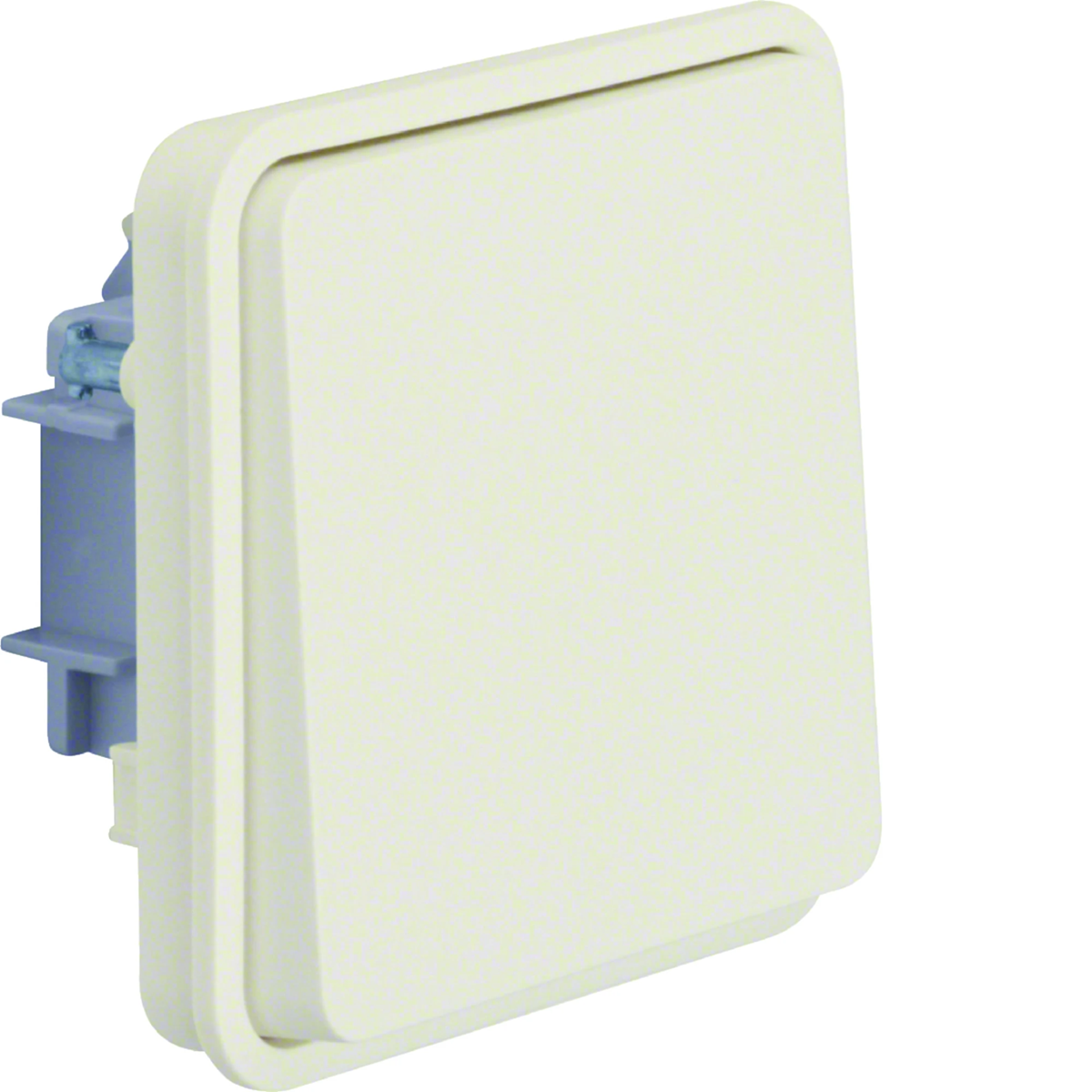

Universal stair switch from the W.1 series, from the manufacturer Berker. The product catalog number is 6130763512.

FEATURES

For screw connection.
Quick release pins made of ZAMAK.
With plug-in terminals.
Mechanisms achieve IP55 protection only when assembled with surface-mounted housing or flush-mounted frame.

SERIES DESCRIPTION

Berker W.1 is a series waterproof electrical installation equipment, which is distinguished by its innovative appearance. The stair switch characterizes the features of this unique series.

Technical data

Depth [mm]

42
Color

White
Material

Plastic
Rated voltage [V]

230
Type

stairs
Level of security

IP55
Type

Recessed Surface-mounted
Surface finish

matte
Terminal type

Threadless
PKWIU

27.33.11.0

Number of keys

1
Shape

Square
Installation

Recessed Surface-mounted
Rated current [A]

10
Family

W.1
Width [mm]

70
Height [mm]

70
Backlight

NO
Exact material

Thermoplastic

Other technical data

Wiring system

Two-way switch
Assembly arrangement

Control element
Mounting method

Surface mounted
With mounting plate

No
Material quality

Thermoplastic
Surface finishing

Matt
RAL-number (similar)

9010
Suitable for degree of protection (IP)

IP55
Rated current

10 A
Feedback-signal contact

No
Device width

70 mm
Device depth

42 mm

Method of operation

Rocker/button
Number of rockers

1
Type of fastening

Screw mounting
Material

Plastic
Surface protection

Untreated
Colour

White
Label space/information surface

No
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Device height

70 mm
Built-in depth

12 mm

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,033	0,075	3,140	125,480
Width (m)	0,071	0,081	0,300	0,800
Length (m)	0,042	0,070	0,225	1,050
Depth (m)	0,071	0,081	0,400	1,200
