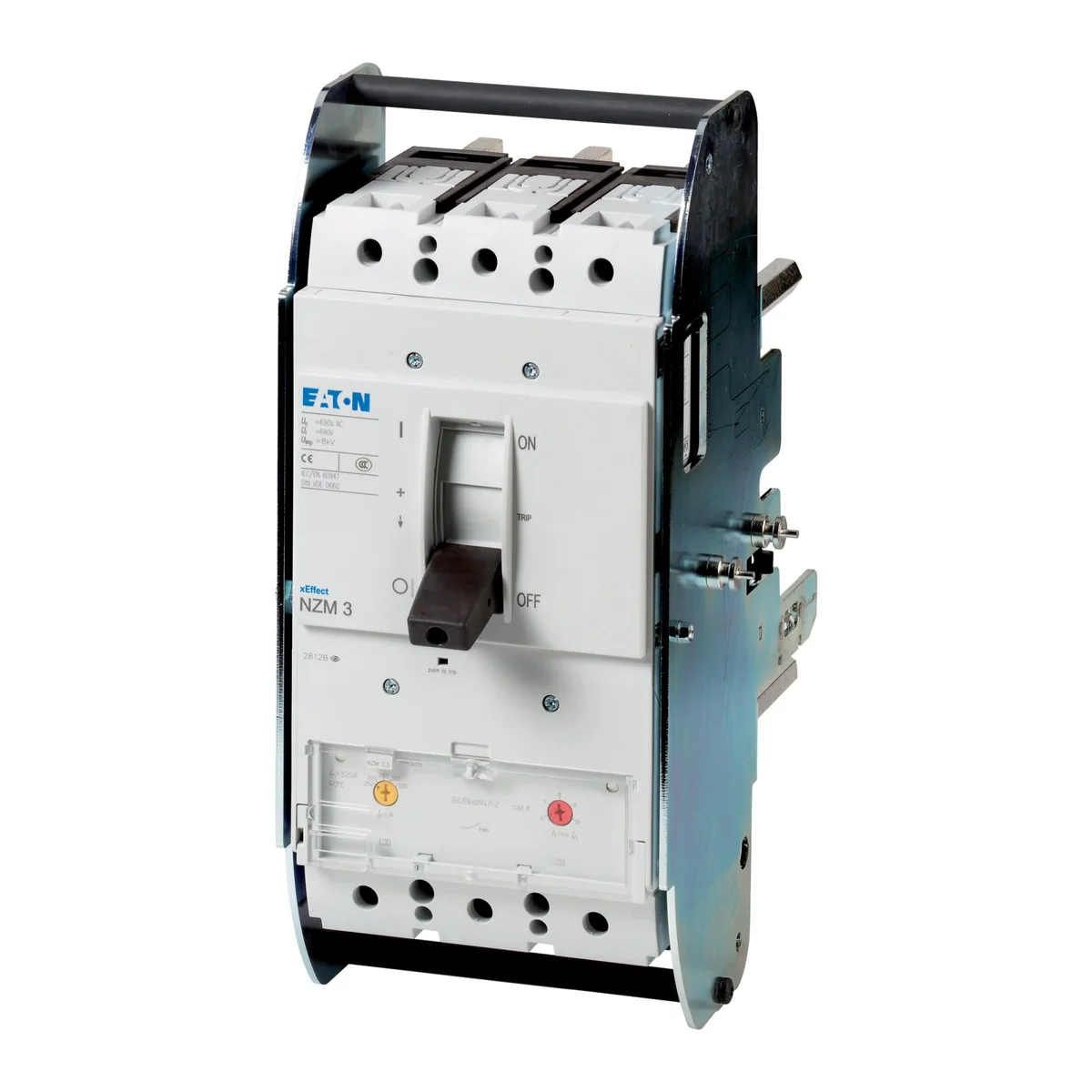

Circuit breaker, 3-pole, 320A, 50kA, installation and cable protection, plug-in 110858
local index:
ALM084MOEL
Catalog No:
110858
EAN code:
4015081103874
Price:
1916,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The circuit breakers of the NZM..-A series are suitable for all applications in the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect installations and cables.
Technical data
-
Number of poles3
-
Rated current [A]320
-
Switching capacity [kA]50
-
InstallationEject technique
-
SeriesProtection of installations and cables
Other technical data
-
Rated permanent current Iu320 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device slide-in technique (withdrawable)
-
DIN rail (top hat rail) mounting optionalNo
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Number of poles3
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
-
Rated voltage690 ... 690 V
-
Overload release current setting250 ... 320 A
-
Adjustment range undelayed short-circuit release1920 ... 3200 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
With integrated under voltage releaseNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 16,800 | 16,800 |
| Volume (m3) | 0,017 | 0,017 |
| Width (m) | 0,185 | 0,185 |
| Length (m) | 0,260 | 0,260 |
| Depth (m) | 0,346 | 0,346 |
