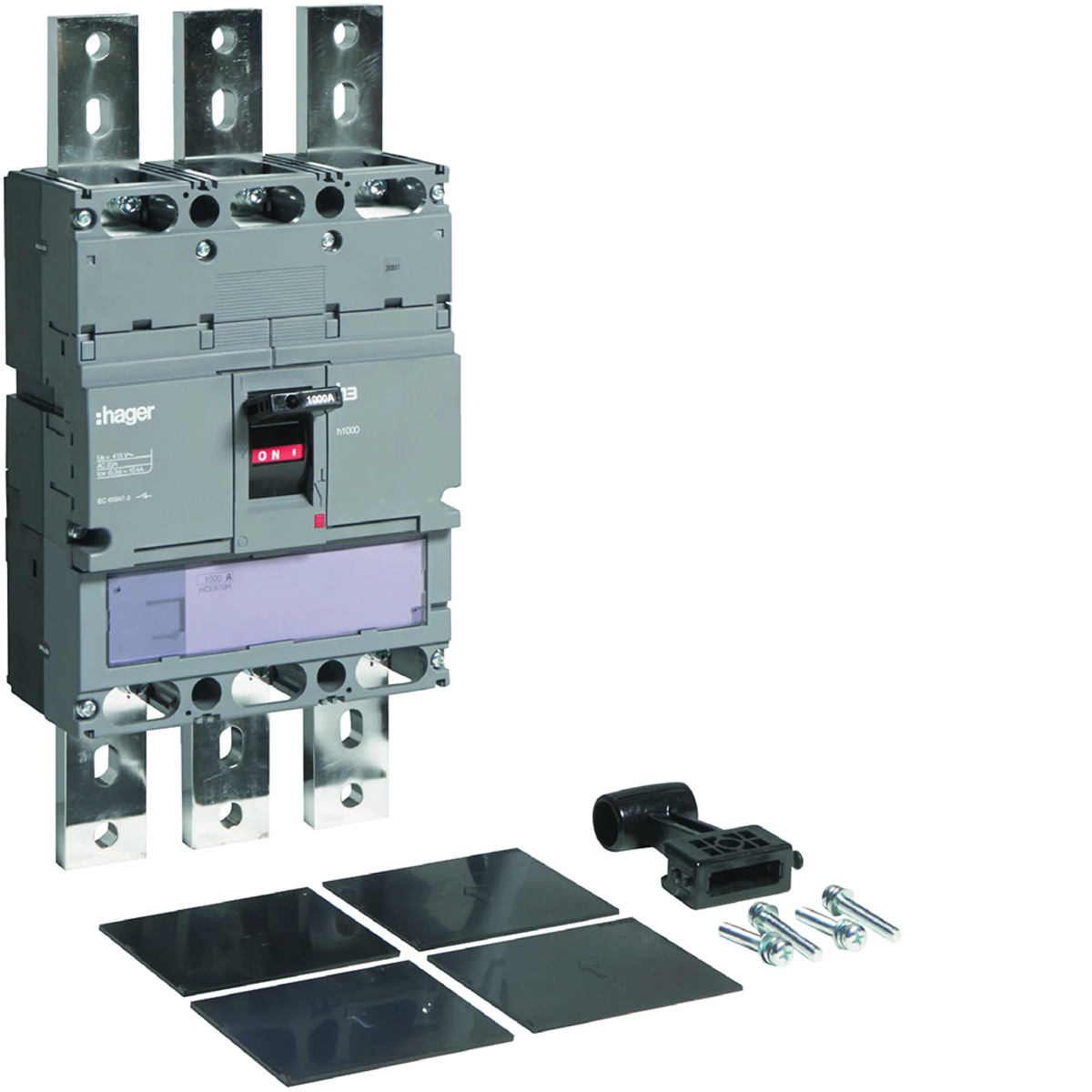

Load switch h1000 3P 1000A

Click on the photo to enlarge

Load switch h1000 3P 1000A
HAGER

Load switch h1000 3P 1000A HCE970H

local index:
ALM066HAGE
Catalog No:
HCE970H
EAN code:
3250613363192
Price:
1744,67 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,70 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Load disconnector is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities. Switch size h1000.

Print the product sheet Report an error

Technical data

  • Rated frequency [Hz]
    60
  • Tightening torque [Nm]
    65
  • Rated current [A]
    1000
  • power loss [W]
    186
  • Connection type
    Vice
  • Mechanical durability (number of cycles)
    15000
  • Rated switching voltage [V]
    220/690
  • storage temperature [°C]
    from -35 to 70
  • Rated current correction factor for 3 devices installed side by side
    1
  • Wire cross-section (cord) [mm²]
    2 x 240
  • Number of poles
    3
  • Rated insulation voltage [V]
    800
  • Level of security
    IP4X
  • Power loss per pole [W]
    62
  • Electrical endurance (number of cycles)
    4500
  • Operating temperature range [°C]
    from -25 to 70
  • Reaction time when opening [ms]
    10
  • Rated current correction factor for 2 devices installed side by side
    1
  • Rated surge voltage [V]
    8000
  • Conductor cross-section (wire) [mm²]
    2 x 240

Other technical data

  • Version as main switch
    yes
  • Version as safety switch
    yes
  • Version as reversing switch
    no
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    1000 A
  • Rated short-time withstand current lcw
    10 kA
  • Switching power at 400 V
    658 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    no
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    no
  • Suitable for distribution board installation
    yes
  • Colour control element
    Black
  • Interlockable
    yes
  • Degree of protection (IP), front side
    IP40
  • Version as maintenance-/service switch
    yes
  • Version as emergency stop installation
    no
  • Number of switches
    1
  • Rated operating voltage
    220 ... 690 V
  • Rated permanent current at AC-21, 400 V
    1000 A
  • Rated operation power at AC-23, 400 V
    450 kW
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    yes
  • Voltage release optional
    yes
  • Suitable for floor mounting
    yes
  • Suitable for front mounting centre
    no
  • Suitable for intermediate mounting
    no
  • Type of control element
    Toggle
  • Type of electrical connection of main circuit
    Cable clamp
  • Degree of protection (NEMA)
    Other
