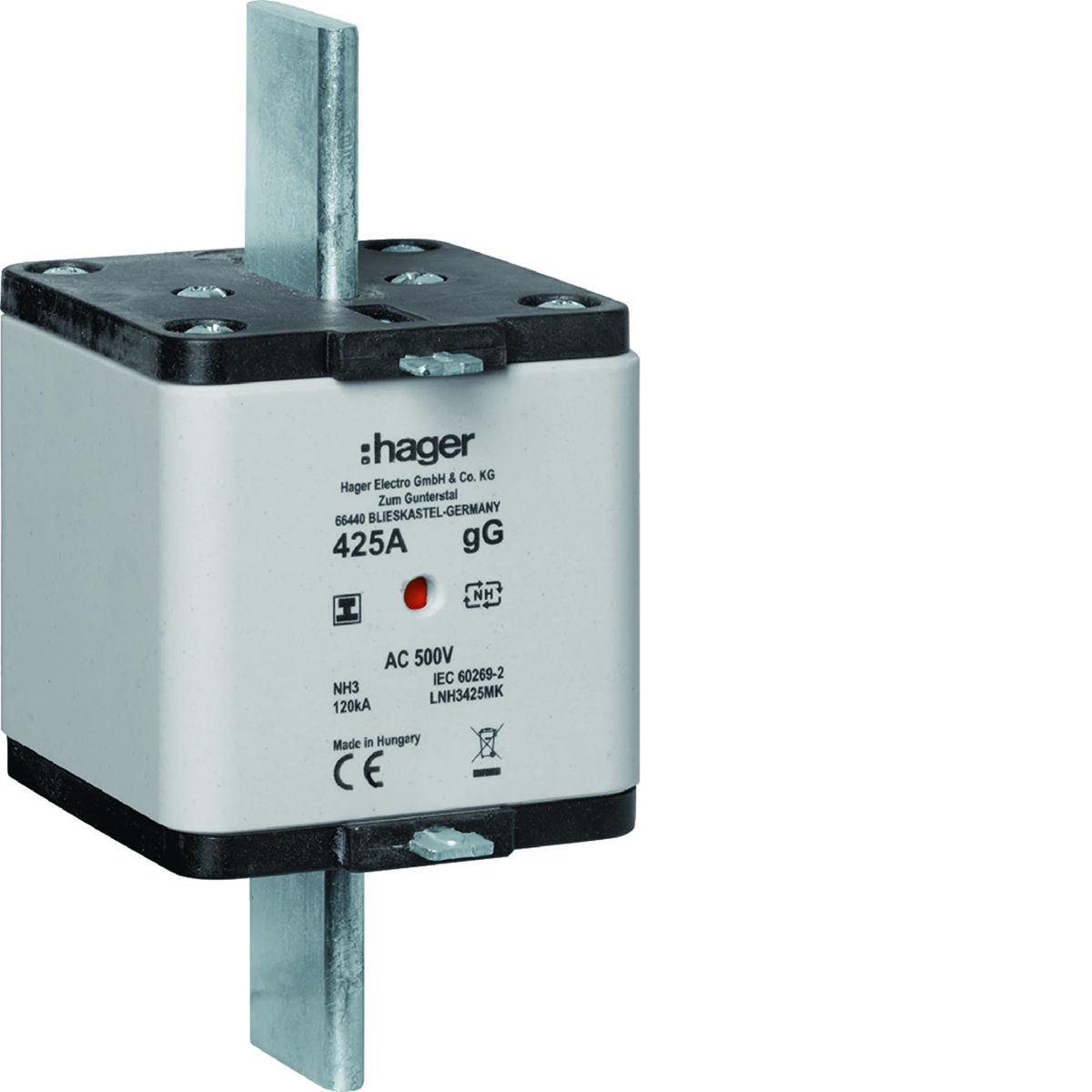

Knife fuse link NH3 gG with center indicator insulated holder 425A 500V LNH3425MK

local index:
ABI546HAGE
Catalog No:
LNH3425MK
EAN code:
3250614122941
Manufacturer: HAGER
Characteristic: gG
Length [mm]: 80
DC operating voltage [V]: 0/500/550
Price:
42,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

425A blade fuse link:

  • double indicator,
  • insulated handle,
  • fuse characteristics: gG.

Technical data

  • Characteristic
    gG
  • DC operating voltage [V]
    0/500/550
  • power loss [W]
    39
  • Fuse link size
    NH3
  • Rated switching voltage [V]
    0/500/550
  • PKWIU
    27.12.21.0
  • Length [mm]
    80
  • Rated current [A]
    425
  • Width [mm]
    66
  • Height [mm]
    150
  • Rated short-circuit breaking capacity Icn [kA]
    120

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    425 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Insulated metal gripping lugs (IMGL)
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 7 pcs. 224 pcs.
Weight (kg) 0,964 1,035 7,645 267,640
Width (m) 0,066 0,095 0,315 0,800
Length (m) 0,150 0,075 0,215 1,500
Depth (m) 0,080 0,160 0,360 1,200
