One side powered heating mat 150W/m2 TYPE: MOJ-60 MTC10000351-WUN

Product description

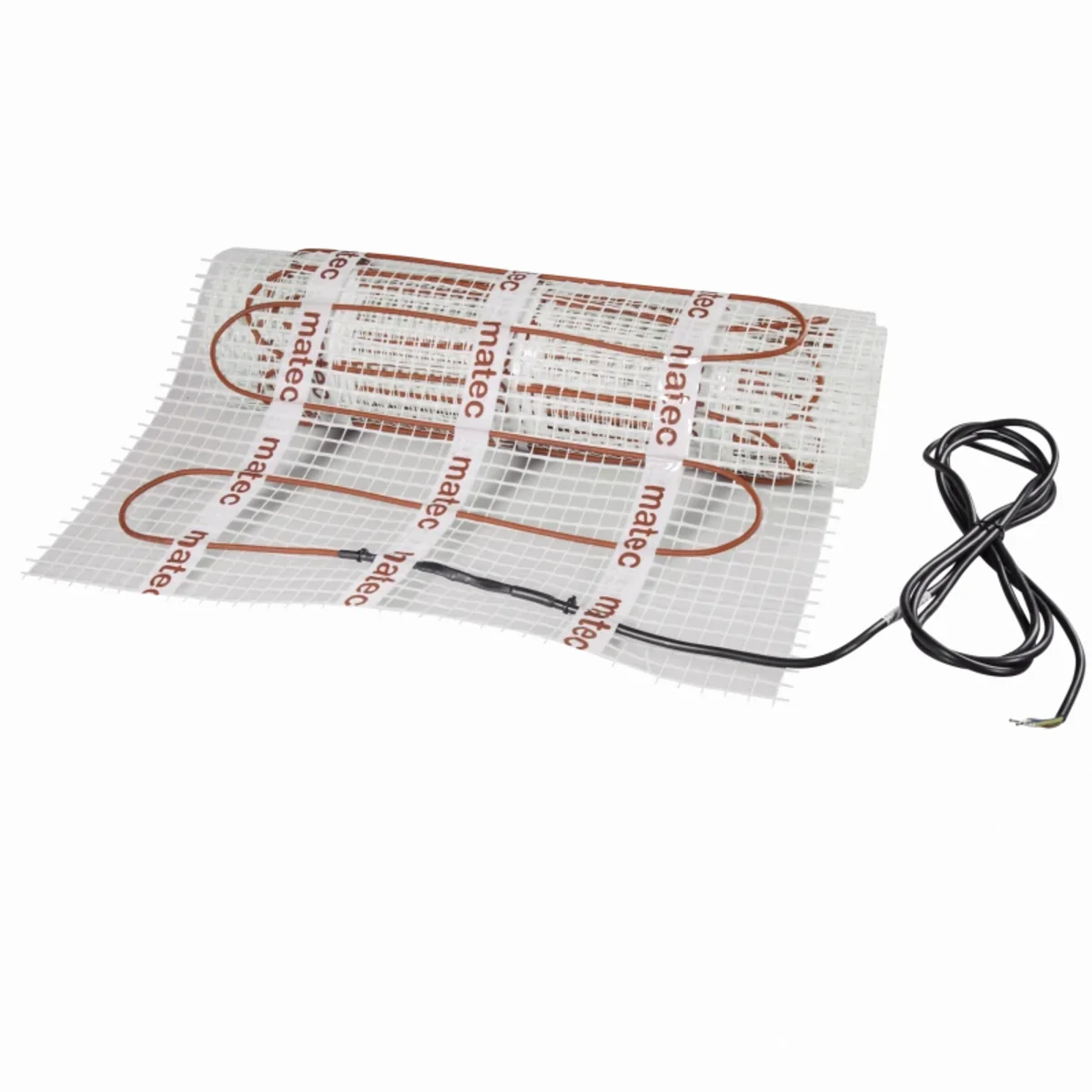

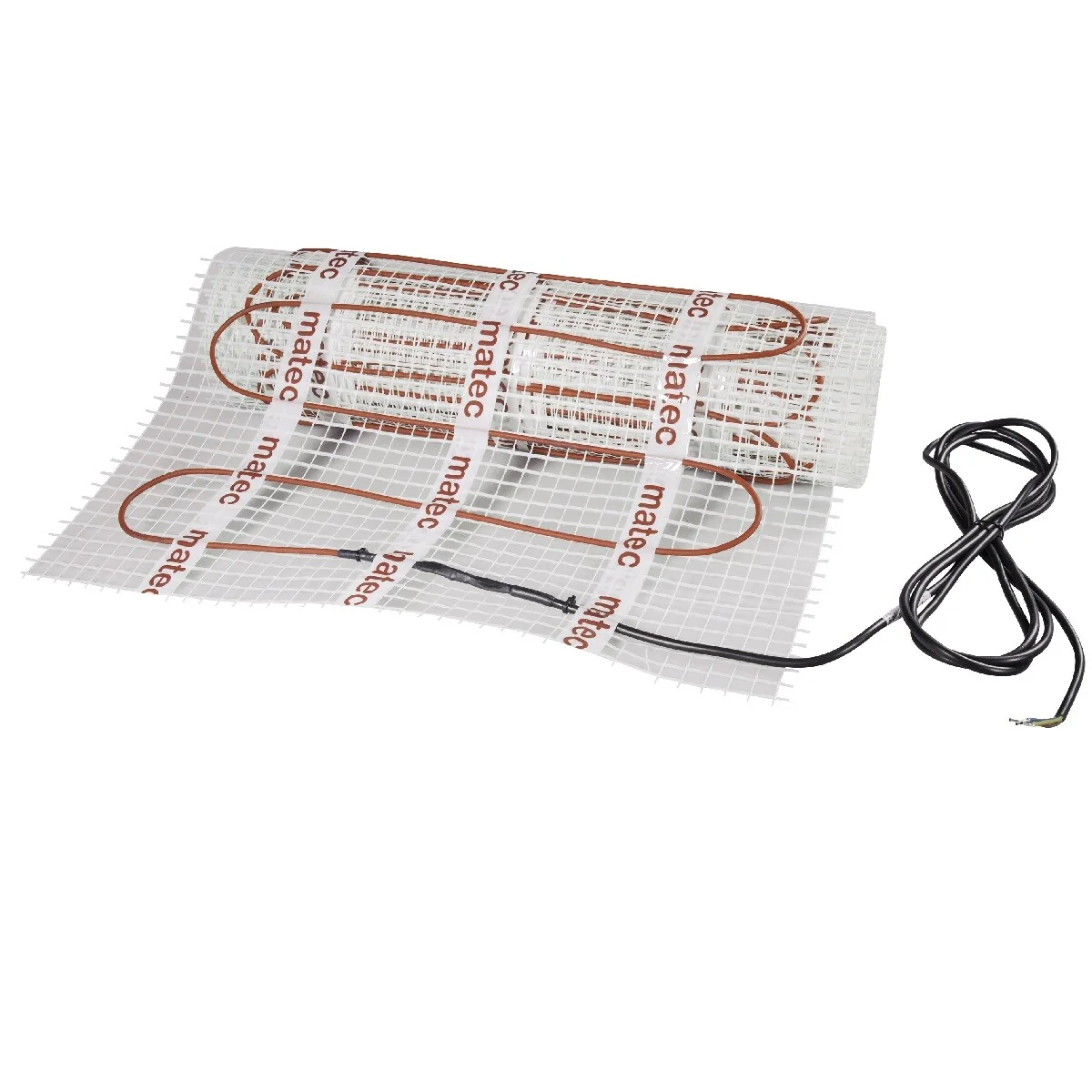

Heating mat for thin concrete screeds with an area of 6 m2. Used under surfaces made of ceramic and stone tiles, etc. One-sided power supply with H03VV-F 3G 0.75mm2 cable. Heating with a two-wire constant resistance cable. The set includes a protective conduit for the probe cable and a deepened electrical box fi 60.

Functional features of the product

• Electric thin-layer underfloor heating
• Optimum heating power 150 W/m2
• Electric box fi 60 for the temperature controller included
• Protective conduit for the probe cable included

Technical data

• Width 500mm
• Application Thin-layer floor heating
• Power< span class="productDataValue normalLabel"> 150 W/m²
• Thickness 4.48 mm
• Self-adhesive No
• Suitable for wet roomsYes
• Surface 6,000 m²
• With room thermostatNo < /span>
• Length12000 mm< /li>
• With support gridYes
• Heating cable fixing Glued
• Number of cold leads 1
• Length of cold leads 3000,000 mm
• With regulator No
• Connection voltage230V
• Connection power900/900 W
• With floor temperature sensor No
