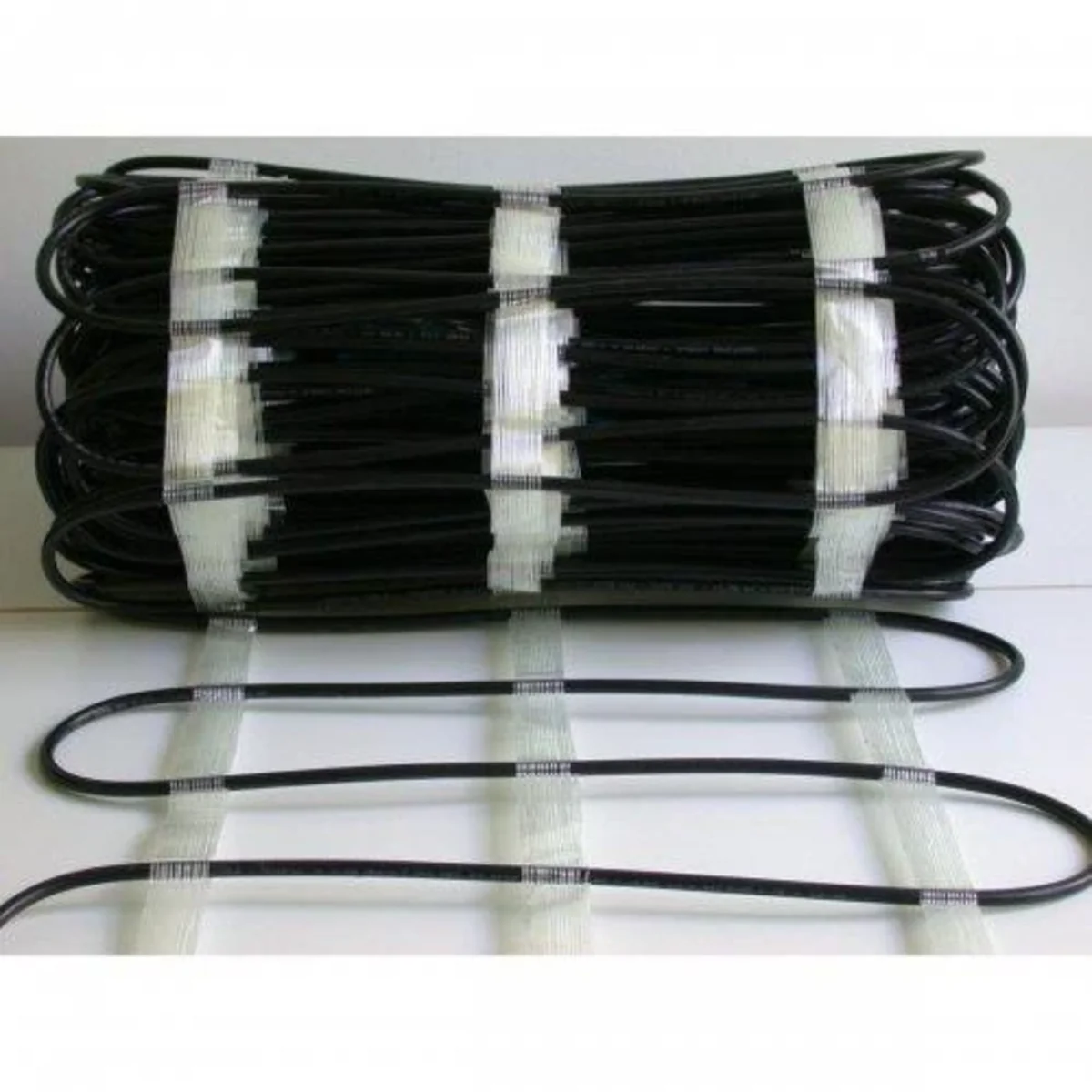

RAMP MAT - anti-icing mat 1050 W 23ADPSV 300/3,5-0,5

local index:
GGM045FENI
Catalog No:
23ADPSV 300/3,5-0,5
EAN code:
8590875033545
Length [m]: 5
Minimum installation temperature [°C]: -5
Power [W]: 1050
Price:
106,79 €
gross / pcs.
(including VAT 23%)
21,36 € gross/m.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Simple and quick installation
Fast warming up of the driveway thanks to the high power density of 300 W/m²
The width of the mat 0.5 m
High mechanical resistance of the heating element in the mat – mechanical classification M2
Heating element heat resistance up to 90°C
Double insulation of heating wires made of TEFLON and additionally made of XLPE polyethylene
Installation directly in sand bed or concrete
One-sided power supply facilitates installation of the mat
The mat's heating cable is shielded along its entire length
Wide range of the offer – for areas from 0.9 m² up to 13.3m² – powered by 230V; from 6.7 m² up to 25.7 m² – powered by 400V

Technical data

  • Length [m]
    5
  • Power [W]
    1050
  • Dimensions [m]
    7.0 x 0.5
  • PKWIU
    27.51.29.0
  • Minimum installation temperature [°C]
    -5
  • Heating power
    300W/m2
  • Temperature resistance of the heating element
    from -30°C to +90°C

Manufacturer details

  • Manufacturer
    FENIX POLSKA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
  • Address
    05-092 UL. WARSZAWSKA 50 /
  • Tax identification number
    5252100241
