One side powered heating mat 150W/m2 TYPE: MOJ-105 MTC10000354-WUN

Product description

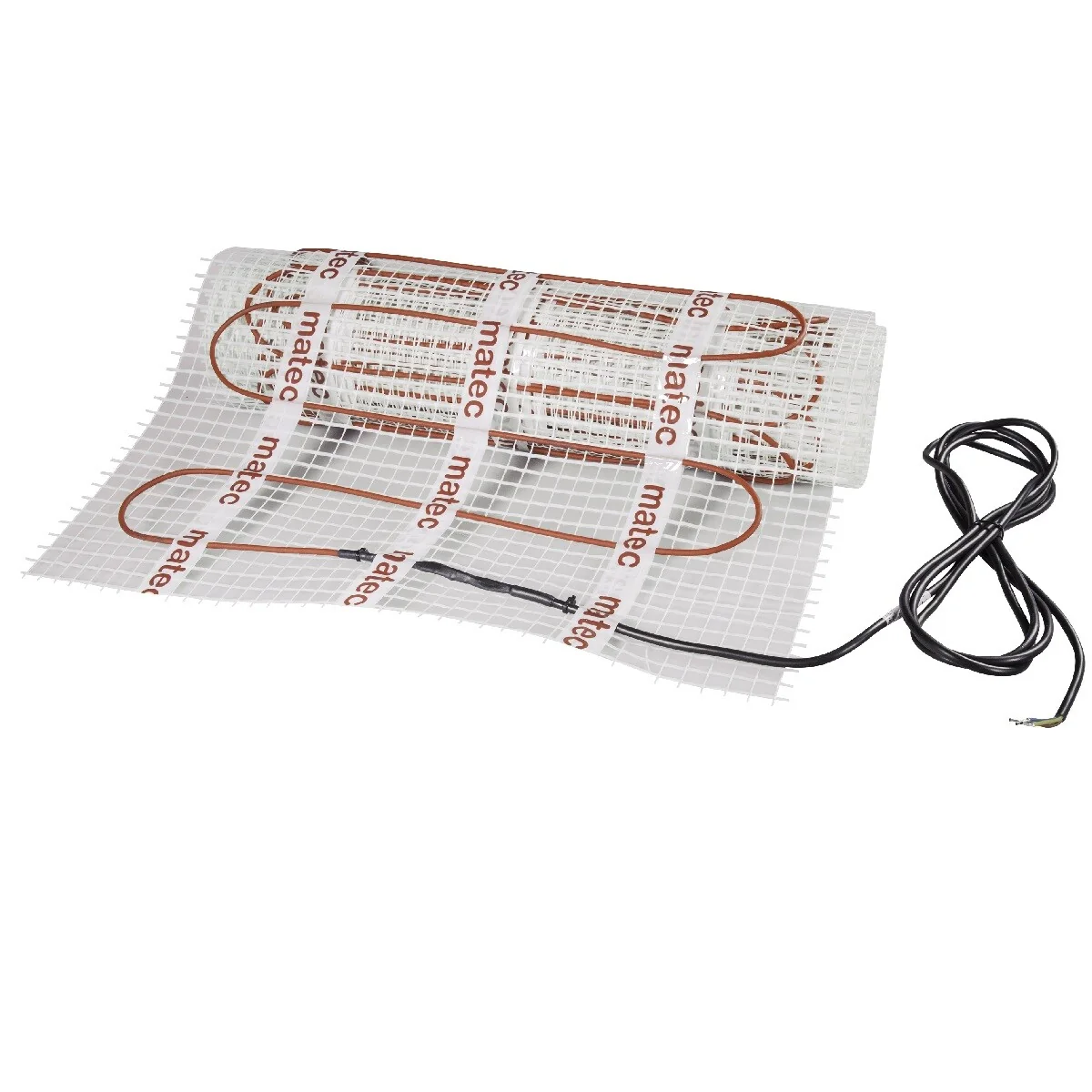

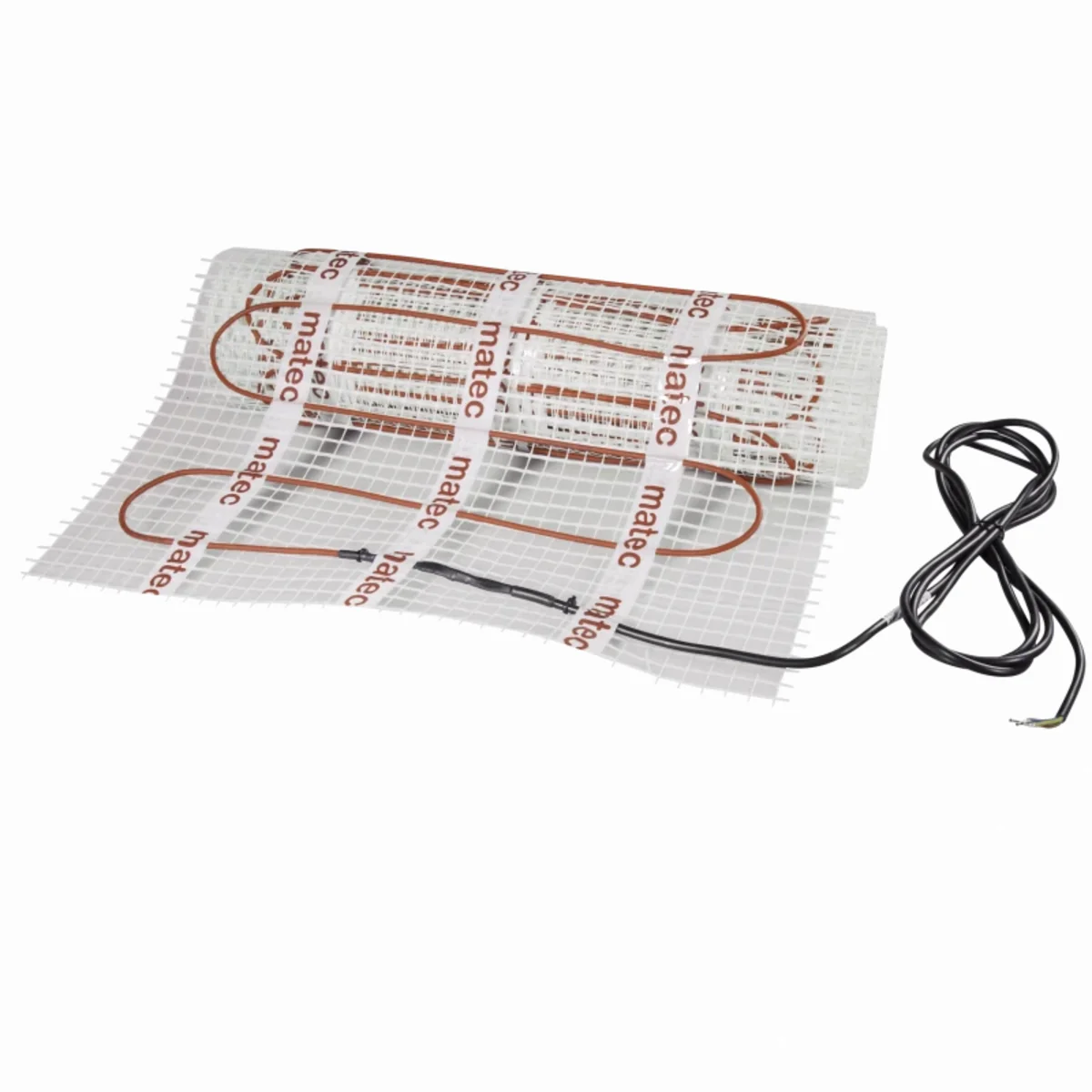

Heating mat for thin concrete screeds with an area of 10.5 m2. Used under surfaces made of ceramic and stone tiles, etc. One-sided power supply with H03VV-F 3G 0.75mm2 cable. Heating with a two-wire constant resistance cable. The set includes a protective conduit for the probe cable and a deepened electrical box fi 60.

Functional features of the product

• Electric thin-layer underfloor heating
• Optimum heating power 150 W/m2
• Electric box fi 60 for the temperature controller included
• Protective conduit for the probe cable included

Technical data

• Width 500 mm
• Application Thin-layer floor heating
• Power< span class="productDataValue normalLabel"> 150 W/m²
• Thickness 4.48mm
• Self-adhesive No
• Suitable for wet rooms Yes
• Surface 10 .5 m²
• Length 21,000 mm
• With support grid Yes
• Heating cable fixing Glued
• Number of cold leads 1
• Length of cold leads 3000 mm
• With regulator No
• Connection voltage 230 V
• Connection power 1575/1575 W
• With floor temperature sensorNo
